Prepare the Opening

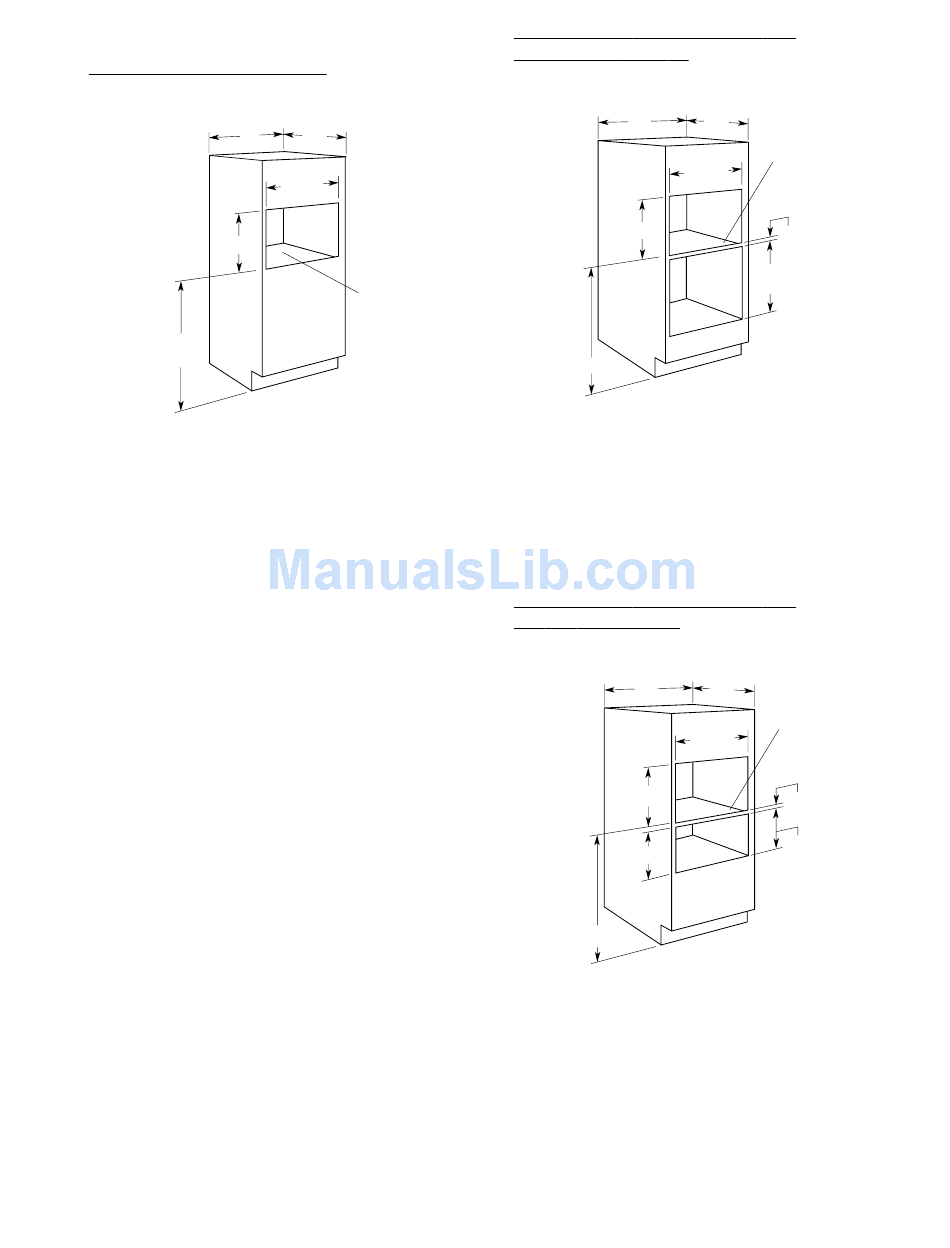

Single Speedcook Installation
30"
21"
36-3/4" Min.
Required
Order a 30-in. wide single oven cabinet or cut the
opening in a wall to dimensions shown.
The rough opening must be:
• Depth - 19 in. min.
• Width - 28-1/2 in. min.
• Height - 21 in. min.
• 36-3/4 in. from the floor to the cutout is
required.
• These ovens require 3/4-in. overlap on each
side, top, and bottom of the cutout.
• Oven overlaps will conceal cut edges on all
sides of the opening.
When installed over a single oven or a warming
drawer, allow at least 2 in. between the two
openings. This separation will provide clearance
for bottom overlap of the speedcook oven and top
overlap of the single oven or warming drawer.
• Construct a solid oven floor of 3/8-in. min. thick
plywood supported by 2 x 4 or 1 x 2 runners
on all sides.
• The support must be level and rigidly
mounted, flush with the bottom edge of the
cutout.
WARNING: For personal safety, the mounting
surface must be capable of supporting the cabinet
load, in addition to the added weight of this
approximately 100-lb. product plus additional oven
loads of up to 50 lb., or a total weight of 150 lb.
19"
Min
28-1/2"
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides
GEA00356
Speedcook Oven Installed Above a
GE Built-In Wall Oven
30"
21"
*45-1/4"
* If you are replacing a GE electric double oven with the
combined installation of a speedcook and single wall oven,
use the dimensions shown. The middle rail separating the two
openings may need to be larger than the 2 in. min. shown.
• Always maintain 36-3/4 in. min. distance from
the floor to the speedcook oven cutout in any
installation combination.
Speedcook Oven Installed Above a
GE Warming Drawer
30"
21"
9-1/4"
36-3/4" Min.
Note: Additional clearance between the cutouts may be
required. Check to be sure the oven supports above the
warming drawer location do not obstruct the required interior
23-1/2 in. depth and 9-1/4 in. height. See Installation
Instructions for details.
– 5 –
24"
Construct Solid
Min.
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 1 x 2
28-1/2"
Runners, all
Four Sides
2" Min.
Per Oven
Requirement
GEA00357
24"
Construct Solid
Min.
Bottom Min. 3/8"
Plywood
Supported by
28-1/2"
2 x 4 or 1 x 2
Runners, all
Four Sides
2" Min.
Install 2 x 4
or 2 x 2
Runners or
Solid Bottom,
Must Support
100 lbs.
GEA00358
