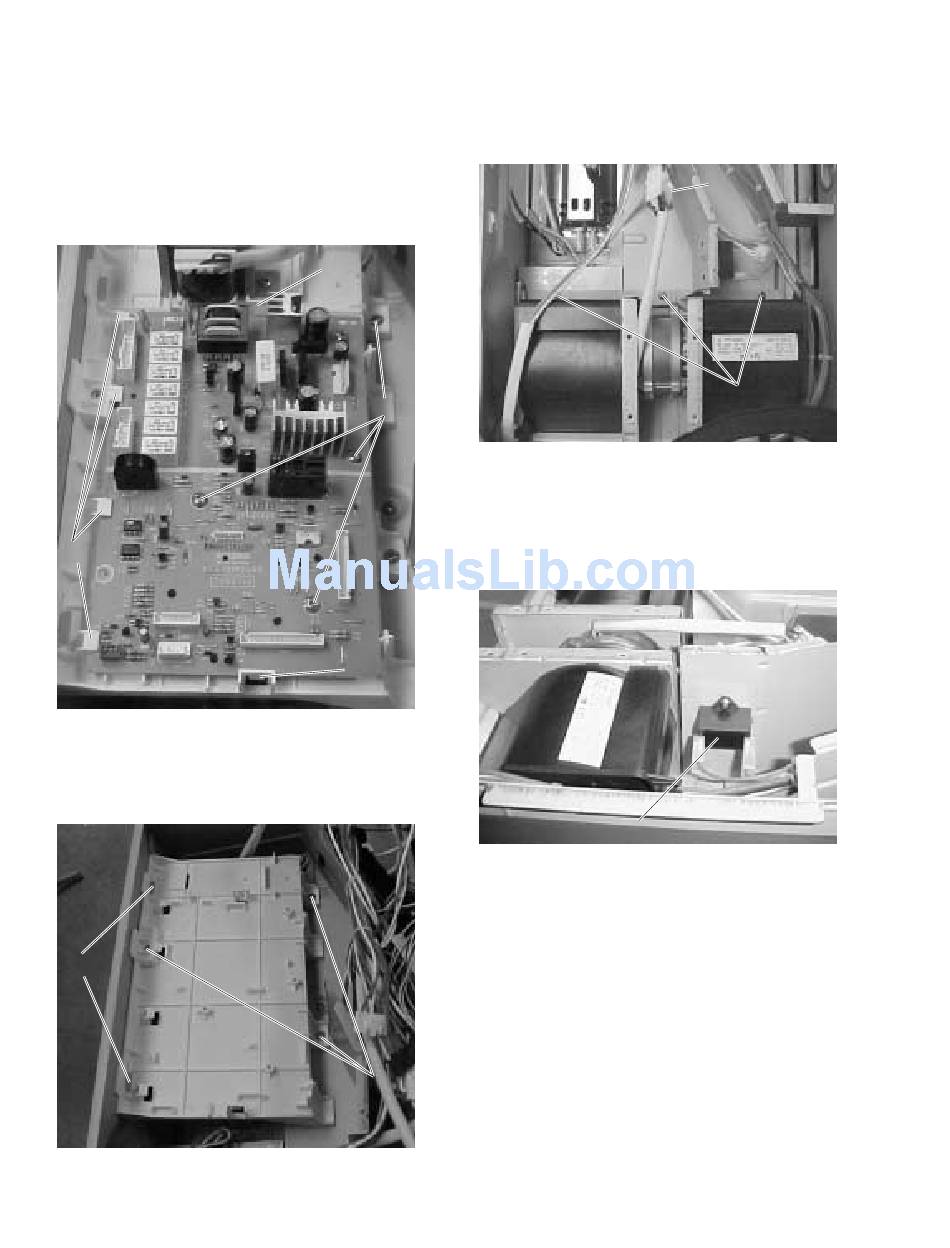

Remove Main PCB Assembly

1. Remove the top and rear access covers (see
pages 28-29).
2. Remove 4 screws that attach the main PCB
assembly to the plastic support.
3. Slide the board forward and lift it slightly
upward to disengage the board from 4 rear
tabs.
Rear Tabs Rear Tabs
4. Remove 2 screws on the front and 1 screw on
the back of the plastic support. Slide the
support to the left.
Tabs Tabs

Remove Upper Exhaust Assembly - Left

1. Remove the top, left, and rear access covers
(see pages 28-29).
2. Remove 3 screws and disconnect the harness.
Tabs Tabs
Screws Screws
3. Lift exhaust motor upward to remove.
Note: The fan capacitor is located to the right of
the exhaust motor.
Tabs Tabs
GEA00450

Remove Damper Door Assembly

1. Remove the top and right access covers (see
page 28).
Screws Screws
GEA00451
– 32 –
Harness Harness
Disconnect Disconnect
Screws Screws
Fan Capacitor Fan Capacitor
GEA00452
GEA00453
