When installing the speedcook oven over a GE
electric warming drawer, follow the product
installation instructions.
• An anti-tip block must be installed at the rear
of the warming drawer opening. Again, see
Installation Instructions for complete details.
Electrical Requirements
Single Speedcook Installation
Product rating is 120/208 or 120/240V, 60 Hz, 30
amps. This product must be connected to a supply
circuit of the proper voltage and frequency and
protected by a time delay fuse or circuit breaker.
The power supply should be brought to a separate
30 ampere branch circuit. Wire size must conform
to the requirements of the National Electric Code
or the prevailing local code.
Combined Speedcook and Wall Oven Installation
When installed in combination with a GE single
wall oven, use separate electrical junction boxes,
Install a single junction box connected to 50 amp.
supply circuit or properly rated supply circuit.
• Refer to single oven installation instructions for
electrical requirements of that product.
• These connections must be made by a
qualified electrician. All electrical connections
must meet National Electrical Code or
prevailing local codes.
Combined Speedcook and Warming
Drawer Installation
When installing the speedcook oven over a GE
electric warming drawer, a separate 120V, 60Hz,
properly grounded receptacle must be installed.
See instructions packed with the warming drawer.
WARNING: Electrical Shock Hazard
• The electrical power to the oven branch circuit
must be shut off while line connections are being
made.
• Use copper wiring only.
• Electrical ground is required on this appliance.
The free end of the green wire (the ground wire)
must be connected to a suitable ground. This wire
must remain grounded to the oven.
• If cold water pipe is interrupted by plastic, non-
metallic gaskets, union connections, or other
insulating materials, do not use for grounding.
• Do not ground to a gas pipe.
or
• Do not have a fuse in the NEUTRAL or
GROUNDING circuit. A fuse in the NEUTRAL or
GROUNDING circuit could result in an electrical
shock.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
Failure to follow these instructions could result in
serious injury or death.
Install Junction Box
Note: The conduit is located at the top right on the
back of the oven.

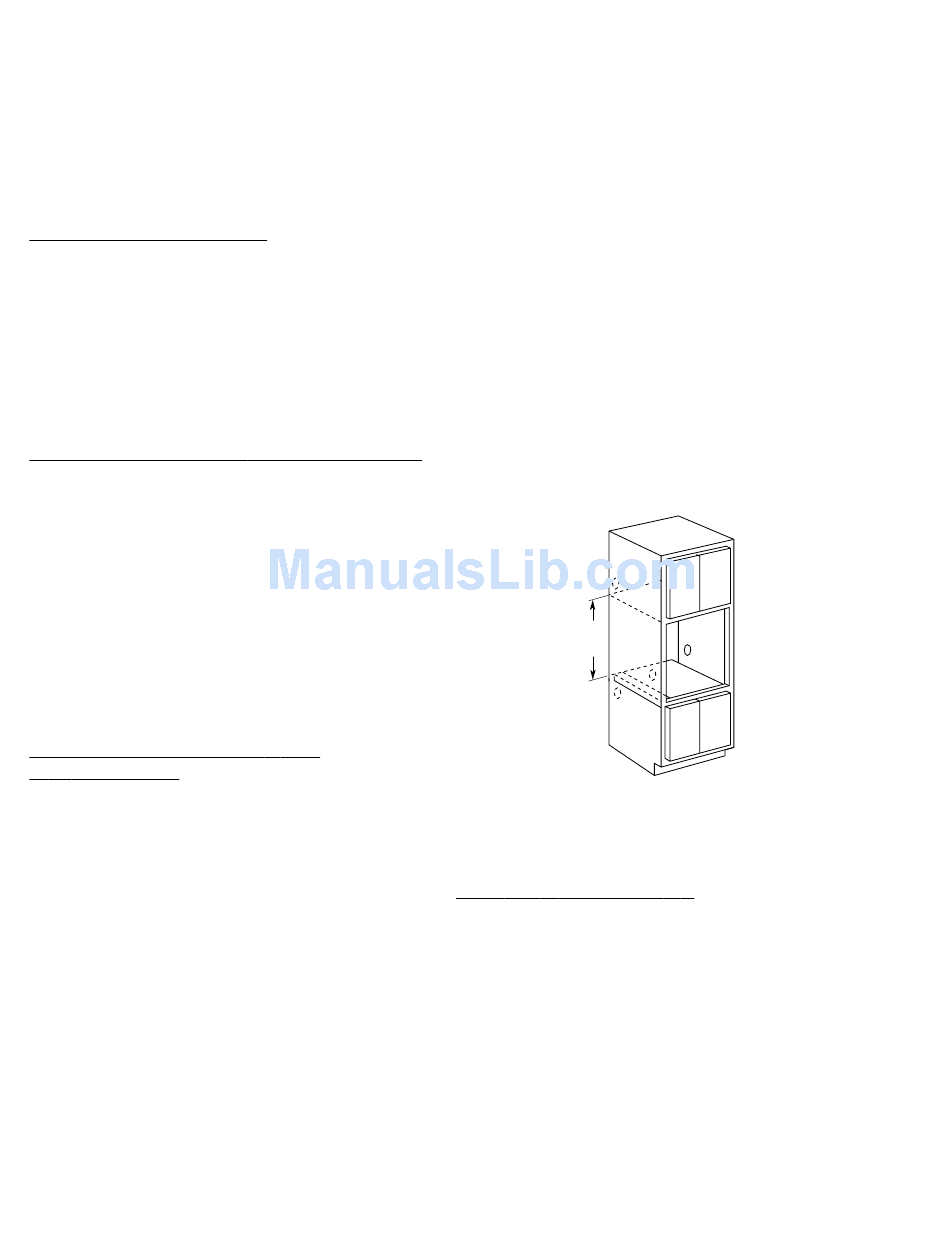

Locate and install the junction box within reach of
the oven conduit:
• Through the left or right sides of the cabinet
wall and into adjacent cabinet, or
• Through the cutout floor, or
• In the upper cabinet.
21"
Min.
Installation
Remove Packaging and Parts
1. Open the door and remove packing material
with ceramic tray.
2. Locate Owner's Kit in carton. Remove and
save.
3. Locate box with metal trays in carton. Remove
and save.
4. Locate parts package containing 5 mounting
screws (4 required, 1 extra).
Caution: To protect the bottom trim, do not
remove the styrofoam shipping base until the oven
is slipped into the opening.
