GE SCB2000 Technical Service Manual page 52

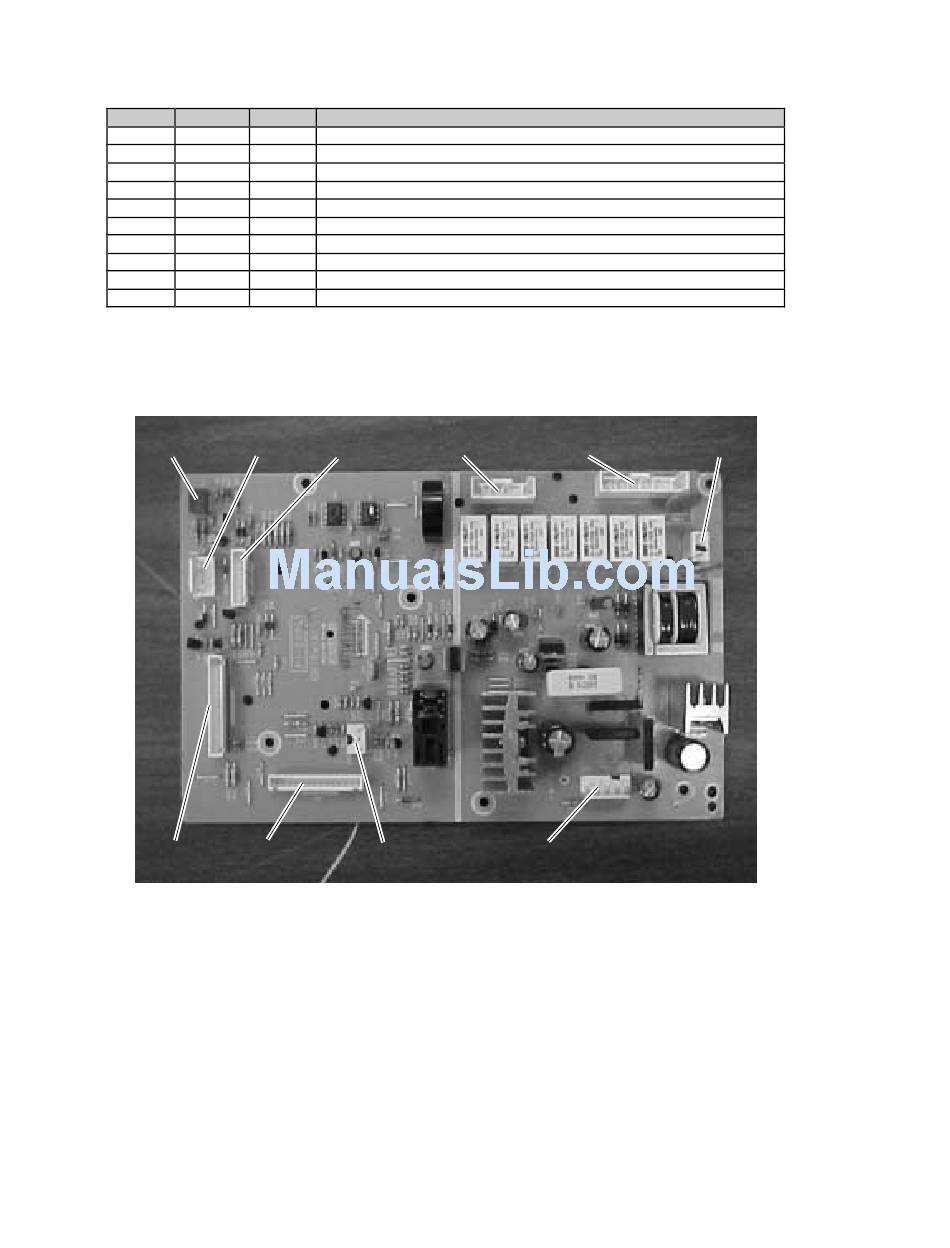

Smart Board
CONN COLOR
CN1 White
CN2 Blue
CN3 White
CN4 Red
CN5 Blue
CN6 Yellow
CN11 White
CN12 White
CN13 White
CN17 White
CN4 CN4
CN5 CN5
# PINS DESCRIPTION
3 Pin To LV transformer (primary)
3 Pin Door sensing switches (left and right and damper motor)
11 Pin To control display (key panel control assembly)
3 Pin Humidity sensor
5 Pin To control display (key panel control assembly)
3 Pin Thermistor
4 Pin From LV transformer (secondary)
5 Pin Vent motor, blower motor, thermal fuse, upper halogen T.C.O.
6 Pin Damper motor, oven lamps, upper blower motor, lower blower motor
8 Pin To control display (key panel control assembly)
CN2 CN2 CN17 CN17
CN3 CN3 CN6 CN6
CN13 CN13 CN12 CN12
CN11 CN11
– 50 –
CN1 CN1
GEA00471
