Air Flow Diagram - GE SCB2000 Technical Service Manual

Advantium built-in oven
Hide thumbs Also See for SCB2000:
Table of Contents

Advertisement

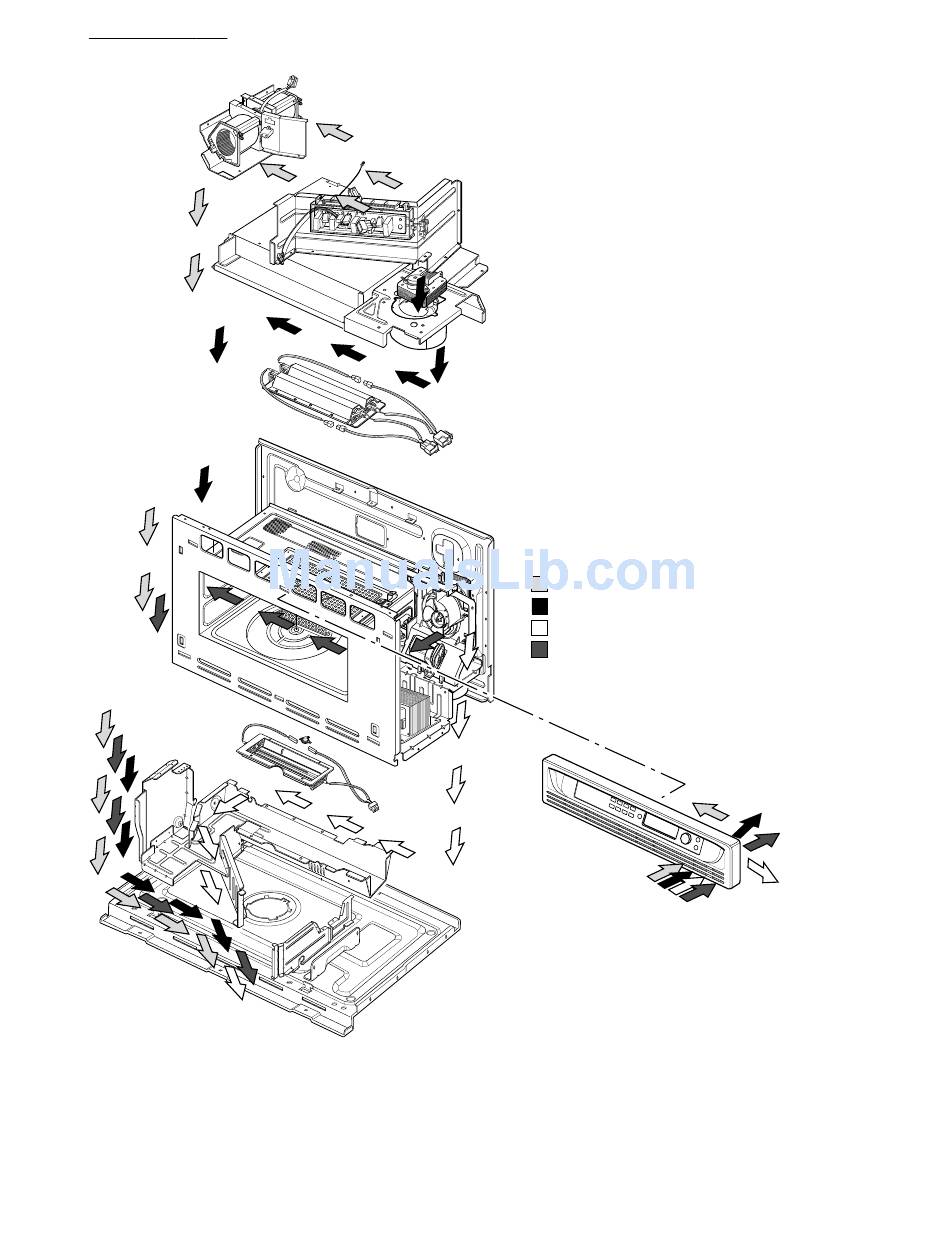

Air Flow Diagram

EXHAUST POWER AIR FLOW
UPPER HALOGEN BLOWER AIR FLOW
LOWER HALOGEN BLOWER AIR FLOW
MAGNETRON FAN AIR FLOW
GEA00570
