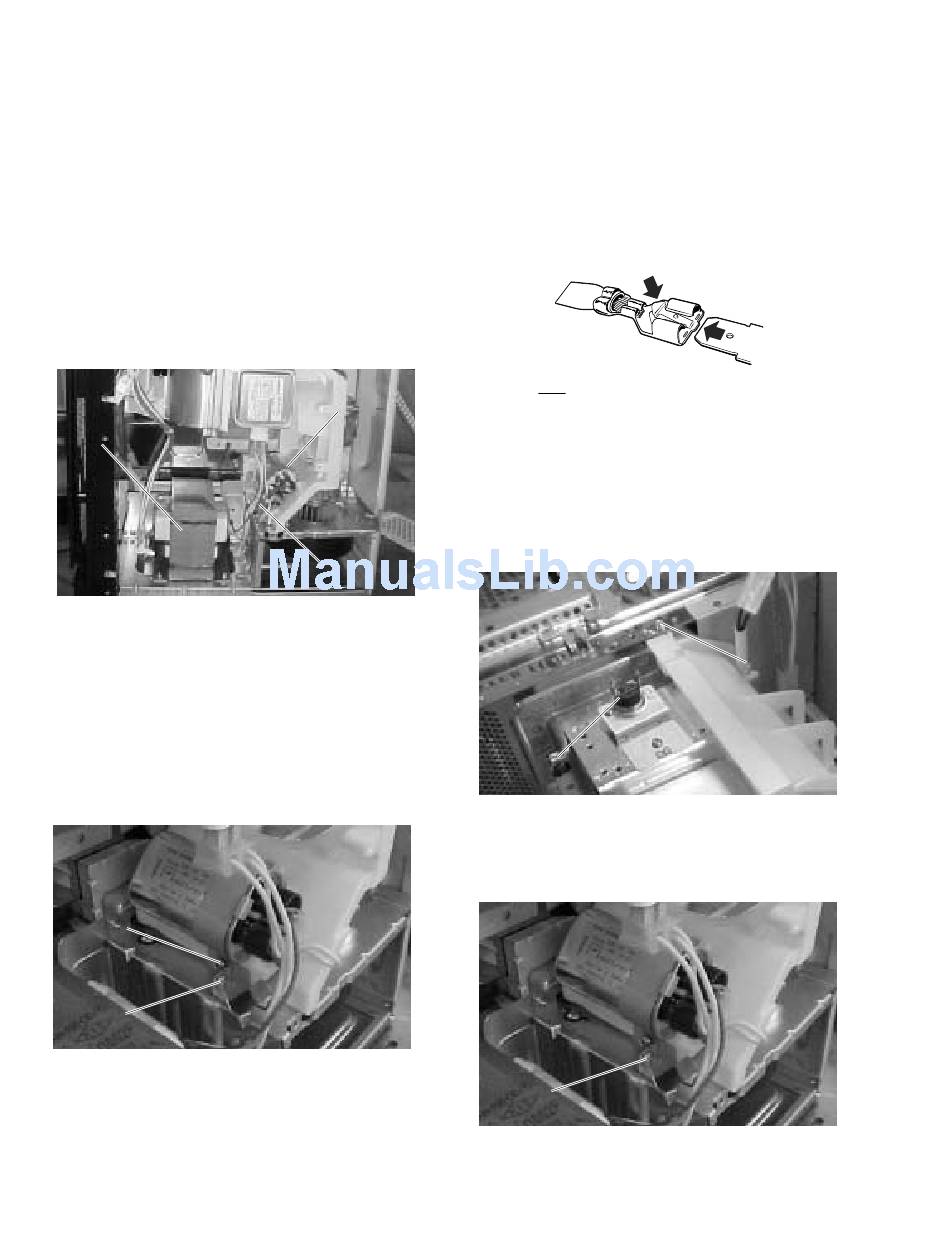

Microwave High-Voltage Section

WARNING: Prior to servicing the high-voltage
capacitor or diode, remove power to the oven
(turn off the circuit breaker).
WARNING: Always be certain the capacitor is
discharged before servicing. Manually discharge
by placing an insulated-handle screwdriver
between the diode connection of the capacitor
and the oven chassis ground. Use screw head
close to capacitor to ensure ground metal contact.
The microwave high-voltage section is located on
the right side of the Advantium oven. To access,
remove the top and right access covers (see page
28).
High Voltage High Voltage
Transformer Transformer

Remove HV Capacitor and Diode

1. Disconnect all associated connector plugs.
2. Remove 1 screw connecting the diode to the
oven chassis.
3. Remove 1 screw connecting the capacitor
mounting bracket to the plastic holder.
Chassis Chassis
Screw Screw
Diode Diode
Screw Screw
4. Remove the capacitor, diode, and capacitor
mounting bracket as one assembly.

Remove Magnetron Fan Motor Assembly

Note: The electrical terminal ends which attach to
the high-voltage capacitor have locking tabs on
them. These tabs cannot be seen because they
are encased in plastic. To remove these terminals,
grasp the top and bottom of the terminal with
needle-nose plier jaws. Gently squeeze the plier
jaws together while pulling the electrical terminal
from the capacitor.
Capacitor Capacitor
1. Disconnect the red and white high-voltage
transformer leads from the capacitor.
2. Remove the top screw from the fan motor
assembly.
Diode Diode
GEA00571
Magnetron Magnetron
T.C.O. T.C.O.
3. Remove 1 screw connecting the diode to the
oven chassis.
GEA00467
4. Pull the assembly toward you and tip it slightly
back to remove the assembly from the oven.
– 36 –
DEPRESS LOCKING TAB
NOTE: TERMINAL END IS ENCASED IN CLEAR RUBBER
AND DOES NOT ALLOW YOU TO SEE LOCKING
TAB
Diode Diode
Screw Screw
GEA00434
Top Screw Top Screw
GEA00464
GEA00465
