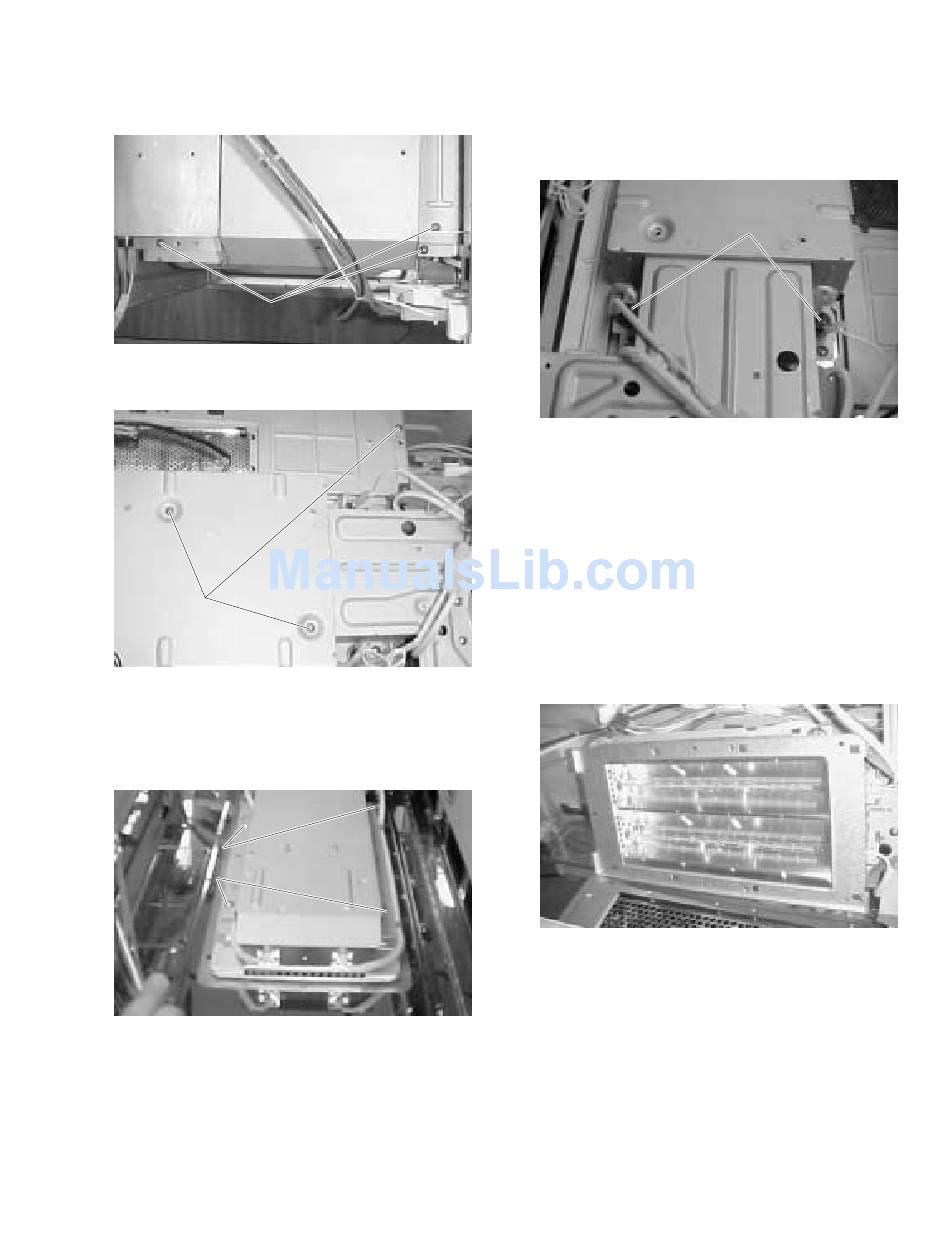

4. Remove the main PCB.
5. Remove the relay board and mounting.
6. Remove 6 air cover screws.
Screws Screws
Screws Screws
7. Remove 4 screws from the lamp cover.
Halogen Lamp Halogen Lamp
Housing Screws Housing Screws
8. Remove the control panel (see page 31).
9. Remove the oven cavity lamp assembly (see
page 28).
10. Disconnect 4 wire leads from the upper
thermostat.
GEA00457
11. Straighten 8 tabs that secure the reflector to
the halogen cover.
12. Carefully lift the cover off the lamps.
Caution: Do not touch the halogen lamps. Dirt
and skin oil can cause the lamps to explode
when turned on.
Note: The two upper halogen lamps are replaced
as a pair.
GEA00458
GEA00459
– 35 –
Upper Halogen T.C.O.s Upper Halogen T.C.O.s
GEA00460
GEA00461
