Note 1:
According to the designation of sync signals and the setting of each inspection mode, the analog outputs
(BNC) of the signal generator shall be connected as specified below. (Except the cases when otherwise
specified)
1) SEPARATE: R/G/B CONNECTION, HS ←→ H, VS ←→ V, CS not connected
Note 2:

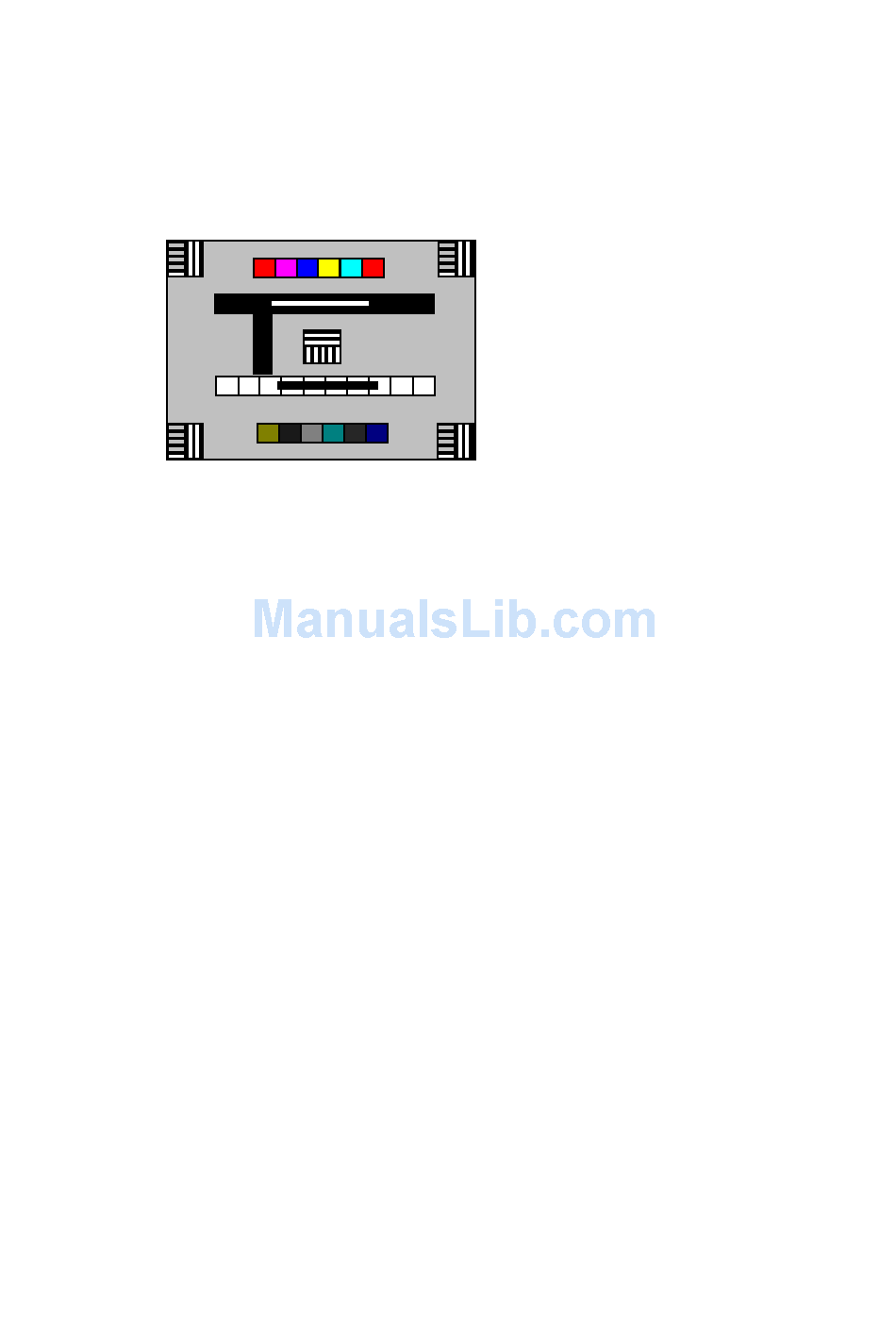

Screen of Option 2
5-11
