  • Page 1 MultiSync LCD1530V User’s Manual...
  • Page 2 Caution: When operating the MultiSync LCD1530V with a 126-240V AC power source in Europe except UK, use the power cord provided with the monitor. In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment.
  • Page 3 MultiSync LCD1530V (LA-15R01) are in compliance with Council Directive 73/23/EEC: Council Directive 89/336/EEC: and marked with NEC-Mitsubishi Electric Visual Systems, Corp. Power consumption of the monitor is less than 3 W when in power- saving mode. Declaration of the Manufacturer...

  • Page 4: Canadian Department Of Communications Compliance Statement

    Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 950. FCC Information 1. Use the attached specified cables with the MultiSync LCD1530V colour monitor so as not to interfere with radio and television reception.

  • Page 5: Declaration Of Conformity

    We hereby declare that the equipment specified above conforms to the technical NEC-Mitsubishi Electronics Display of America, Inc. 1250 N. Arlington Heights Road Itasca, Illinois 60143-1248 (630)467-3000 Computer Monitor Class B Peripheral MultiSync LCD1530V standards as specified in the FCC Rules. English-4...

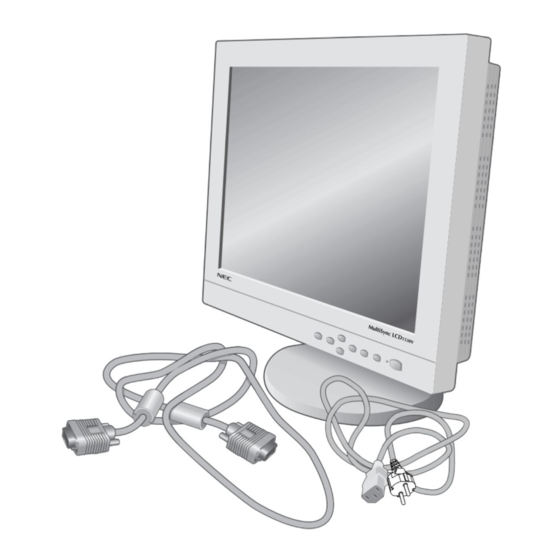

  • Page 6 Contents Your new NEC-Mitsubishi MultiSync LCD monitor box* should contain the following: • MultiSync LCD1530V monitor with tilt base • Power Cord • Video Signal Cable • User’s Manual • CD-ROM includes complete User‘s Manual in PDF format and Windows related files (Inf file and color profile). To see the complete User‘s Manual, Acrobat Reader 4.0 must be installed on your PC.

  • Page 7: Quick Start

    For the Mac: Connect the MultiSync LCD1530V Macintosh cable adapter to the computer (Figure B.1). Attach the 15-pin mini D-SUB end of the appropriate signal cable to the MultiSync LCD1530V Macintosh cable adapter (Figure B.1). Tighten all screws. Remove connector cover and cable cover on back of monitor (Figure E.1).
  • Page 8 Figure A.1 1. Cables pass through in this hole. 2. Connect each connector Power Switch Figure D.1 15-pin mini D-SUB Mac Adapter (not included) Signal Cable AC Power Cord Power Outlet English-7 15-pin mini D-SUB Figure B.1 Clip Figure C.1 To Computer...
  • Page 9 Marking area I. Cable Cover How to remove this cover. A. Push marking area B. Slide to up side C. Remove Figure E.1 English-8 Marking area II. Connector Cover How to remove this cover. D. Push under side E. Remove Push...

  • Page 10: Remove Monitor Stand For Mounting

    Tilt Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1). Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes: 1. Remove the connector cover, hinge cover and cable cover.

  • Page 11: Osm (On-Screen-Manager) Controls

    Controls OSM (On-Screen-Manager) Controls The OSM controls on the front of the monitor function as follows: To access OSM press any of the control buttons ( , , , ) or the PROCEED button Main Menu Control Exits the OSM controls. EXIT Moves the highlighted CONTROL /...

  • Page 12: Auto Adjust

    OSM LOCK OUT The OSM LOCK OUT control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the LOCK OUT mode, a screen will appear indicating that OSM controls are locked out. •...
  • Page 13 FINE Improves focus, clarity and image stability by increasing or decreasing this setting. Automatically adjusts the H. Size and Fine setting. Color Control System Five color presets select the desired color setting. Each color setting is adjusted at the factory. R,G,B: Increases or decreases Red, Green or Blue color depending upon which is selected.

  • Page 14: Recommended Use

    Recommended Use Safety Precautions and Maintenance FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC LCD COLOR MONITOR: • DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks.
  • Page 15 • If the monitor does not operate normally by following operating instructions. • Do not bend power cord. • Do not use monitor in high temperatured, humid, dusty, or oily areas. • Do not cover vent on monitor. • If monitor is broken, do not come in contact with the liquid crystal. •...
  • Page 16 • Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner! • Adjust the monitor’s brightness and contrast controls to enhance readability. • Use a document holder placed close to the screen. •...

  • Page 17: Specifications

    In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. NOTE: Technical specifications are subject to change without notice. MultiSync LCD1530V Diagonal: 15.1 inch 15.1 inch 1024 x 768 Video: ANALOG 0.7 Vp-p/75 Ohms...
  • Page 18 Features Wider Compatibility: Because the MultiSync LCD monitor is analog through and through, it does not require special analog to digital display or interface cards but can accept RGB input directly. Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another.

  • Page 19: Troubleshooting

    “ghost” of that image remains, the monitor should be turned off for one hour to erase the image. NOTE: As with all personal display devices, NEC-Mitsubishi Electronic Displays recommends using a screen saver at regular intervals whenever the screen is idle.
  • Page 20 LED on monitor is not lit (no green or amber color can be seen) • Power Switch should be in the ON position and power cord should be connected. • Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).
  • Page 21 TCO’99 Congratulations! You have just purchased a TCO’99 approved and labeled product!Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 22 The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy.
  • Page 23 Cadmium** Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. TCO’ 99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.
