Maintenance
Make sure power is disconnected to the lightbar before servicing. Refer to Figure 4. To remove
the top lens, remove the 4 screws around the perimeter. Place a blade screwdriver into the
notches at the front of the top lens and twist. This should lift the lens up enough to remove the top
lens by hand.
If an LED assembly is not working, refer to the troubleshooting section. If it needs to be removed,
disconnect power to the module by pulling apart the red quick connect terminal and unscrewing the
black ground lead. Remove the 2 sheet metal screws. Halogen assemblies are removed in the
same manner.
Before reassembling the top lens, make sure the gasket is properly seated.

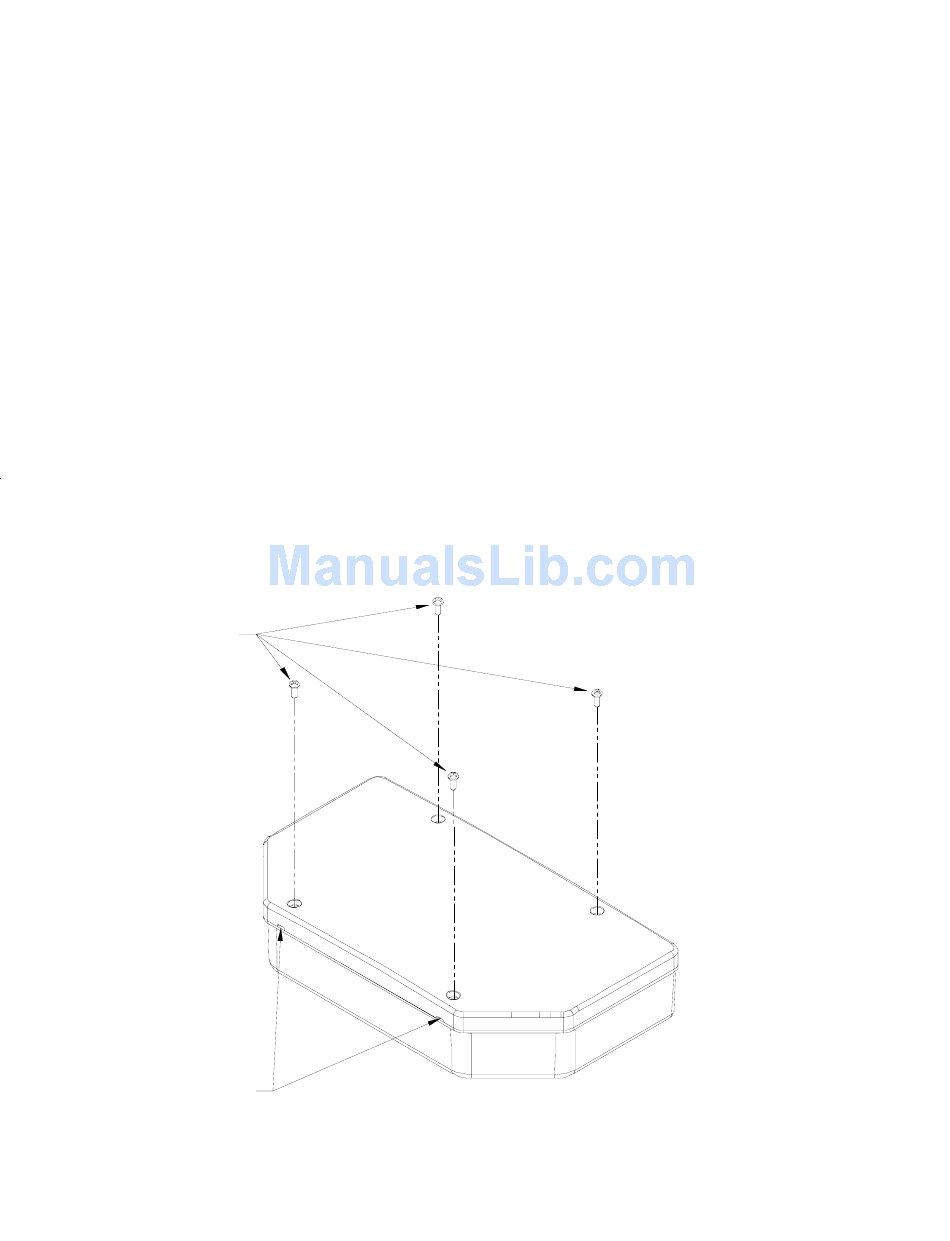

T16320 - #8 SCREW
T16321 - #8 WASHER
SCREWDRIVER NOTCH
FOR OPENING LENSES
XP9500 TOP LENS
REMOVAL PROCESS
Figure 4
6
