LED MODULES
The LED modules are available as "flashing" and "stationary" versions. The stationary versions can
be flashed by connecting the module(s) to any flasher that does not require ground through the load
(example: Code 3® 925 or 700 series relay flasher). The flashing modules will have "Cycleflash"

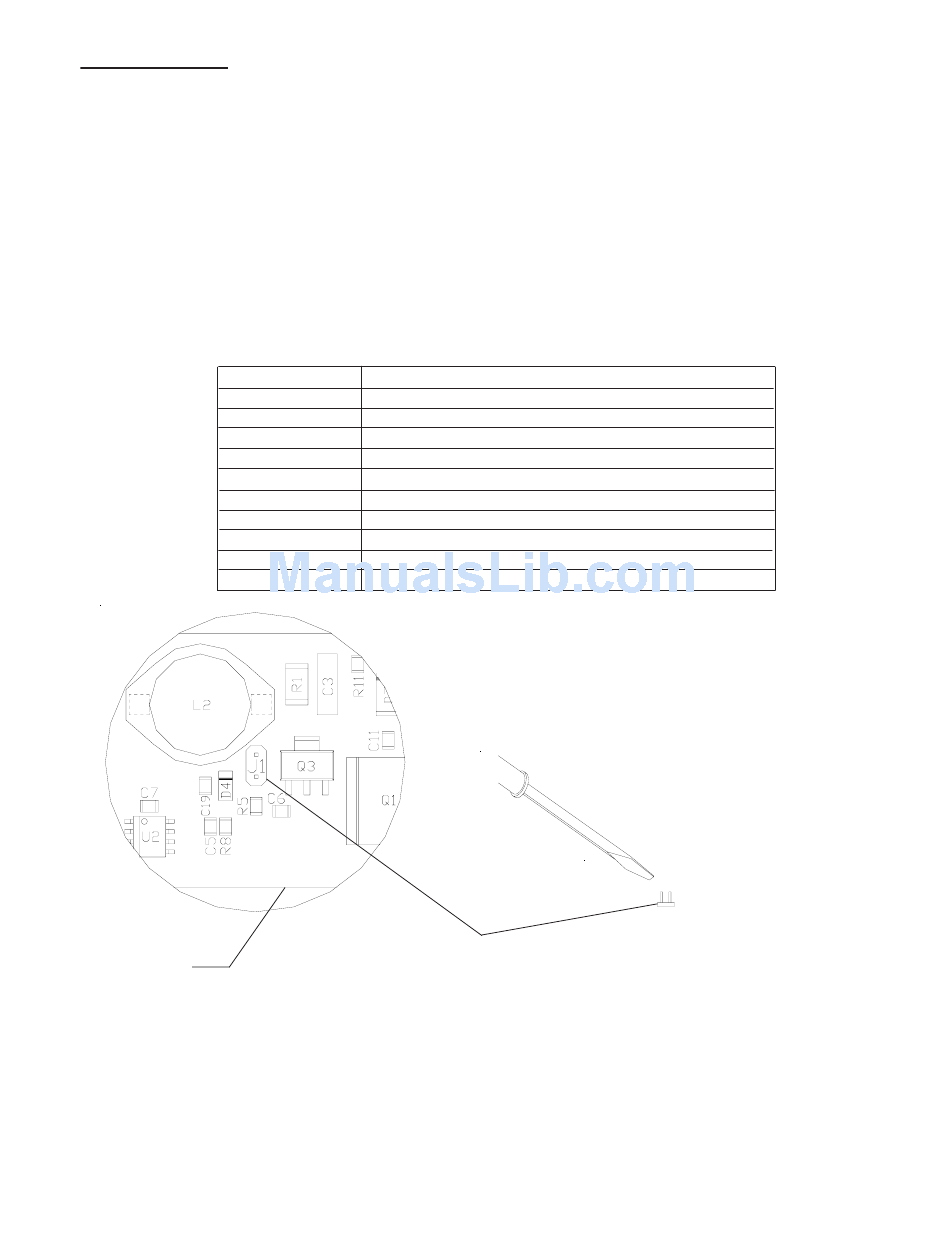

as the standard pattern. Flash patterns can be changed by shorting the 2-pin header, J1 as shown
in Figure 3, momentarily then releasing. Table 1 shows the available patterns and the order when
stepping through patterns. The module can be reset to "Cycleflash" by shorting the header for
greater than 5 seconds and releasing.
Flash Pattern
Cycle Flash
Steady-Burn
Five Flash
Quad Flash
Triple Flash
Double Flash
Fast Double Flash
NFPA
Quad Pop Flash
Triple Pop Flash
PCB
Directional Module Flash Pattern - Table 1
Description
Cycles through various patterns @ 70 fpm
Steady-Burn
Five Pulses per flash @ 70 fpm
Four Pulses per flash @ 70 fpm
Three Pulses per flash @ 70 fpm
Two Pulses per flash @ 70 fpm
Two Pulses per flash @ 85 fpm
Four Pulses, 70% Duty Cycle @ 75 fpm
Four Pulses per flash ( 3 equal, 1 extended) @ 70 fpm
Three Pulses per flash ( 2 equal, 1 extended) @ 70 fpm
5
Momentarily short and release
to change patterns
J1
FIGURE 3
