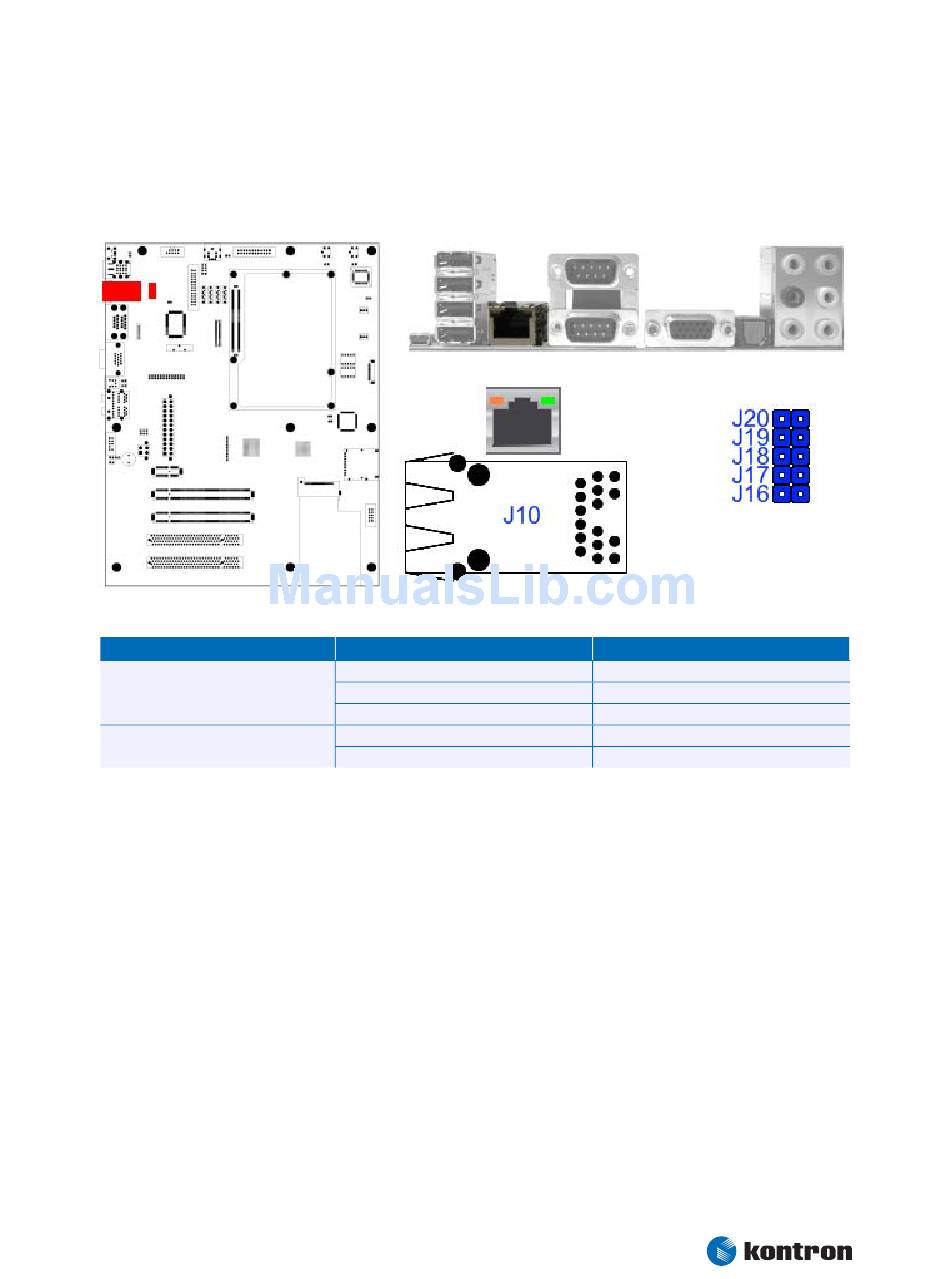

Ethernet (J10)

The Ethernet Port must be configured according to the modules specifications. For Gigabit Ethernet
modules close all jumpers J16-J20 (default). For modules with only 10/100MBit connection (e.g.
microETXexpress) open all Jumpers.
J10 Ethernet LED function
LED
1 (left)
2 (right)
Kontron User's Guide
nanoETXexpress Evaluation Board
6 5BConnector and feature description
State
Green
Yellow
Off
On
Blinking
23
Function
Link1000
Link100
Link10
Link
Activity
