Section
3

Adjusting the display

3.1
The VT150 DiamondVue Series display has an embedded microprocessor in the converter
card. Once you have the unit displaying the resolution you desire for your application do the
following:
In order to navigate to the appropriate adjustments, press Menu (or MODE) and the OSD
layout chart will appear as indicated as shown below.
Definition of OSD (on screen display) Adjustments
3.2

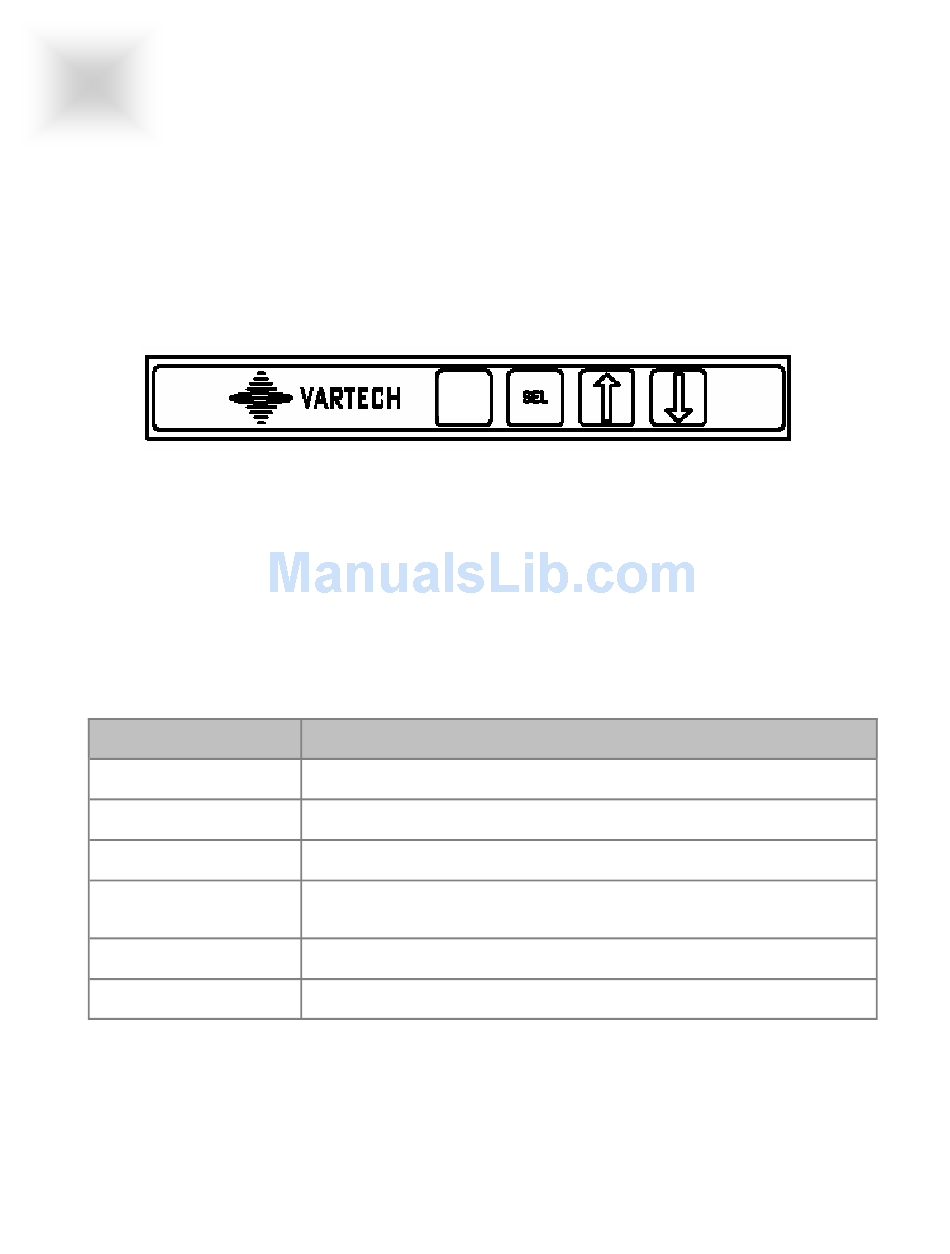

There are four membrane buttons located on the unit. They will activate the OSD and allow
navigation to all adjustments if your unit requires adjustment.
Press MENU (or MODE) and a major adjustment category will appear. Press DOWN or UP
and you will see the remaining adjustment categories. Press SEL to select a category or item
for adjustment. The actual adjustment categories are listed under each major category (bold)
as shown below.
CATEGORY
ADVANCED
OPTION
UTILITY
VIDEO
VT150 DiamondVue Series User Guide
MODE
DESCRIPTION
Brightness, Contrast, Clock, Phase, H Position, V Position
Color temp, User red, User green, User blue, Gamma
OSD, OSD H pos, OSD V pos, Backlight
OSD Timeout, OSD background, auto adjust, factory reset,
power on time, backlight on time
Brightness, Contrast, Color, Tint, Sharpness
Video format, Video type
7
