Installing the System Cover

Follow this procedure to install the system cover:
1. Guide the sides of the cover into the grooves on either side of the chassis.
2. Lower the front end of the cover and ensure that the sides engage fully down
into the grooves.
3. Pull the cover gently forward until it latches.
3.3

Locations of Sun Fire V20z Components

Refer to
procedures.
The following figure indicates the location of each of these components:

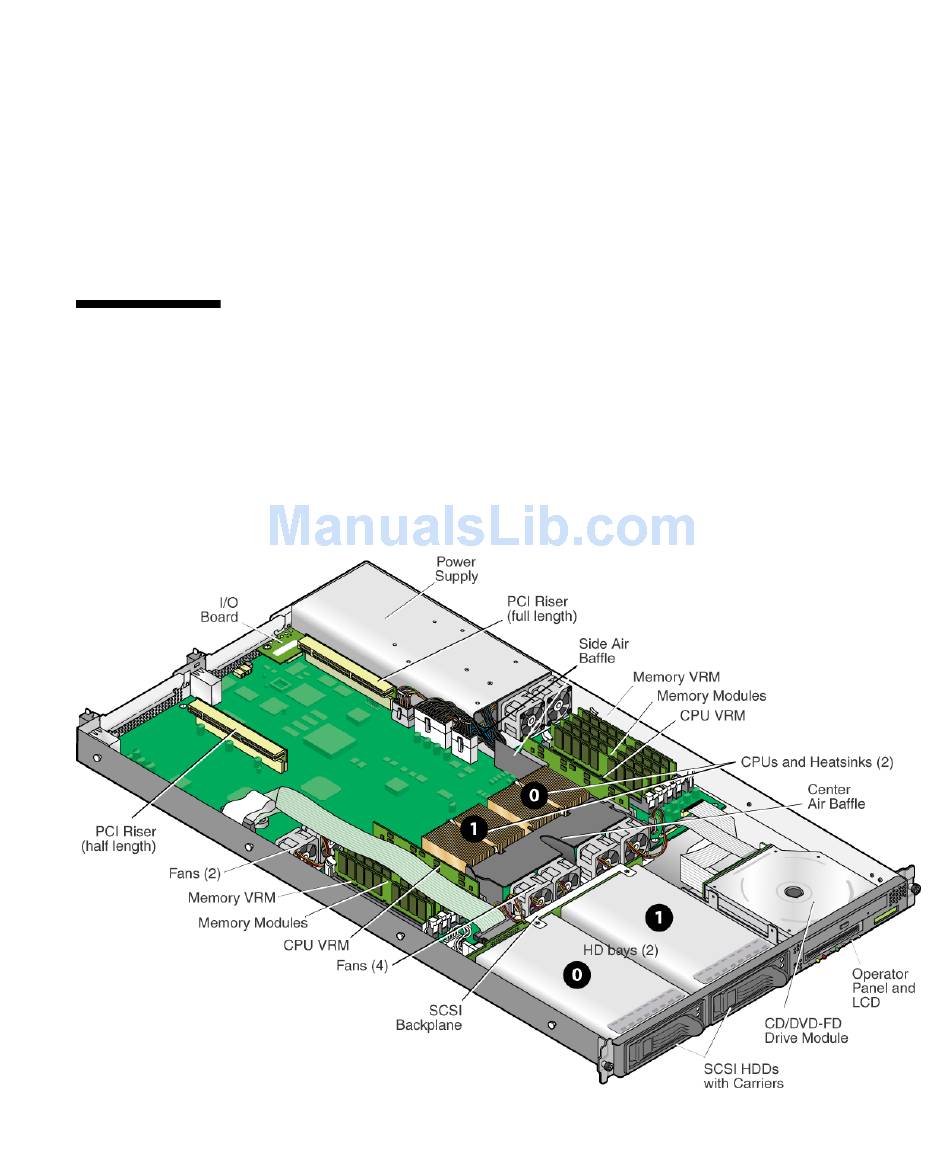

Locations of System Components in Sun Fire V20z Server, Top-Down View
FIGURE 3-2
to locate components before performing the remove and replace
FIGURE 3-2
