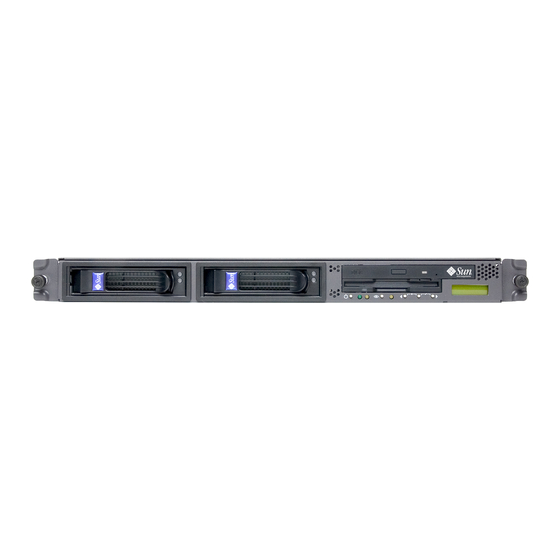

Replacing the Sun Fire v20z or Sun Fire V40z Cable Kit
This document contains:
"Replacing a Cable Kit in a Sun Fire V20z Server" on page 1
■
■

Replacing a Cable Kit in a Sun Fire V20z Server

Follow these steps to remove and replace the following cables (refer to
Five-pin cable connecting the SCSI backplane to the motherboard (1).
■
68-pin ribbon cable connecting the SCSI backplane to the motherboard (2).
■
Flat cable connecting the SCSI backplane to the motherboard (3).
■
Flat cable connecting the CD-ROM/DVD to the motherboard (5).
■
Flat cable connecting the Diskette Drive to the motherboard (6).
■
Flat cable connecting the operator panel board to the motherboard (7).
■
1. Turn off the system, including any attached peripherals.
Refer to the Sun Fire V20z and Sun Fire V40z Servers User Guide for full instructions
on powering off the server.
2. While pressing the cover latch release button with your right thumb (A), slide the
cover towards the rear of the chassis until it contacts the stop (B).
3. Lift the cover up and remove it.

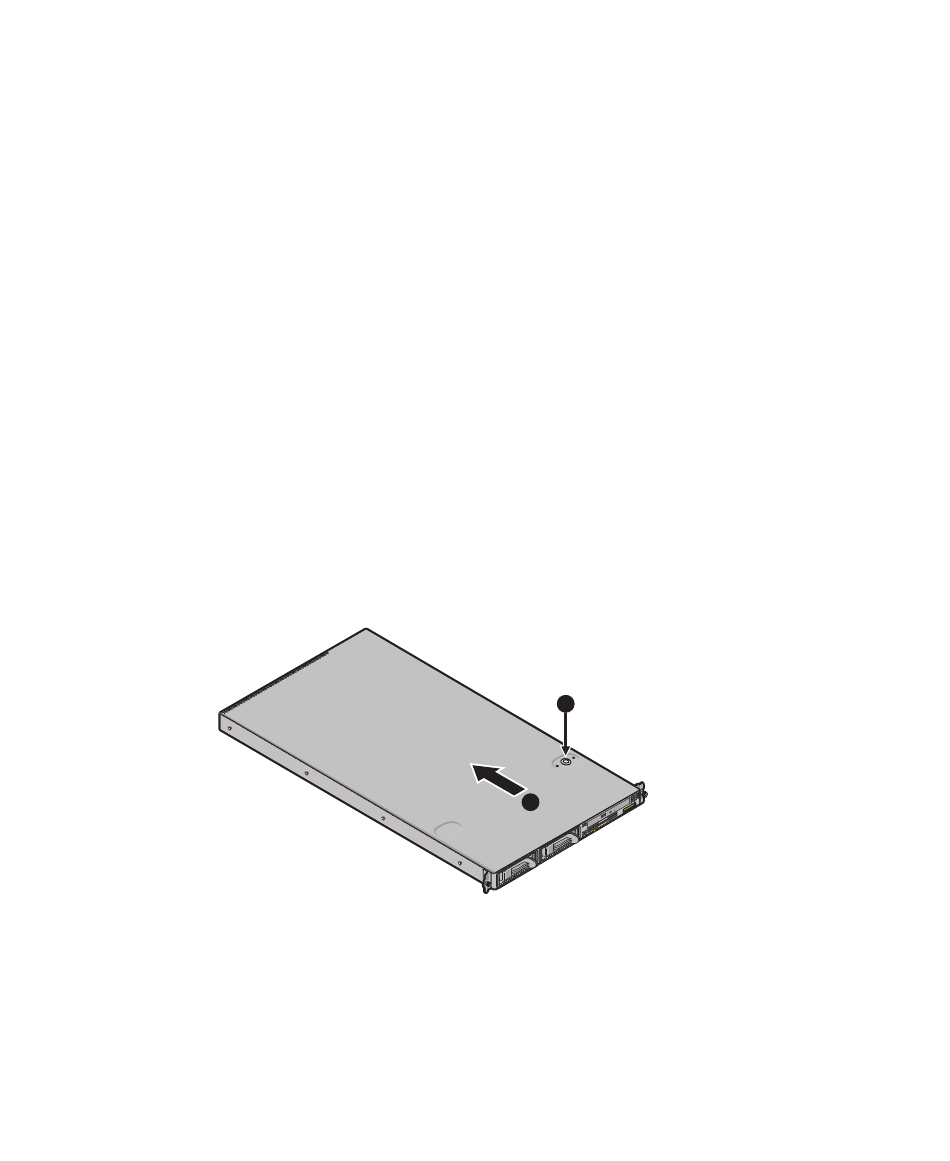

FIGURE 1
817-5258-11
Removing the Sun Fire V20z Cover
A
B
):
FIGURE 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sun Fire v20z and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Microsystems Sun Fire v20z

Summary of Contents for Sun Microsystems Sun Fire v20z

  • Page 1 ■ 1. Turn off the system, including any attached peripherals. Refer to the Sun Fire V20z and Sun Fire V40z Servers User Guide for full instructions on powering off the server. 2. While pressing the cover latch release button with your right thumb (A), slide the cover towards the rear of the chassis until it contacts the stop (B).
  • Page 2 Caution – Use caution when removing cables as they are fragile—the small flat flexible cables and cable connectors are extremely sensitive. Cable Connectors FIGURE 3 5. Check the routing of all cables for obstructions before reinstalling the cover. Replacing the Sun Fire V20z or Sun Fire V40z System Cables...
  • Page 3 ■ 1. Turn off the system, including any attached peripherals. Refer to the Sun Fire V20z and Sun Fire V40z Servers User Guide for full instructions on powering off the server. 2. Loosen the captive screw on the cover latch, then rotate the latch toward the system rear to push back the cover.
  • Page 4 Copyright 2004 Sun Microsystems, Inc. All rights reserved. Use is subject to license terms. Third-party software, including font technology, is copyrighted and licensed from Sun suppliers. Portions may be derived from Berkeley BSD systems, licensed from U. of CA. Sun, Sun Microsystems, the Sun logo, and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc.
