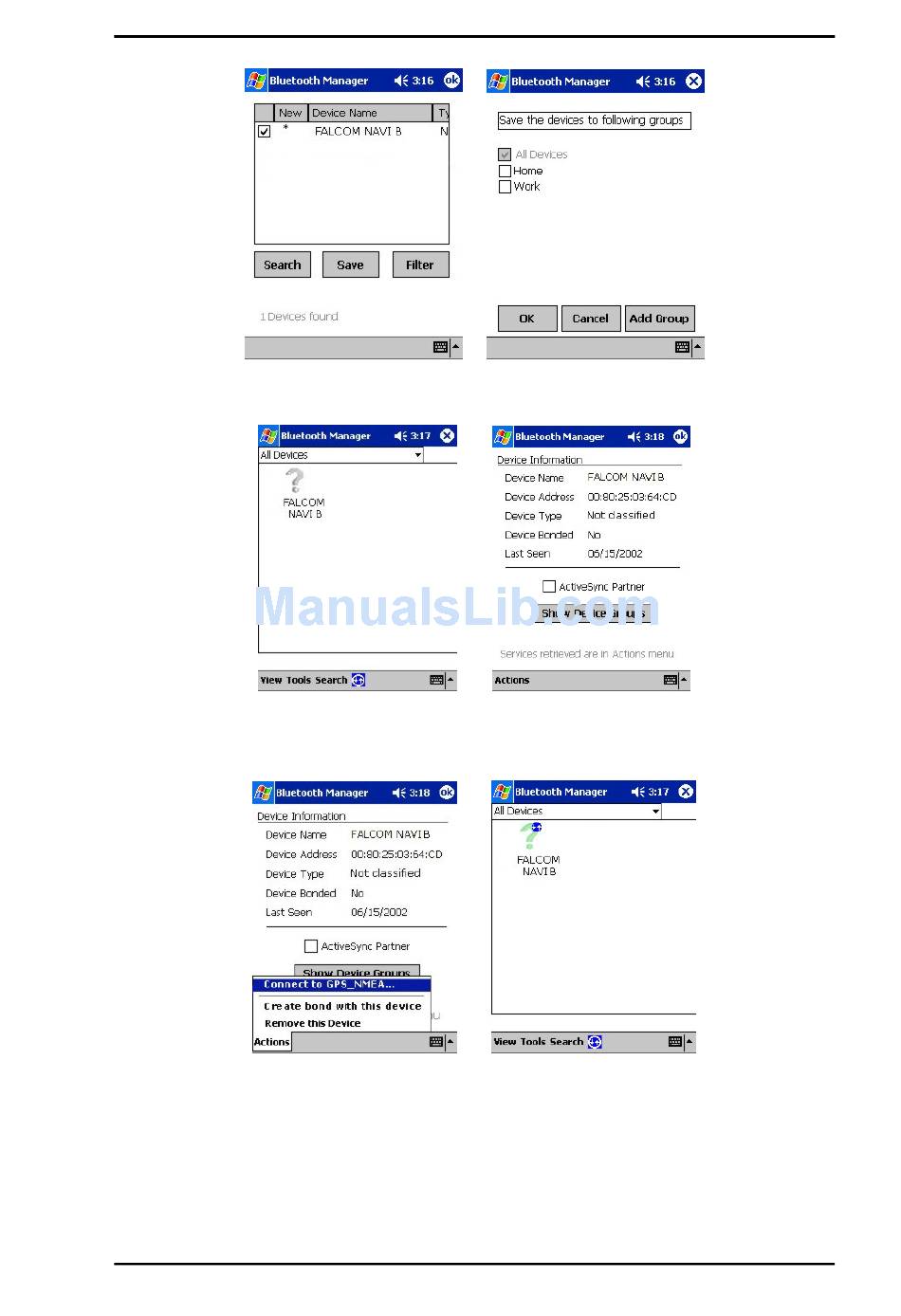

6. You will be returned to the Bluetooth™ Manager screen. Tab the
FALCOM NAVI-B-H icon to get the device information.
7. Tap on Actions menu and "Connect to GPS_NMEA .." (below left).
This will take a short time to be completed (below right). Now tap OK
to return to Devices list.
8. Your last step is to find which serial port is connected to. At the main
Bluetooth™ Manager screen, tap Tools Menu and "Settings for All
Devices" (below left). On the Settings screen, tap "Serial Port" tab.
Note the entry for "Outbound Com Port" (COM8 in screenshot below
right) and "Inbound Com Port" (COM7 in screenshot below right).
As far as the Secure Connection for NAVI-B-H is concerned, please,
refer to the chapter 5.2
selected, see figure right below, then enter "1111" when asked for a
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
(click here). If the option "Passkey is required" is
