FALCOM NAVI-B-H User Manual page 17

NAVI-B-H

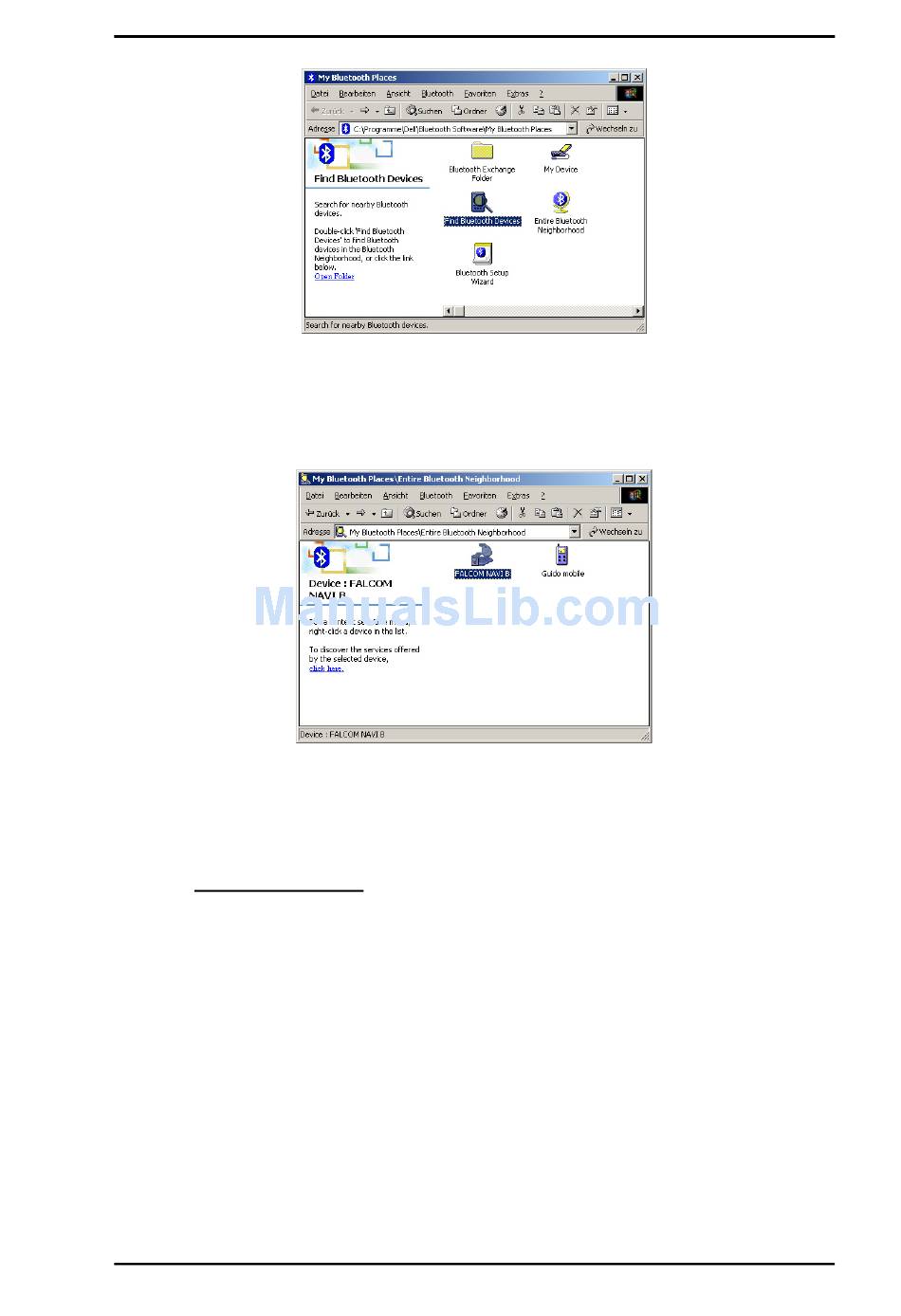

7. After a few seconds, a list of Bluetooth™ devices will appear on your
screen. You will see the FALCOM NAVI-B-H appear in the Service
Selection. Select the FALCOM NAVI-B-H icon. In order to discover
the services offered the FALCOM NAVI-B-H click the link
on the left side of opened window.
8. The service appears below allows the users to establish a virtual serial
port. Right-click on the ... FALCOM NAVI-B-H icon, on the appearing
popup menu click the Connect to Bluetooth™ Serial Port item. The
LED blue lights constantly (means Bluetooth™ connection is created).
(
The Bluetooth™ LED is internally but is viewable when it lights.
Secure Connection:
As far as the Secure Connection for NAVI-B-H is concerned there is
no security entered i.e. there is no device pairing required if the Secure
Connection option is disabled for a Bluetooth™ service or application.
Please check the software configuration to disable the Secure
Connection (e.g. go to Start>Settings>Control Panel and click the
Bluetooth™ configuration, a Bluetooth™ configuration screen will
appear in the display. Select the Client Application tab, then double-
click on the Application Name "Bluetooth™ Serial Port" and
deactivate its Security Connection on the next appeared dialog box).
In order to pair two devices with each other the Secure Connection
option has to be enabled for a Bluetooth™ service or application (e.g.
go to aforementioned directory and activate its Security Connection).
After inquiry process, the pairing process needs a valid PIN which for
NAVI-B-H is "1111" pre-defined
