OPERATION
MANUAL
24HFU and 24HFU-1
DENSO SALES CALIFORNIA, INC.
(800) 264-9573
www.movincool.com
REGISTERED TO ISO 9002
FILE NO. A5537
© 2000 DENSO SALES CALIFORNIA, INC.
All rights reserved. This book may not be reproduced or copied, in whole or in part, without
the written permission of the publisher. DENSO SALES CALIFORNIA, INC. reserves the right
to make changes without prior notice. MovinCool is a registerd trademark of DENSO
Corporation.
READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT
INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS.
DSCA P/N: LA990009-0180-E
Advertisement
Table of Contents
Related Manuals for Movincool 24HFU
Summary of Contents for Movincool 24HFU
-
Page 1: Operation Manual
All rights reserved. This book may not be reproduced or copied, in whole or in part, without the written permission of the publisher. DENSO SALES CALIFORNIA, INC. reserves the right to make changes without prior notice. MovinCool is a registerd trademark of DENSO Corporation. -
Page 2: Definition Of Terms

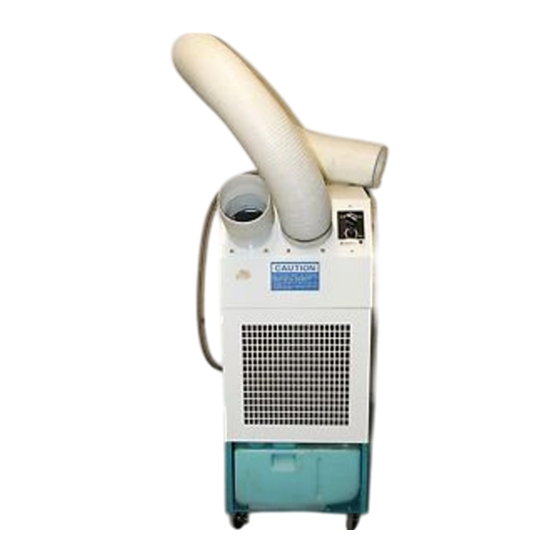

Congratulations on purchasing the MovinCool portable air conditioner. This manual explains how to assemble, install and operate the MovinCool 24HFU and 24HFU-1 portable air conditioning units. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation. You may also find it useful to keep this operation manual on hand for reference. -
Page 3: General Warnings And Cautions
“UL” approved ground-fault breaker to prevent electrical shock from the unit. • Both models (24HFU and 24HFU-1) are equipped with a six (6) foot power cord. If replacement, fixed location (hard wired) or power cord lengthening are required, contact your reseller for approved replacement methods and a qualified electrician. -
Page 4: Inventory & Assembly
INVENTORY & ASSEMBLY Inventory After unpacking your MovinCool unit, please check to make sure you have the following items: • MovinCool Unit (1) • Cool Air Outlet Ducts (2) • Screws (8) • Operation Manual/Warranty Card (1) NOTE: If any of these items were not included in the box or appear damaged, please contact your MovinCool reseller for replacement. - Page 5 Install each cool air outlet using 4 screws each as shown. NOTE: Do not overtighten the screws when installing the cool air outlets. This could damage the base on the cool air outlet assembly. SCREW (4) COOL AIR OUTLET (2) SCREW (4) MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 5...
-
Page 6: Choosing An Installation Site
LOCKED. • Install the unit in areas that can withstand the weight of the unit. The unit weighs approximately 280 lbs (when the drain tank is full of water). MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 6... -
Page 7: Moving The Unit
INSTALLATION Moving the Unit Unlock the casters and push the MovinCool Unit from the front panel edge to a flat, level surface and set the casters back to the “LOCKED” position. FRONT PANEL EDGE UNLOCKED LOCKED MOVINCOOL 24HFU / 24HFU-1 OPERATION... -
Page 8: Operation
Control Switch: Used to select desired operation mode (OFF/ FAN/COOL) “FULL TANK” Lamp: Turns on when drain tank is full “THERMOSTAT”: Used to control operation according to inlet air temperature (Model 24HFU-1 Only) COOL COOL COOL COOL THERMOSTAT 1 THERMOST... -
Page 9: Plugging In The Unit
Make sure the AC outlet is free of dirt, dust, oil, water, or any other foreign matter. Both models (24HFU and 24HFU-1) are equipped with an approved NEMA plug configuration (L6-20). The appropriate outlet must be used for this plug type. -
Page 10: Operating Modes
OPERATION Operating Modes Both the 24HFU and 24HFU-1 operate in 2 modes, “FAN” and “COOL”. When in “FAN” mode the unit circulates the air. When in “COOL” mode, the compressor is engaged and cool air is circulated. Auto Restart Feature •... - Page 11 OPERATION “COOL” Mode Turn the Control Switch to “COOL” position. COOL Model 24HFU-1 will operate in “FAN” mode for approximately 75 seconds before compressor engages. (Time delay 75 +15 seconds for 24HFU-1 only.) CAUTION: If “COOL” mode has been stopped while operating the 24HFU, wait for 3 minutes before restarting in “COOL”...
-
Page 12: Drain Tank
Pull the drain tank from the unit. Remove the cap and empty the drain tank. √ Replace the cap and return the drain tank to the unit. Turn the Control Switch to the desired mode. MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 12... - Page 13 When the water level drops below level (A), the drain pump stops. NOTE: If the water level rises above level (B), COOL operation will automatically shut off. Contact your MovinCool reseller for repair. DRAIN PUMP DRAIN TANK DISCHARGE HOSE MOVINCOOL 24HFU / 24HFU-1 OPERATION...
-
Page 14: Daily Inspection And Maintenance
Remove the 3 air filters. NOTE: To remove the side air filters, lift upward, then pull outward from the bottom. To remove the front panel air filter, pull out top corners, then lift upward. MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 14... - Page 15 Remove dust from the element with a vacuum cleaner, or rinse in cold or lukewarm water. If the element is extremely dirty, wash with a neutral detergent. ≈ After the element has been cleaned, rinse with clean running water, allow to dry, then reinstall. MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 15...
-
Page 16: In-Season/Off-Season Inspection & Maintenance
If dust and/or dirt are present, wipe off with a clean, dry cloth. Check the power cord plug and prongs for damage or excess play. If any damage or excess play is found, contact your MovinCool reseller for repair. Check the power cord for damage. If the power cord is damaged, contact your MovinCool reseller for repair. -
Page 17: Troubleshooting
Clear air inlet/outlet Improper thermostat setting Set to desired position If symptoms still persist after above actions have been taken, set Control Switch to “OFF”, disconnect power cord plug and contact your MovinCool reseller. MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 17... -
Page 18: Technical Specifications
107 kg (235 lbs) Operating Condition inlet air (relative humidity) F (45 C), < 50% F (45 C), < 50% F (25 C), < 50% F (25 C), < 50% Control Device temperature control without with MOVINCOOL 24HFU / 24HFU-1 OPERATION PAGE 18...
