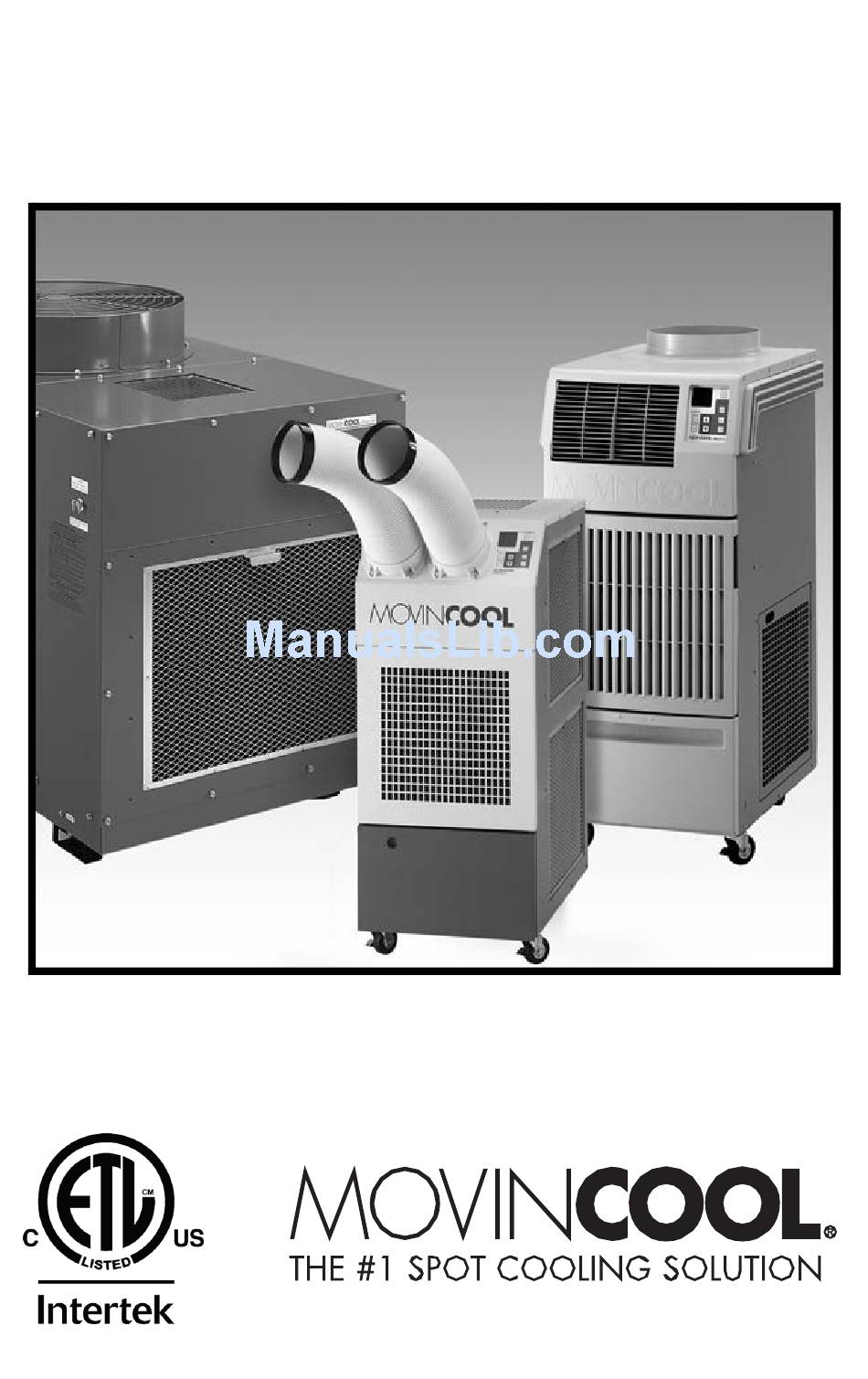

OPERATION MANUAL

CLASSIC 10 and CLASSIC 18
Unit Serial Number Range: 1111XXXX### to Present
(From November 2011 to Present)
READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT
INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS
SECCIÓN EN ESPAÑOL
SECTION EN FRANÇAIS
AVAILABLE AT WWW.MOVINCOOL.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Movincool Classic 10

  • Page 1: Operation Manual

    OPERATION MANUAL CLASSIC 10 and CLASSIC 18 Unit Serial Number Range: 1111XXXX### to Present (From November 2011 to Present) READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS SECCIÓN EN ESPAÑOL SECTION EN FRANÇAIS...
  • Page 2: Serial Number Location And Identification

    All rights reserved. This book may not be reproduced or copied, in whole or in part, without the written permission of the publisher. DENSO PRODUCTS AND SERVICES AMERICAS, INC. reserves the right to make changes without prior notice. MovinCool®, Office Pro®, and SpotCool® are registered trademarks of DENSO Corporation.
  • Page 3 OPERATION MANUAL CLASSIC 10 and CLASSIC 18...
  • Page 4: Table Of Contents

    Operating Modes ................. 20 Self-Diagnostic Codes ................ 21 Empty the Drain Tank ................. 22 Condensate Pump Kit (Optional for Classic 10)....... 23 Condensate Pump Kit (Optional for Classic 18)....... 24 INSPECTION & MAINTENANCE..............25 Empty the Drain Tank ................. 25 Clean the Air Filters ................
  • Page 5: Foreword

    FOREWORD Congratulations on purchasing the MovinCool portable air conditioner. This manual explains how to install and operate the MovinCool Classic 10, and Classic 18 portable air conditioning units. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation.
  • Page 6: General Warnings & Cautions

    UL listed, 3-wire grounding type appliance extension cord, having a 3-blade and a 3-slot receptacle that plugs into the appliance. The marked rating of the extension cord should be 115 V, 15 A for Classic 10, and 208/230 V, 15 A for Classic 18 or equivalent.
  • Page 7: Inventory & Assembly

    1. Classic 10 or Classic 18 MovinCool Unit (1) 2. Cool Air Outlet Duct(s) (Classic 10 qty. = 1, Classic 18 qty. = 2) 3. Screws (Classic 10 qty. = 4, Classic 18 qty. = 8) 4. Operation Manual/Product Registration (1) Note: If any of these items were not included in the box or appear damaged, please contact your MovinCool reseller for replacement.
  • Page 8: Assembly

    Assembly CAUTION: Before assembling make sure the unit is on a flat, level surface and the casters are in the LOCKED position. (Both the Classic 10 and Classic 18 MovinCool units have locking swivel casters in the front only.) UNLOCKED LOCKED Install each cool air outlet duct using 4 screws each as shown.
  • Page 9: Installation

    INSTALLATION Choosing an Installation Site CAUTION: Following are some precautions to consider before choosing your installation site. Please review carefully as improper installation may result in personal injury or damage to the unit. 1. Do not use the unit in areas where leakage of flammable gas may occur. 2.
  • Page 10: Moving The Unit

    INSTALLATION (cont.) Moving the Unit Unlock the casters and push the MovinCool unit to a flat level surface and set the casters back to the LOCKED position. UNLOCKED LOCKED...
  • Page 11: Plugging In The Unit

    3-blade and a 3-slot receptacle that plugs into the appliance. The marked rating of the extension cord should be 115 V, 15 A for Classic 10 and 208/230 V, 15 A for Classic 18. CAUTION: The power source should be a dedicated single outlet circuit with UL recognized short-circuit and ground fault protective breaker.
  • Page 12: Warning Signal Connection

    INSTALLATION (cont.) Warning Signal Connection (Output Signal Terminal L+ and L-) The controller is equipped with a warning signal output relay type (Form C, normal open dry contact) which can be used to monitor the failure condition. Relay contactor is closed when the following condition has occurred: a.
  • Page 13: Fire Alarm Control Panel Connection

    INSTALLATION (cont.) Fire Alarm Control Panel Connection (Input Signal Terminal E+ and E-) The controller is equipped with a normal open input signal, which can be connected directly from the fire alarm control panel. This input signal terminal should only be connected to a close or open dry contact signal. When receiving the signal from the fire alarm control panel, the unit turns off and does not turn back on until it has been RESET.
  • Page 14: Lcdi Power Cord Instruction

    INSTALLATION (cont.) LCDI Power Cord Instruction WARNING The LCDI device is a non-serviceable device. Attempting to open the device may expose the user to the hazards of electric shock, and could void warranties of this product. Manufacturer’s liability is limited to the replacement of the device. CAUTION 1.
  • Page 15: Features

    FEATURES 1. A digital electronic control panel, which allows the user to easily control the unit’s operation. 2. Digital LED display that indicates: a. Room temperature and set point temperature (either Fahrenheit or Celsius) b. Status codes 3. The set point temperature can be adjusted between 70 °F (21 °C) and 95 °F (35 °C) by the SET TEMP buttons ( 4.
  • Page 16: Operation

    OPERATION Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. 1. COOL ON/OFF Button Activates COOL mode or turns the unit off. 2. FAN Button Activates FAN ONLY mode or turns the unit off.
  • Page 17: Led Display Descriptions

    OPERATION (cont.) Control Panel (cont.) LED Display Descriptions In normal operation, the LED displays the following descriptions. Display Descriptions Conditions Right decimal point is on. Standby or FAN ONLY mode. Indicates room temperature when display is lit. During COOL mode. (Left fig.
  • Page 18: Operating In Cool Mode

    OPERATION (cont.) Operating in COOL Mode 1. The unit can be operated in COOL mode by pressing the COOL ON/OFF button. Note: In COOL mode the unit can only be turned off by pressing the COOL ON/OFF button. 2. Change the temperature set point by pressing the SET TEMP buttons ( Note: When turning the unit on, the set point and operation mode are determined by the last operating mode.
  • Page 19: Operating In Fan Only Mode

    OPERATION (cont.) Operating in FAN ONLY Mode 1. The unit can also be operated in FAN ONLY mode by pressing FAN button. 2. The unit can only be turned off by pressing the FAN button again. Changing from FAN ONLY Mode to COOL Mode The COOL mode can be activated while the unit is operating in FAN ONLY mode.
  • Page 20: Operating Modes

    OPERATION (cont.) Operating Modes The Classic 10 and Classic 18 can be operated in two modes, FAN ONLY and COOL. When in FAN ONLY mode, the unit circulates the surrounding air. When in COOL mode, the compressor is operated and cool air is circulated.
  • Page 21: Self-Diagnostic Codes

    To RESET: Hold down the SET TEMP ( ) buttons simultaneously for 3 seconds. < Classic 10 ONLY > When high pressure switch is activated 3 times in 24 hours, the unit displays blinking “HP”. If the high pressure switch is activated 10 times in 24 hours, “HP”...
  • Page 22: Empty The Drain Tank

    OPERATION (cont.) Empty the Drain Tank During COOL mode, condensate water accumulates in the drain tank. When the drain tank becomes full, the LED displays “FL” and the unit turns off automatically. Note: If you want to empty the drain tank, while the unit is in operation, press the COOL ON/OFF button to turn the unit off.
  • Page 23: Condensate Pump Kit (Optional For Classic 10)

    OPERATION (cont.) Condensate Pump Kit (Optional for Classic 10) A condensate pump kit is available to allow continuous operation and to eliminate the need for a drain tank. When the water collects to level (A) in the pump reservoir, the condensate pump begins to operate and discharge the water.
  • Page 24: Condensate Pump Kit (Optional For Classic 18)

    OPERATION (cont.) Condensate Pump Kit (Optional for Classic 18) A condensate pump kit is available to allow continuous operation and to eliminate the need for a drain tank. When the water collects to level (A) in the pump reservoir, the condensate pump begins to operate and discharge the water.
  • Page 25: Inspection & Maintenance

    INSPECTION & MAINTENANCE Empty the Drain Tank To empty the drain tank, refer to instructions on page 22. Clean the Air Filters Clean the air filters once a week. If the unit is used in a dusty environment, more frequent cleaning may be required. A dirty air filter can reduce air output resulting in a decrease in cooling capacity.
  • Page 26: In-Season/Off-Season Inspection & Maintenance

    2. Check the power cord, plug and prongs for damage or excess play. If any damage or excess play is found, contact your MovinCool reseller or a qualified technician for repair.
  • Page 27: Troubleshooting

    TROUBLESHOOTING Check the following items before calling your MovinCool reseller or a qualified technician. CONDITIONS POSSIBLE CAUSE REMEDY 1. Ground fault breaker trip Reset breaker or reset power Unit does not operate. or LCDI power cord trip. cord. 2. Drain tank is full.
  • Page 28: Technical Specifications Of Classic 10

    TECHNICAL SPECIFICATIONS OF CLASSIC 10 ITEM SPECIFICATIONS Electronic Features Operation Digital Electronic Electrical Characteristics Voltage Requirement Single-Phase, 115 V, 60 Hz Operating Max. 127 V Voltage Range Min. 104 V Recommended Fuse Size 15 A Cooling Capacity and Power Consumption Evaporator: 95 °F (35 °C),...
  • Page 29: Technical Specifications Of Classic 18

    TECHNICAL SPECIFICATIONS OF CLASSIC 18 ITEM SPECIFICATIONS Electronic Features Operation Digital Electronic Electrical Characteristics Voltage Requirement Single-Phase, 208/230 V, 60 Hz Operating Max. 250 V Voltage Range Min. 198 V Recommended Fuse Size 15 A Cooling Capacity and Power Consumption Evaporator: 95 °F (35 °C), Total Cooling Capacity 18,000 Btu/h (5,280 W)/...
  • Page 30: Warranty Statement

    WARRANTY STATEMENT DENSO PRODUCTS AND SERVICES AMERICAS, INC. ("DENSO") warrants its MOVINCOOL Products only to the extent stated in its official written warranties. Unless otherwise specifically provided in writing by DENSO, DENSO warrants to the original end-user that the products shall be free of defects in materials or workmanship and will function in...
  • Page 31 P/N: 484007-3631EN Second Issue: April 2013...
