Page 1: Operation Manual
OPERATION MANUAL OFFICE PRO 12 / OFFICE PRO 18 / OFFICE PRO 24 READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE AND READ ALL SAFEGUARDS SECCIÒN EN ESPAÑOL SECTION EN FRANÇAIS AVAILABLE AT WWW.MOVINCOOL.COM... - Page 2 © 2007 DENSO SALES CALIFORNIA, INC. All rights reserved. This book may not be reproduced or copied, in whole or in part, without the written permission of the publisher. DENSO SALES CALIFORNIA, INC. reserves the right to make changes without prior...
- Page 3 OPERATION MANUAL OFFICE PRO 12 / OFFICE PRO 18 / OFFICE PRO 24...
-
Page 4: Table Of Contents
Table of Contents ................. FOREWORD ............... Definition of Terms ........GENERAL WARNINGS & CAUTIONS ................Inventory ................INSTALLATION ..........Choosing an Installation Site ..............Moving the Unit .............. Plugging in the Unit ..........Warning Signal Connection ........Fire Alarm Control Panel Connection .............. -
Page 5: Foreword

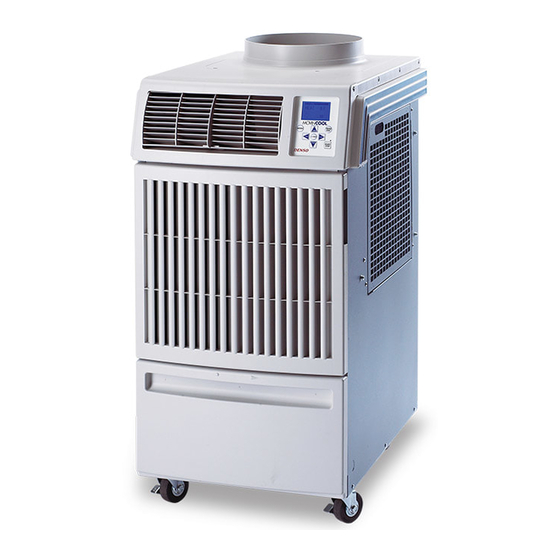

FOREWORD Congratulations on purchasing the MovinCool portable air conditioner. This manual explains how to install and operate the MovinCool Office Pro12, Office Pro18, and Office Pro24 portable air conditioning units. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation. -
Page 6: General Warnings & Cautions
GENERAL WARNINGS & CAUTIONS 1) All electrical work, if necessary, should only be performed by qualified electrical personnel. Repair to electrical components by non-certified technicians may result in personal injury and/or damage to the unit. All electrical components replaced must be genuine MovinCool parts, purchased from an authorized reseller. -
Page 7: Inventory
INVENTORY After unpacking your MovinCool unit, please check to make sure you have the following items : 1) Office Pro 12 or Office pro 18 or Office Pro 24 MovinCool Unit (1) 2) Operation Manual/Product Registration (1) NOTE : If any of these items were not included in the box or appear damaged, please contact your MovinCool reseller for replacement. -
Page 8: Installation
INSTALLATION Choosing an Installation Site ! CAUTION : Following are some precautions to consider before choosing your installation site. Please review carefully as improper installation may result in personal injury or damage to the unit. 1) Do not use the unit in areas where leakage of flammable gas may occur. -
Page 9: Moving The Unit
INSTALLATION(cont.) Moving the Unit Unlock the casters and push the MovinCool unit using the side handles to a flat, level surface and set the casters back to the LOCKED position. Right Side Handle Left Side Handle UNLOCKED LOCKED... -
Page 10: Plugging In The Unit
INSTALLATION (cont.) Plugging in the Unit 1) Check the prong and surface of the power cord plug for dust/dirt. If dust and/or dirt are present, wipe off with a clean, dry cloth. 2) Check the power cord, plug and prong for damage or excess play. -
Page 11: Warning Signal Connection
INSTALLATION (cont.) Warning Signal Connection (Output Signal terminal L+ and L-) The controller is equipped with a warning signal output relay type (Form C, normal open dry contact) which can be used to monitor the failure condition. Relay contactor (not connector) is closed when the following condition has occurred : a. -
Page 12: Lcdi Power Cord
INSTALLATION (cont.) LCDI Power Cord Instruction WARNING The LCDI device is non-serviceable device. Attempting to open the device may expose the user to hazardous of electric shock, and could void warranties of this product. Manufacturer’s reliability is limited to the replacement of the device. CAUTION 1. -
Page 13: Features
FEATURES For all models: 1) A digital electronic control panel, which allows the user to control the unit’s operation easily. 2) Dual fan speeds (either HIGH or LOW) in both COOL and Fan Only modes. 3) Digital LCD display with blue backlight that indicates: a. -
Page 14: Operation
OPERATION Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. PROGRAM MO TU WE TH FR SA SU START PROGRAM STOP RUN/ CLOCK STOP LOCKED PROGRAMMING SET TEMP COOL ROOM TEMP PROG... -
Page 15: Lcd Indicators
OPERATION (cont.) Control Panel (Cont.) LCD Indicators Illuminates to indicate selected day 9) MO...SU of the week Temperature displayed in either Fahrenheit 10) °C or °F or Celsius (See Note) Illuminates to indicate AM or PM time of day. 11) AM/PM Blinking during program editing mode. -
Page 16: Set Clock
OPERATION (cont.) Set Clock Prior to operating the Office Pro 12, 18, or 24 users should set the clock of the controller to the correct time as shown in the following steps : 1) Press and hold the SET CLOCK button for 3 seconds or until beep. -
Page 17: How To Set A Program
OPERATION (cont.) How to Set a Program SET START TIME PROGRAM MO TU WE TH FR SA SU 1) Press and hold the “SET PROG” START PROGRAM STOP RUN/ button for 3 seconds or until beep. CLOCK STOP LOCKED 2) Press “SET TEMP” buttons to select PROGRAMMING SET TEMP COOL... -
Page 18: How To View And Delete Program
OPERATION (cont.) How to View and Delete Program 1) Press and hold the SET PROG button for 3 seconds or until beep. 2) To view edited program - While pressing and holding the SET PROG button, press SET TEMP ( ) to scroll program sequence. -
Page 19: Operating Modes
OPERATION (cont.) Operating Modes The Office Pro 12, Office Pro 18, and Office Pro 24 can be operated in two modes, Fan Only and COOL. When in Fan Only mode, the unit circulates the surrounding air. When in COOL mode, the compressor is operational and cool air is circulated. 1) COOL Mode Once the compressor has been disengaged for more than 120 seconds, the unit will operate in Fan Only mode for... -
Page 20: Empty The Drain Tank
OPERATION (cont.) Empty the Drain Tank During COOL mode, condensate will accumulate in the drain tank. When the drain tank becomes full, the FULL TANK LED will flash and the LCD displays “Tank FL” and the ALARM signal output is turned ON and the unit will shut off automatically. NOTE : If you want to empty the drain tank, while the unit is in operation, press the COOL ON/OFF button to turn the unit off. -
Page 21: Drain Pump Kit (Optional)
OPERATION (cont) Drain Pump Kit (Optinal) A drain pump kits are available to allow continuous operation and to eliminate the need for a drain tank. When the water collects to level (A) in the pump reservoir, the drain pump begins to operate and discharge the water. -
Page 22: Self-Diagnostic Codes
TROUBLESHOOTING Self-Diagnostic Codes Self-Diagnostic Codes will be displayed on the Control Board under the following conditions: LCD Display Codes Condition When the drain tank switch shuts off the unit LCD displays “TANK FL” and FULL TANK LED flashes. Once emptying the drain tank procedure is completed and “ON/OFF”... -
Page 23: Daily Inspection & Maintenance
DAILY INSPECTION & MAINTENANCE Empty the Drain Tank To empty the drain tank, refer to instruction on page 20. Clean the Air Filters Clean the air filters once a week. If the unit is used in a dusty environment, more frequent cleaning may be required. A dirty air filter can reduce air output resulting in a decrease of the cooling capacity. -
Page 24: Filter Cleaning Method
DAILY INSPECTION & MAINTENANCE (cont.) Filter Cleaning Method FI LTER 1) Remove dust from the element with a vacuum cleaner, or rinse in cold or lukewarm water. If the element is extremely dirty, wash with a neutral detergent. 2) After the element has been cleaned, rinse with clean running water, allow to dry, then reinstall. -
Page 25: Troubleshooting
TROUBLESHOOTING Check the following items before calling a qualified technician REMEDY SYMPTOM POSSIBLE CAUSE Unit does not operate 1) Ground fault breaker Reset Breaker or Reset power cold trip or LCDI power cord trip. Empty the drain tank 2) Drain Tank is full (Tank Full LED will be flashing) 3) High Pressure Activated... -
Page 26: Technical Specifications
TECHNICAL SPECIFICATIONS Office Pro 24 ITEMS/FEATURES Office Pro 18 Office Pro 12 Rating Conditions 95°F(35°C) Dry bulb 95°F(35°C) 95°F(35°C) 83°F(28.2°C) Wet bulb 83°F(28.2°C) 83°F(28.2°C) (60%) Humidity (60%) (60%) ITEMS/FEATURES Office Pro 12 Office Pro Pro 24 Specification 60Hz 60Hz Power frequency 60Hz Single phase 115 V 1 phase 208/230 V... - Page 27 The aforesaid warranty is the only warranty made by DENSO with respect to the Products and is in lieu of all obligations or liabilities on the part of DENSO for damages arising out of or in connection with the sale, use or performance of the Products, including, without limitation, any lost profits or any other concequential, incidental, special or exemplary damages of any kind.
- Page 28 DENSO SALES CALIFORNIA, INC. 3900 Via Oro Avenue Long Beach CA 90810-1868 800-264-9573 / 310-834-6352 www.movincool.com P/N : GX484007- 2111 Second Issue : June 2007...
