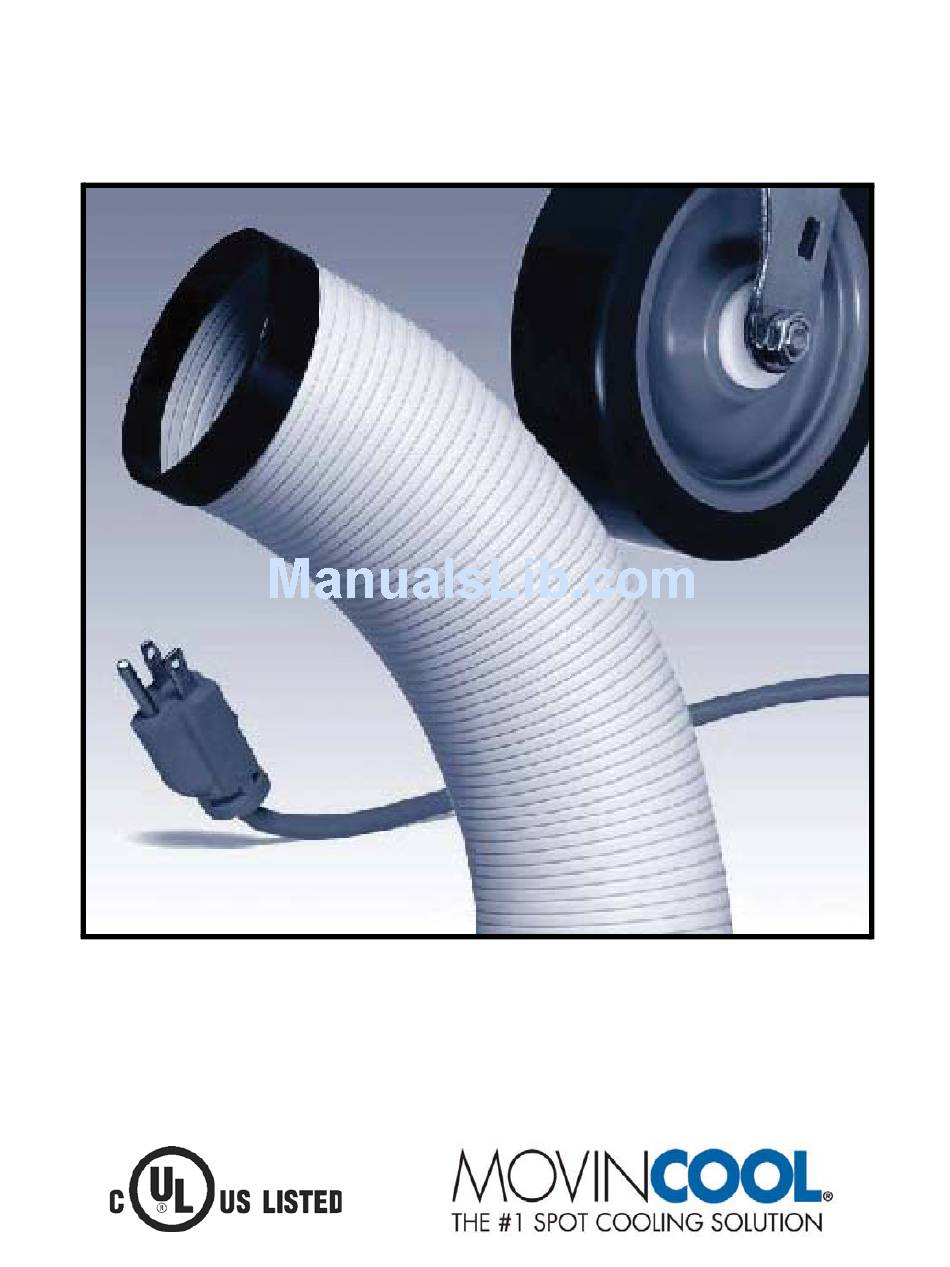

OPERATION
MANUAL
OFFICE PRO 36 and OFFICE PRO 60
READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT
INSTALLATION AND USAGE AND READ ALL SAFEGUARDS
SECCIÓN EN ESPAÑOL
SECTION EN FRANÇAIS
AVAILABLE AT WWW.MOVINCOOL.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OfFice Pro 36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Movincool OfFice Pro 36

  • Page 1: Operation Manual

    OPERATION MANUAL OFFICE PRO 36 and OFFICE PRO 60 READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE AND READ ALL SAFEGUARDS SECCIÓN EN ESPAÑOL SECTION EN FRANÇAIS AVAILABLE AT WWW.MOVINCOOL.COM...
  • Page 2 © 2009 DENSO SALES CALIFORNIA, INC. All rights reserved. This book may not be reproduced or copied, in whole or in part, without the written permission of the publisher. DENSO SALES CALIFORNIA, INC. reserves the right to make changes without prior notice.
  • Page 3 OPERATION MANUAL OFFICE PRO 36 and OFFICE PRO 60...
  • Page 4: Table Of Contents

    Table of Contents FOREWORD....................... 5 Definition of Terms....................5 GENERAL WARNINGS & CAUTIONS .............. 6 INVENTORY ....................... 7 INSTALLATION....................8 Choosing an Installation Site ................8 Moving the Unit ....................9 Plugging in the Unit ..................10 Warning Signal Connection ................11 Fire Alarm Control Panel Connection ............12 LCDI Power Cord Instruction .................13 FEATURES.......................
  • Page 5: Foreword

    FOREWORD Congratulations on purchasing the MovinCool portable air conditioner. This manual explains how to assemble, install and operate the MovinCool Office Pro 36, and Office Pro 60 portable air conditioning units. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation.
  • Page 6: General Warnings & Cautions

    GENERAL WARNINGS & CAUTIONS 1. All electrical work, if necessary, should only be performed by qualified electrical personnel. Repair to electrical components by non-certified technicians may result in personal injury and/or damage to the unit. All electrical components replaced must be genuine MovinCool parts, purchased from an authorized reseller.
  • Page 7: Inventory

    INVENTORY After unpacking your MovinCool unit, please check to make sure you have the following items: 1. Office Pro 36 or Office Pro 60 MovinCool Unit (1) 2. Operation Manual / Product Registration (1) Note: If any of these items were not included in the box or appear damaged, please contact your MovinCool reseller for replacement.
  • Page 8: Installation

    INSTALLATION Choosing an Installation Site CAUTION: Following are some precautions to consider before choosing your installation site. Please review carefully as improper installation may result in personal injury or damage to the unit. 1. Do not use the unit in areas where leakage of flammable gas may occur. 2.
  • Page 9: Moving The Unit

    INSTALLATION (cont.) Moving the Unit Unlock all 4 casters and push the MovinCool unit, using the front or rear handles, to a flat, level surface and set the casters back to the LOCKED position. UNLOCKED LOCKED UNLOCKED LOCKED...
  • Page 10: Plugging In The Unit

    INSTALLATION (cont.) Plugging in the Unit 1. Check the prong and surface of the power cord plug for dust/dirt. If dust and/ or dirt are present, wipe off with a clean, dry cloth. 2. Check the power cord, plug and prong for damage or excess play. If any damage or excess play is found, contact your MovinCool reseller for repair.
  • Page 11: Warning Signal Connection

    INSTALLATION (cont.) Warning Signal Connection (Output Signal Terminal L+ and L-) The controller is equipped with a warning signal output relay type (Form C, normal open dry contact) which can be used to monitor the failure condition. Relay contactor (not connector) is closed when the following condition has occurred: a.
  • Page 12: Fire Alarm Control Panel Connection

    INSTALLATION (cont.) Fire Alarm Control Panel Connection (Input Signal Terminal E+ and E-) The controller is equipped with a normal open input signal, which can be connected directly from the fire alarm control panel. When receiving the signal from the fire alarm control panel, the unit turns off and does not turn back on until it has been RESET.
  • Page 13: Lcdi Power Cord Instruction

    INSTALLATION (cont.) LCDI Power Cord Instruction (Office Pro 36 ONLY) WARNING The LCDI device is non-serviceable device. Attempting to open the device may expose the user to hazardous of electric shock, and could void warranties of this product. Manufacturer’s reliability is limited to the replacement of the device. CAUTION 1.
  • Page 14: Features

    FEATURES For all models: 1. A digital electronic control panel, which allows the user to control the unit’s operation easily. 2. Dual fan speeds (either HIGH or LOW) in both COOL and FAN ONLY modes. 3. Digital LCD display with blue backlight that indicates: a.
  • Page 15: Operation

    OPERATION Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. 1. COOL Mode Button Activates/deactivates the COOL mode/turns the unit off. 2. FAN Mode Button Activates/deactivates the high, low, and off fan speed.
  • Page 16: Lcd Indicators

    OPERATION (cont.) (cont.) Control Panel LCD Indicators 9. MO...SU Illuminates to indicate selected day of the week. 10. °C or °F Temperature displayed in either Fahrenheit or Celsius (see Note). 11. AM/PM Illuminates to indicate AM or PM time of day. 12.
  • Page 17: Set Clock

    OPERATION (cont.) Set Clock Prior to operating the Office Pro 36 or Office Pro 60 users should set the clock of the controller to the correct time as shown in the steps below. 1. Press and hold the SET CLOCK button for 3 seconds or until beep.
  • Page 18: Operating In Fan Only Mode

    OPERATION (cont.) Operating in FAN ONLY Mode 1. The unit can also be operated in FAN ONLY mode by pressing FAN HI/LO button (LCD indicates “FAN HI/LO” and “COOL OFF”). 2. The unit can then be turned off by pressing the FAN HI/LO button until fan turns off (FAN ONLY mode speed sequences are HI→LO→OFF).
  • Page 19: How To Set A Program

    OPERATION (cont.) How to Set a Program SET START TIME 1. Press and hold the SET PROG button for 3 seconds or until beep. 2. Press SET TEMP buttons to select day of the week. 3. Press ENTER button. Step 1 & 18 4.
  • Page 20: How To View And Delete Program

    OPERATION (cont.) How to View and Delete Program 1. Press and hold the SET PROG button for 3 seconds or until beep. 2. To view edited program - While pressing and holding the SET PROG button, press SET TEMP ( ) to scroll the program sequence.
  • Page 21: Operating Modes

    OPERATION (cont.) Operating Modes Office Pro 36 and Office Pro 60 operate in 2 modes, FAN ONLY and COOL. When in FAN ONLY mode, the unit circulates the surrounding air, Office Pro 60 is equipped with an automatic fan speed control when operating in FAN ONLY mode.
  • Page 22: Self-Diagnostic Codes

    OPERATION (cont.) Self-Diagnostic Codes Self-diagnostic codes are displayed on the control board under the following conditions: LCD Display Codes Condition When the drain tank switch shuts off the unit, LCD displays “TANK FL” and “TANK FULL” LED flashes. Once emptying the drain tank procedure is completed and ON/OFF has been pushed, unit returns to normal operation.
  • Page 23: Empty The Drain Tank (If Equipped)

    OPERATION (cont.) Empty the Drain Tank (If equipped) During COOL mode, condensate water accumulates in the drain tank. When the drain tank becomes full, the “TANK FULL” LED flashes and LCD displays “TANK FL”, and the alarm signal output is turned ON and the unit turns off automatically. Note: If you want to empty the drain tank, while the unit is in operation, press the COOL ON/OFF button to turn the unit off.
  • Page 24: Drain Pump

    OPERATION (cont.) Drain Pump A drain pump is included for the Office Pro 60 model only, for the Office Pro 36 the drain pump is an optional accessory item. The drain pump provides a continuous operation and eliminates the need for a drain tank.
  • Page 25: Hose Installation

    HOSE INSTALLATION Note: The Office Pro 60 is equipped with a 20 foot (6m) hose. Connect the 20 foot (6m) hose to the drain stem and feed it through the grommet on the right hand side of the unit. DRAIN STEM DRAIN HOSE DRAIN HOSE DRAIN HOLE...
  • Page 26: Daily Inspection & Maintenance

    DAILY INSPECTION & MAINTENANCE Empty the Drain Tank To empty the drain tank, refer to instructions on page 23. Clean the Air Filters Clean the air filters once a week. If the unit is used in a dusty environment, more frequent cleaning may be required.
  • Page 27: Filter Cleaning Method

    DAILY INSPECTION & MAINTENANCE (cont.) Filter Cleaning Method 1. Remove dust from the element with a vacuum FILTER cleaner, or rinse in cold or lukewarm water. If the element is extremely dirty, wash with a neutral detergent. 2. After the element has been cleaned, rinse with clean running water, allow to dry, then reinstall.
  • Page 28: Troubleshooting

    TROUBLESHOOTING Check the following items before calling a qualified technician. SYMPTOM POSSIBLE CAUSE REMEDY 1. Ground fault breaker trip or Reset breaker or reset power Unit does not operate. LCDI power cord trip. cord. 2. Drain tank is full. Empty the drain tank. (“TANK FULL”...
  • Page 29: Technical Specificatons

    TECHNICAL SPECIFICATONS ITEMS/FEATURES Office Pro 36 Office Pro 60 Rating Conditions Dry bulb 95°F(35°C) 95°F(35°C) Wet bulb 83°F(28.2°C) 83°F(28.2°C) Humidity (60%) (60%) Specifications Power frequency 60Hz 60Hz Line voltage Single Phase 208/230V Single Phase 208/230V Power consumption 4.3/4.3kw 6.6/6.6kw Current consumption 21.4/19.6Amps 32/29Amps Power factor...
  • Page 30: Limited Warranty

    The aforesaid warranty is the only warranty made by DENSO with respect to the Products and is in lieu of all obligations or liabilities on the part of DENSO for damages arising out of or in connection with the sale, use or performance of the Products, including, without limitation, any lost profits or any other consequential, incidental, special or exemplary damages of any kind.
  • Page 31 DENSO SALES CALIFORNIA, INC. Long Beach, CA 90810 www.movincool.com P/N: 484007- 2143EN Fourth Issue: December 2009...
