Extron electronics DTP DVI 230 D Setup Manual

DTP DVI 230 D and HDMI 230/330 D • Setup Guide
This setup guide provides instructions for an experienced installer to set up and operate the
Extron DTP DVI 230 D and DTP HDMI 230 and 330 D extenders.

DVI-D

Installation

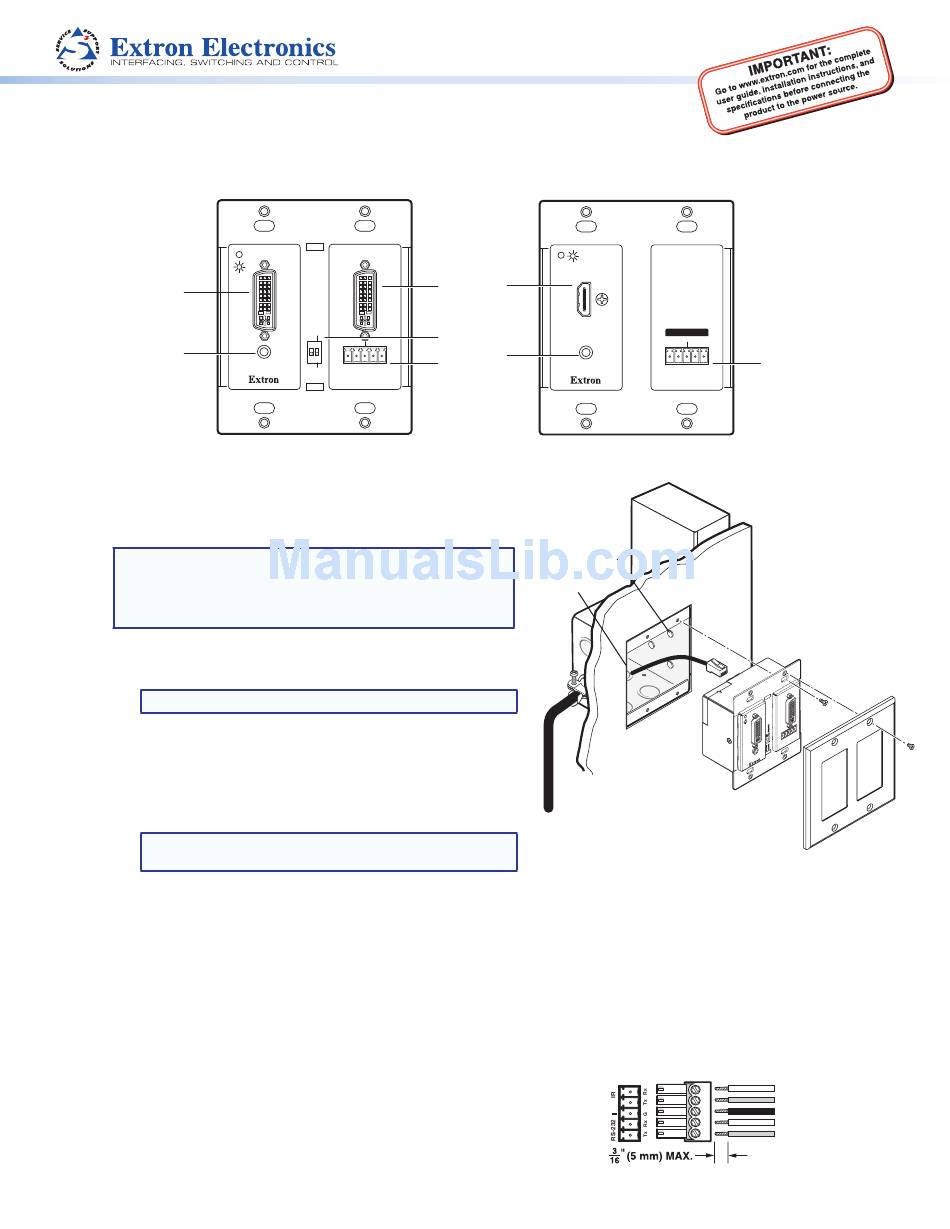

Step 1 — Prepare the Mounting Surface
NOTE: Use a wall box with a depth of at least 3.0 inches (7.6 cm).
Alternatively, the included mud ring (MR 200) can be used.
For more information, see the full product user guides at
www.extron.com. The installation must comply with the
National Electric Code.
a. Place the wall box against the installation surface and mark the
opening guidelines.
TIP: Use a level to mark the opening.
b. Cut out the material from the marked area.
c. Secure the wall box with 10-penny nails or #8 or
#10 screws, leaving the front edge flush with the surface.
d. Run all required cables (see steps 4, 5, and 6) and secure them with
cable clamps.
TIP: In order to fit the unit in the junction box, do not install
boots on TP cables and RJ-45 connectors.
Step 2 — Disconnect Power
Disconnect all equipment power sources.
Step 3 — Connect Inputs to the Transmitter
A DVI or HDMI input connector — Connect a DVI or HDMI cable between this port and the output port of the digital video source.
B Local output (DTP DVI 230 D only) — If desired, connect a DVI monitor for local monitoring of the input digital image.
C DDC Route DIP switch (DTP DVI 230 D only) — If the local output is not used,
set the DDC Route DIP switch to remote. Ensure that you power the local display
before powering the video source.
Audio input — Connect an unbalanced stereo audio source to this 3.5 mm mini
D
stereo jack.
RS-232/IR Pass-Through connector — Plug an RS-232 or modulated IR device
E
into the RS-232/IR Pass-Through port. Wire the cable as shown to the right.
INPUTS LOCAL OUT
DDC
ROUTE
REMOTE
RS-232 IR
ON
AUDIO
1 2
Tx Rx G Tx Rx
LOCAL
DTP DVI 230 D Tx
U T
L O
C A
L O
T S
P U
IN
IR
2
-2 3
R S
R x
I- D
D V T x
G
R x
T x
D IO
A U
INPUTS
 


AUDIO

DTP HDMI 230/330 D Tx
Wall Stud
Screws or
Nails
Wall opening is
flush with edge of box.
Cable
Clamp
Signal Output
Cable
Tx/Rx
OVER DTP
RS-232 IR

Tx Rx G Tx Rx
U T
L O
C A
L O
T S
P U
IN
IR
2
-2 3
R S
I- D R x
D V T x
G
R x
T x
D IO
A U
Extron
DTP DVI 230 D
Decora Faceplate
Connected RS-232
and IR Device Pins
Pins
Transmit pin on connected unit
Receive pin on connected unit
Ground
Transmit pin on connected unit
Receive pin on connected unit
