Upper Modular Zone

6
The upper modular zone consists of a top drive tray coupled with either a horizontal or vertical
PCIe cage on the right of the chassis.

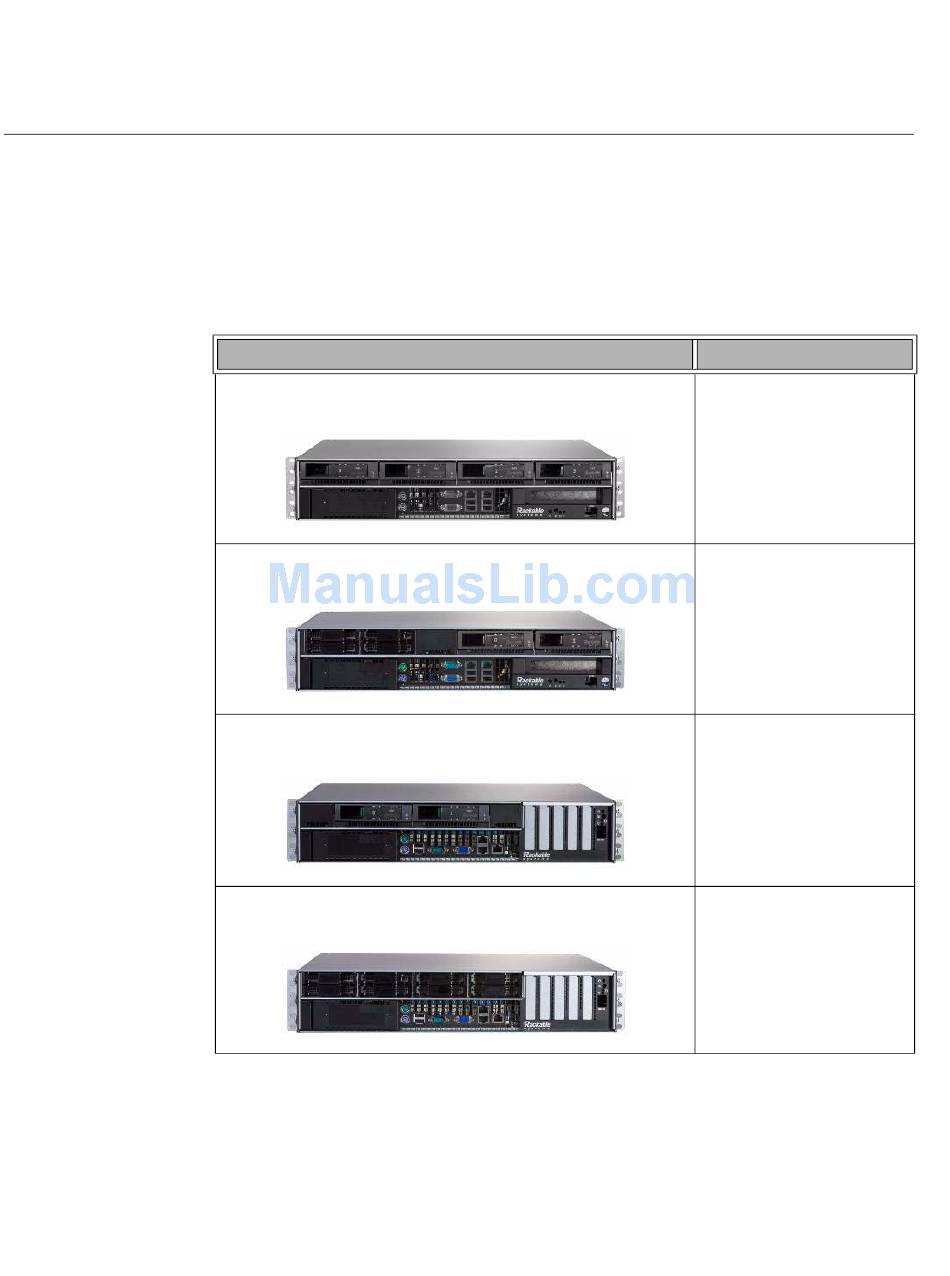

Table 1-2 Storage Configuations—Upper Modular Zone
Storage Configuration
Four 3.5" hot-swap drives
Two 3.5" and four 2.5" hot-swap drives
Two 3.5" hot-swap drives
Eight 3.5" hot-swap drives
Table 1-2 describes the configuration options.
Expansion Slots
One PCIe slot on riser
One PCIe slot on riser
Up to five low-profile slots
Up to five low-profile slots
