Isolated Uninterruptible Power Supply Models:
Detailed SG Series product specifications are available in PDF format at
FALCONElectric Inc., 5116 Azusa Canyon Rd., Irwindale, California 91706, (626) 962-7770, Fax 626-962-7720, Email: sales@falconups.com
®
2006 Falcon
®
Electric Inc. All rights reserved.
All other brand names and trademarks are the property of their respective owners.
The information stated in this document is subject to change without notice. 2006-02-24
®
Falcon
, Falcon® Electric and UPS Plus logos are registered trademarks of Falcon Electric Inc
Rev. F

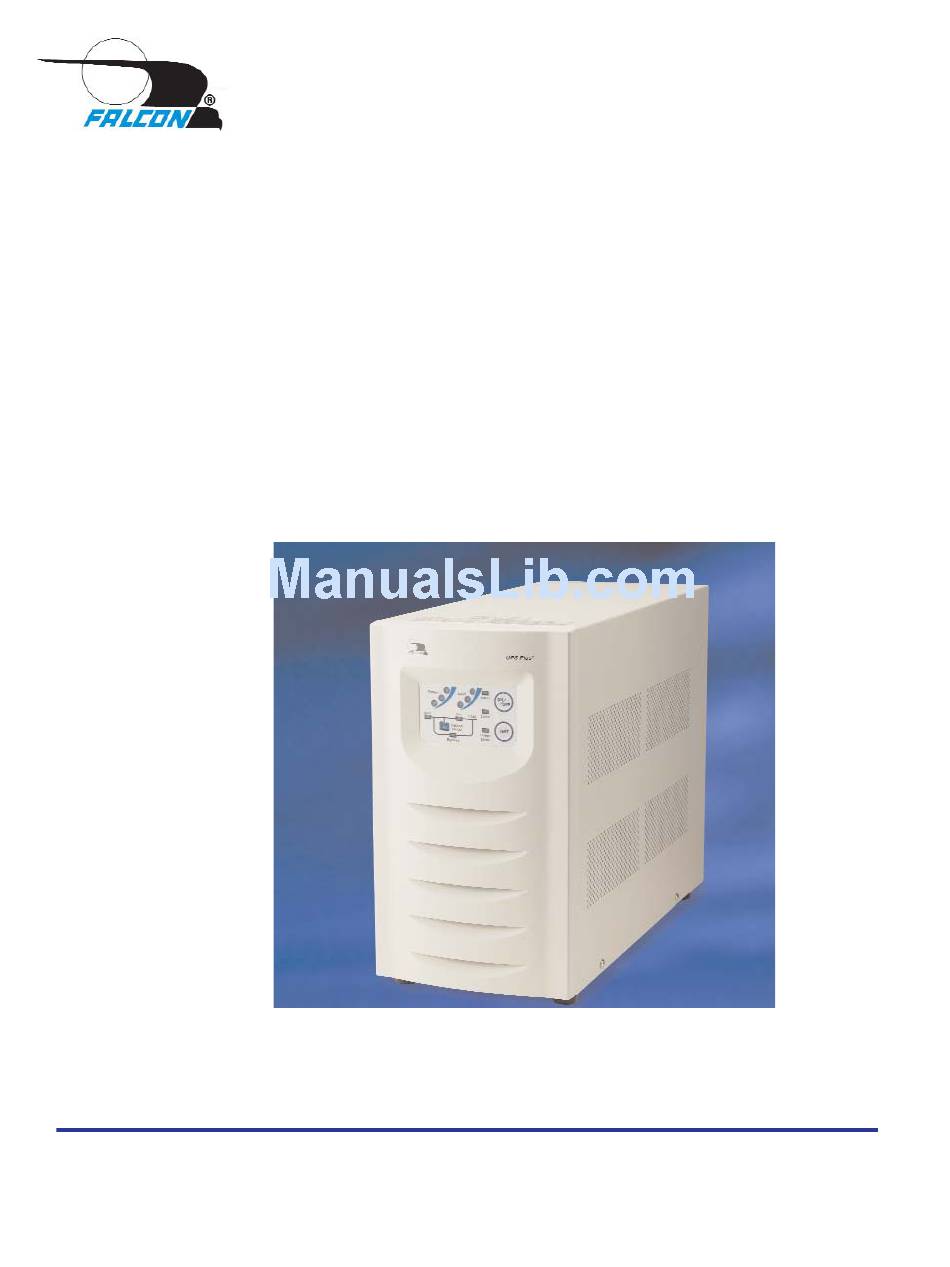

OWNER'S
OPERATING
MANUAL
SG2K-X1T
SG2K-X2T
SG3K-X1T
SG3K-X2T
www.falconups.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Falcon SG2K-X1T
Summary of Contents for Falcon SG2K-X1T
- Page 1 All other brand names and trademarks are the property of their respective owners. The information stated in this document is subject to change without notice. 2006-02-24 ® Falcon , Falcon® Electric and UPS Plus logos are registered trademarks of Falcon Electric Inc Rev. F...
-
Page 2: Table Of Contents
Front Panel Function Description Audible Alarms Category One Alarms . Category Two Alarms . Chapter 4. Rear Panel Details SG2K-X1T & SG3K-X1T Rear Panel. SG2K-X2T & SG3K-X2T Rear Panel Chapter 5. Communications Interfaces. RS-232 Interface (DB-9) Communications Option Slot . -
Page 3: Sg Ups Features
SG SERIES UPS FEATURES Input Galvanic Isolation With Low Leakage Current True Double Conversion On-Line Design Input Power Factor Correction Wide Input Voltage Window Pure Sinewave Output Precision Output Voltage Regulation Superior Brownout, Surge and Transient Protection Internal System Bypass Eliminates Generator Frequency &... -
Page 4: Important Safety Instructions (Read First)
CAUTION This UPS utilizes voltage that may be hazardous. Do not attempt to disassemble. This unit contains no user replaceable parts. Refer all servicing to Falcon Electric, Inc. CAUTION THIS UPS IS NOT INTENDED TO BE USED IN CONJUNCTION WITH LIFE SUPPORT OR OPERATING ROOM EQUIPMENT. -
Page 5: Sg Series Ups Overview
"building friendly" UPS. Microprocessor Control Falcon Electric's SG Series UPS incorporates advanced microprocessor technology. This tech- nology makes possible a high level of internal UPS control and management. With the supplied UPSILON ®... -
Page 6: Extended Battery Bank Option
Whether your application requires a few additional minutes or hours, the SG Series will be ready. Falcon also offers optional battery charger upgrades for faster recharging. Please specify your extended battery and charger requirements at the time of your initial order. -
Page 7: Installation Instructions
CHAPTER CHAPTER INSTALLATION INSTRUCTIONS Verify the following is included in the UPS shipping carton: (1) UPS, (1) Software Diskette(s) & Manual, (1) Owners Manual & (1) UPS/Computer Cable. Verify the UPS unit is configured for the proper input/output voltage and frequency. This information is stated on the nameplate label located on the rear or the side panel of the unit. - Page 8 UPS/Computer cable to the DB-9 connector located on the UPS rear panel. Then install the shutdown and monitoring software provided with the UPS. For your reference, UNIX shutdown and monitoring software is available from Falcon Electric at an additional cost.
-
Page 9: Dip Switch Settings Diagrams
VIEW OF DIP SWITCHES LOCATED ON THE UPS REAR PANEL OFF = 0 SWITCHES ON = 1 SELECTION TABLE SWITCH SETTINGS FOR -1 MODELS VOLTAGE Down Down 100V Down 110V Down 120V (Factory default) 115V SWITCH SETTINGS FOR -2 MODELS VOLTAGE Down Down... -
Page 10: Extended Battery Bank Interconnection
TYPICAL EXTENDED BATTERY BANK & UPS INTERCONNECTION (Mini-tower models shown; same applies for floor standing banks) TYPICAL 1ST CABLE BATTERY CONNECTOR TO ADD MORE BANKS, DAISY CHAIN TO NEXT BANK FROM THIS 2ND CABLE BATTERY FUSE OPTIONAL BATTERY OPTIONAL BATTERY CHARGER CIRCUIT CHARGER CIRCUIT BREAKER... -
Page 11: Extended Battery Bank Selection Guide
SG 2-3kVA TOWER EXTENDED BATTERY BANK SELECTION GUIDE FOR 2KVA MODELS BATTERY OPTION MODELS SGB2S7-2K3 SGB2S7-2K3 SGB5S7-2K6 SGB2S7-2K3 SGB5S7-2K6 SGB5S7-2K6 W/O Charger 12 Pieces of 12V, 24 Pieces of 12V, 30 Pieces of 12V, 36 Pieces of 12V, 60 Pieces of 12V, 90 Pieces of 12V, BATTERIES BATTERIES IN UPS... -
Page 12: Operation
CHAPTER CHAPTER OPERATION UPS FRONT PANEL INDICATOR AND FUNCTION KEYS LOAD LEVEL INDICATOR LEDS *The first or bottom LED is lit when the output load is greater than 25% of the rated output of the UPS. *The second LED is lit when the output load is greater than 50% of the rated output of the UPS. - Page 13 BYPASS INDICATOR LED When this LED is lit the UPS bypass is active. Should the Alarm LED be lit at the same time, the UPS detected an internal failure and the UPS must be serviced. INVERTER INDICATOR LED When this LED is lit, the UPS inverter is operating and powering the connected load. GREEN MODE LED INDICATOR This LED is lit when the connected output load of the UPS drops to under 10% of the full rated output of the UPS, providing SW3 is in the "down"...
-
Page 14: Audible Alarms
AUDIBLE ALARMS Audible alarm signals are divided into two different levels of alarm status. Category one alarms represent normal or correctable operational alarms. Category two alarms are sounded in the event of abnormal operation. Category one alarms: a. Two short beeps followed by three short beeps. Notifies the user that the SG UPS is configured with the optional battery pack and is in BATTERY MODE. -
Page 15: Rear Panel Details
SG2K-XT & SG3K-X1T Typical Rear Panel Overview DIP SWITCHES COVER PLATE FOR OPTIONAL SNMP AGENT RS-232 CONNECTOR EXTERNAL BATTERY CONNECTOR COVER PLATE COOLING FANS DO NO BLOCK BATTERY FUSE Optional Receptacle OUTPUT FUSE S Configuration (2 places) Shown Contact Factory For Other Configurations OPUTPUT... -
Page 16: Communications Interfaces
Internal SNMP/HTTP agent option installed into the UPS communications option slot. The following options WILL NOT affect the operation of the RS-232 port: Falcon Opto Coupler based signal interface board installed to the communications option slot. Any Falcon relay based, dry contact signal interface board installed into the communications option slot. -
Page 17: Contact Closure & Opto Interface Options
DRY CONTACT & OPTO COUPLER INTERFACE BOARD OPTIONS Typical Falcon Dry Contact Relay Board DB-9 PIN & JUMPER ASSIGNMENT FOR THE FALCON UA88374 RELAY OPTION BOARD (no on-bypass signal) DESCRIPTION Low Battery ( When UPS reaches low battery, contact activates) (J1, 1-2 short = N.O) (J1, 2-3 short = N.C) - Page 18 Typical Falcon Opto-coupler Interface Card PIN ASSIGNMENT FOR THE FALCON UA88373 OPTO-COUPLER OPTION BOARD (no-bypass signal) DESCRIPTION Not Used Utility Loss (N.O.) (Closes upon utility loss) Utility Loss (N.C.) (Opens upon utility loss) Common for pins 2, 3 & 5 Low Battery (N.O.) (Closes at low battery)
- Page 19 APC Style Dry Contact Relay Board PIN & JUMPER ASSIGNMENT FOR THE FALCON UA88377 RELAY OPTION BOARD (APC Style Board) DESCRIPTION Remote Shutdown (on battery operation only) Remote Shutdown Common Not Used Low Battery Common Low Battery (N.O.) Not Used...
-
Page 20: Maintenance & Technical Support
In home, office or computer room environments, the batteries should be replaced every three to five years. Should you require battery replacement contact the Falcon Service Department (see page 20 for contact information). WARNING Never attempt to service batteries. -
Page 21: Storing The Ups And Batteries
The following precautions should be observed by a qualified technician when working with batteries. Remove watches, rings, or other metal objects. Use tools with insulated handles. Wear rubber gloves and boots. Do not lay tools or metal parts on top of batteries. Storing the UPS and Batteries Should you need to store the UPS for a long period, fully recharge the battery just prior to storage and recharge the battery every 4 months by plugging the... -
Page 22: Technical Support & Rma Procedure
You may request technical information or support by email or telephone. Please send your technical or support questions by email to: SUPPORT@FALCONUPS.COM You may contact a FALCON support engineer directly by calling the FALCON support line between 9:00 am and 4:00 pm PST. 800.842.6940 FALCON Web Support Product data sheets, specification and owner’s manuals are available in... -
Page 23: Warranty
GENERAL PROVISIONS FALCON® ELECTRIC INC., hereby warrants product shipped under this agreement to be free from defective workmanship for a period of two years following date of shipment. This Limited New Product Warranty Agreement only applies to covered repairs to the product occurring within the United States and Canada. -
Page 24: Specifications
SG Series UPS PLUS ® 2kVA & 3kVA Isolated Input Model Number SG2K-X1T SG2K-X2T SG3K-X1T SG3K-X2T Nominal VA 2000 3000 Electrical Input Nominal AC Voltage 208V 208V (Factory configurable taps please 120V 220V 120V 220V specify at the time of order)
