Owner's Operation Manual
OWNER'S
GUIDE
ADDENDUM
UNINTERRUPTIBLE POWER SYSTEM
FOR MODELS:
SG1K-2T & SG1KRM-2T

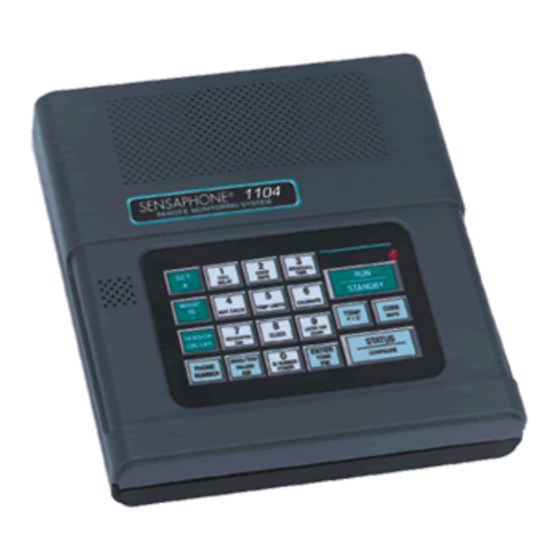

SENSAPHONE 1104
FALCON® ELECTRIC
5116 Azusa Canyon Road
Irwindale, CA 91706
Tel. 626-962-7770
Fax. 626 962-7720
WWW.FALCONUPS.COM
800.842.6940
The information contained herein is the property of FALCON® ELECTRIC, is proprietary, confidential, and
®
not to be disclosed, disseminated or used except for the purpose provided by FALCON
Electric, Inc.
OM48204
7/03
Advertisement
Related Manuals for Falcon SG1K-2T
Summary of Contents for Falcon SG1K-2T
- Page 1 Irwindale, CA 91706 Tel. 626-962-7770 Fax. 626 962-7720 WWW.FALCONUPS.COM 800.842.6940 The information contained herein is the property of FALCON® ELECTRIC, is proprietary, confidential, and ® not to be disclosed, disseminated or used except for the purpose provided by FALCON Electric, Inc. OM48204...
- Page 2 CAUTION This device utilizes voltage that may be hazardous. Do not attempt to disassemble . This unit contains no user replaceable parts. Refer all servicing to Falcon Electric, Inc. CAUTION This device is not intended to be used in conjunction with life support or operating room equipment.
- Page 3 This will save you time and effort in your installation and applica- tion. The illustrations will also familiarize you with the equipment operating and pro- gramming modes as well as indications. Always operate this equipment within the guidelines and specifications. SENSAPHONE 1104 SG1K-2T UPS SG1KRM-2T UPS...
-
Page 4: Installation
To file a claim for shipping damage or concealed damage: 1) File with the carrier within 15 days of receipt of the equipment; 2) Send a copy of the damage claim within 15 days to the Falcon ® Service Department. - Page 5 SG1K-2T UPS REAR PANEL DETAILS SG UPS DIP SWITCHES SENSAPHONE PORT A Please refer to the SG Owner’s Connect Sensaphone interface cable Manual for details DB-9 male here SENSAPHONE PORT B SG UPS RS-232 PORT Connect Sensaphone interface cable DO NOT CONNECT SENSAPHONE...
- Page 6 Connect the input power plugs for the equipment you want on all of the time to the non-switched UPS outlet 3. This outlet is battery backed up. UPS OUTLET 4 (BOTTOM OUTLET for SG1K-2T), (OUTLET TO THE RIGHT FOR SG1KRM-2T) IS RESERVED FOR CONNECTING THE SENSAPHONE INPUT PLUG.
- Page 7 CHAPTER 3 CHAPTER 3 Preliminary Operating Instruction SENSAPHONE CABLE CONNECTIONS & ASSOCIATED ALERT CONDITIONS TEMPERATURE SENSOR GND5 Used SENSAPHONE REAR PANEL GND1 GND2 GND3 GND4 UPS & INTERFACE CABLE CONNECTIONS GND1 Temperature Sensor Return "Temperature Alert Condition 1" 1. ---- Temperature Sensor Signal GND2 Utility Loss Return (orange wire) "Alert Condition 2"...
-
Page 8: Interface Cable
UPS OUTLET CONTROL (outlets 1 & 2 only) Follow the instructions in the Sensaphone X10 manual for details concerning the remote and local control of this function. Should you want to test this output control function while the UPS is operating do the following: TO TURN ON THE UPS OUTLETS 1 &... -
Page 9: Technical Support
You may request technical information or support by Email or telephone. Please send your technical or support questions by Email to: SUPPORT@FALCONUPS.COM You may contact a FALCON support engineer directly by calling the FALCON support line between 9:00 am and 4:00 pm PST. 626.962.7770 FALCON Web Support Product data sheets, specification and owner’s guides are available in Adobe...
