Uninterruptible Power Supply Models:
Detailed SG Series product specifications are available in PDF format at
FALCONElectric Inc., 5116 Azusa Canyon Rd., Irwindale, California 91706, (626) 962-7770, Fax 626-962-7720, Email: sales@falconups.com
®
2007 Falcon
®
Electric Inc. All rights reserved.
All other brand names and trademarks are the property of their respective owners.
The information stated in this document is subject to change without notice. 2007-03-20
®
Falcon
, Falcon® Electric and UPS Plus logos are registered trademarks of Falcon Electric Inc
OM48021-1-3KRM Rev. G

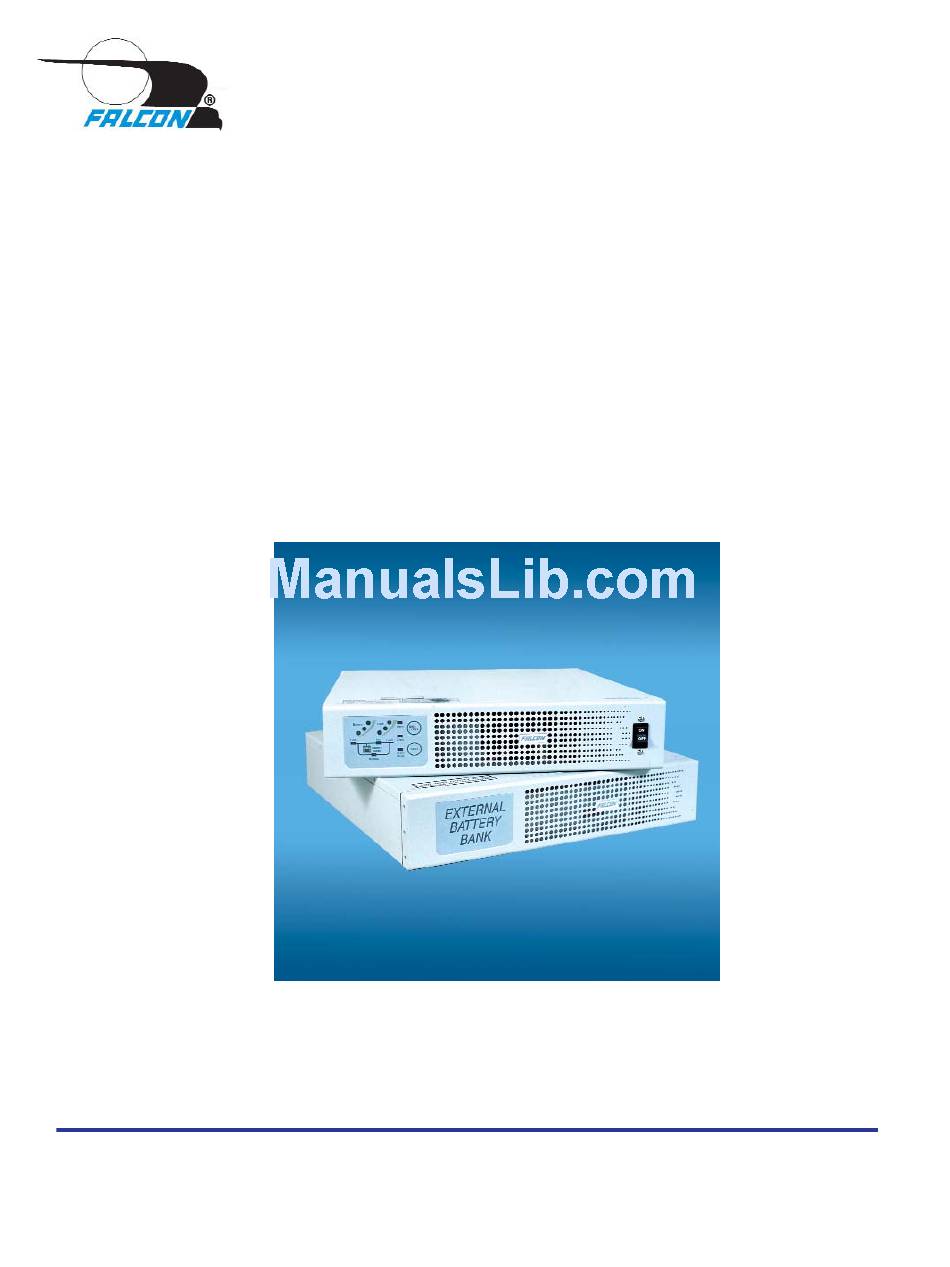

OWNER'S
OPERATING
MANUAL

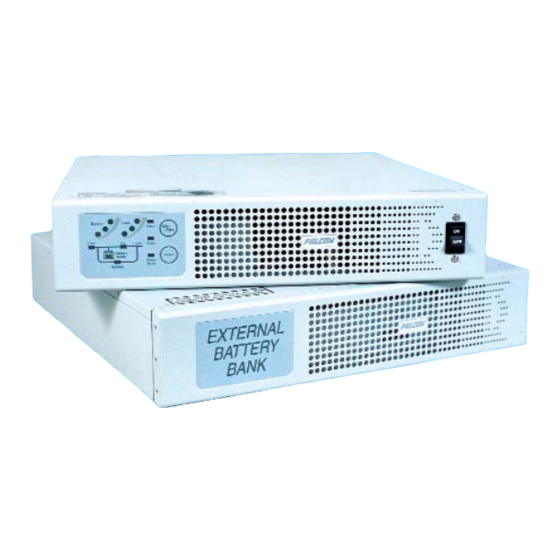

Rackmount SG Series UPS Plus
SG1KRM-1TU, SG1KRM-2TU
SG2KRM-1TU, SG2KRM-2TU
SG3KRM-1TU, SG3KRM-2TU
®
www.falconups.com
Advertisement
Table of Contents
Related Manuals for Falcon RACKMOUNT SG SERIES UPS PLUS SG1KRM-1TU
Summary of Contents for Falcon RACKMOUNT SG SERIES UPS PLUS SG1KRM-1TU
- Page 1 All other brand names and trademarks are the property of their respective owners. The information stated in this document is subject to change without notice. 2007-03-20 ® Falcon , Falcon® Electric and UPS Plus logos are registered trademarks of Falcon Electric Inc OM48021-1-3KRM Rev. G OWNER'S OPERATING...
-
Page 2: Table Of Contents
Battery Life vs. Temperature . Battery Replacement . Storing the UPS and Batteries. FCC Considerations Technical Support & RMA Procedure . Requesting Technical Information or Support. FALCON Web Support . Warranty Specifications . SG1KVA - SG3KVA Rackmount Models. TABLE OF CONTENTS... - Page 3 SG SERIES UPS FEATURES True Double Conversion On-Line Design Input Power Factor Correction Wide Input Voltage Window Pure Sinewave Output Precision Output Voltage Regulation Superior Brownout, Surge and Transient Protection Internal System Bypass Eliminates Generator Frequency & Voltage Drift Microprocessor Control & RS-232 Communications UPSILON ®...
-
Page 4: Important Safety Instructions (Read First)
This UPS utilizes voltage that may be hazardous. Do not attempt to disassemble. This unit contains no user replaceable parts. Refer all servicing to Falcon Electric, Inc. THIS UPS IS NOT INTENDED TO BE USED IN CONJUNCTION WITH LIFE SUPPORT OR OPERATING ROOM EQUIPMENT. -
Page 5: Sg Series Ups Overview
Whether your application requires a few additional minutes or hours, the SG Series will be ready. Falcon also offers optional battery charger upgrades for faster recharging. Please specify your extended battery requirements at the time of your initial order. -
Page 6: Sg Rackmount Installation Instructions
RACKMOUNT UPS MOUNTING INSTRUCTIONS --- IMPORTANT--- NEVER MOUNT THE UPS OR ANY ASSOCIATED BATTERY BANKS USING ONLY THE FRONT PANEL MOUNTING EARS AS DAMAGE WILL RESULT! All Falcon rackmount UPS and battery modules are designed to be supported by a shelf mounted to both front and rear rails of the rack. - Page 7 Install a suitable shelf capable of supporting the weight of the UPS and batteries into the equipment rack. Install the shelf so the UPS and battery bank (if required) will sit directly on the surface of the shelf. Lift the UPS onto its rack shelf, slide it into the rack until the UPS front panel is flush with the racks front rails, securing it to the rails using four screws, (supplied by the rack manufacturer).
- Page 8 For all 1kVA & (-2) 2-3kVA models, connect the power cord to the UPS inlet located on the UPS rear panel. On (-1) 2 & 3Kva models the line cord is permanently attached to the UPS. Connect the power cord(s) for the equipment to be protected to the UPS output receptacles.
- Page 9 UPS/Computer cable to the DB-9 connector located on the UPS rear panel. Then install the shutdown and monitoring software provided with the UPS. For your reference, UNIX shutdown and monitoring software is available from Falcon Electric at an additional cost.
- Page 10 OPTIONAL SLIDE MOUNTING KIT (SGRMKIT) An slide mounting kit option is available from Falcon Electric. The part number for the kit is SGRMKIT and may be installed on any rackmount UPS and battery bank referenced in this manual. As all 2-3kVA models consist of seperate UPS and battery bank modules, two slide mounting kits are required , one for each module.
-
Page 11: Extended Battery Bank Selection Guide
SG RACKMOUNT EXTENDED BATTERY BANK SELECTION GUIDE BATTERY OPTION SG1KRM-1T MODEL BATTERIES 7AH x 3 Batteries & UPS BATTERIES IN UPS in same case # OF BATTERY CASES RUN TIME @ 100W 54 Min. RUN TIME @ 200W 25 Min. RUN TIME @ 400W 11.5 Min. -
Page 12: Chapter 3 Operation
OPERATION UPS FRONT PANEL INDICATOR AND FUNCTION KEYS LOAD LEVEL INDICATOR LEDS *The first or bottom LED is lit when the output load is greater than 25% of the rated output of the UPS. *The second LED is lit when the output load is greater than 50% of the rated output of the UPS. - Page 13 BYPASS INDICATOR LED When this LED is lit the UPS bypass is active. Should the Alarm LED be lit at the same time, the UPS detected an internal failure and the UPS must be serviced. INVERTER INDICATOR LED When this LED is lit, the UPS inverter is operating and powering the connected load. GREEN MODE LED INDICATOR This LED is lit when the connected output load of the UPS drops to under 10% of the full rated output of the UPS, providing SW3 is in the "down"...
-
Page 14: Audible Alarms
Audible alarm signals are divided into two different levels of alarm status. Category one alarms represent normal or correctable operational alarms. Category two alarms are sounded in the event of abnormal operation. Category one alarms: a. Two short beeps followed by three short beeps. Notifies the user that the SG UPS is configured with the optional battery pack and is in BATTERY MODE. -
Page 15: Front & Rear Panel Details
FRONT & REAR PANEL DETAILS Control & Display Panel (See Chapter 3, page 9) Power Cord Inlet (120Vac only) Input Fuse Cooling Fan (15A) Power Cord Inlet (200-240Vac only) Input Fuse Cooling Fan (8A) CHAPTER CHAPTER Typical Front Panel Overview (All models) Cooling Vents (exhaust) - Page 16 CIrcuit Breaker Cover (upper 2 receptacles (do not remove) Power Cord (120Vac only) Output Circuit Breaker (lower 2 receptacles) Cover Power Cord Inlet (200-240Vac only) (do not remove) Output Receptacles (4) IEC320 SG2KRM-1TU & SG3KRM-1TU Typical Rear Panel Overview Output Output Receptacles (4) 5-15R...
-
Page 17: Chapter 5 Communications Interfaces
Internal SNMP/HTTP agent option installed into the UPS communications option slot. The following options WILL NOT affect the operation of the RS-232 port: Falcon Opto Coupler based signal interface board installed in the communications option slot. Any Falcon relay based, dry contact signal interface board installed in to the communications option slot. - Page 18 DRY CONTACT & OPTO COUPLER INTERFACE BOARD OPTIONS Typical Falcon Dry Contact Relay Board DB-9 PIN & JUMPER ASSIGNMENT FOR THE FALCON UA88374 RELAY OPTION BOARD (no on-bypass signal) DESCRIPTION Low Battery ( When UPS reaches low battery, contact activates) (J1, 1-2 short = N.O) (J1, 2-3 short = N.C)
- Page 19 Typical Falcon Opto-coupler Interface Card PIN ASSIGNMENT FOR THE FALCON UA88373 OPTO-COUPLER OPTION BOARD (no-bypass signal) Not Used Utility Loss (N.O.) (Closes upon utility loss) Utility Loss (N.C.) (Opens upon utility loss) Common for pins 2, 3 & 5 Low Battery (N.O.) (Closes at low battery) Remote Shutdown Applying a +5-+12Vdc voltage level for >500ms,...
-
Page 20: Maintenance & Technical Support
In home, office or computer room environments, the batteries should be replaced every three to five years. Should you require battery replacement contact the Falcon Service Department (see page 20 for contact information). Never attempt to service batteries. High voltage exists within the unit, which could cause electrical shock. -
Page 21: Storing The Ups And Batteries
The following precautions should be observed by a qualified technician when working with batteries. Remove watches, rings, or other metal objects. Use tools with insulated handles. Wear rubber gloves and boots. Do not lay tools or metal parts on top of batteries. Storing the UPS and Batteries Should you need to store the UPS for a long period, fully recharge the battery just prior to storage and recharge the battery every 4 months by plugging the UPS... -
Page 22: Requesting Technical Information Or Support
You may request technical information or support by email or telephone. Please send your technical or support questions by email to: SUPPORT@FALCONUPS.COM You may contact a FALCON support engineer directly by calling the FALCON support line between 9:00 am and 4:00 pm PST. FALCON Web Support Product data sheets, specification and owner’s manuals are available in Adobe... -
Page 23: Warranty
GENERAL PROVISIONS FALCON® ELECTRIC INC., hereby warrants product shipped under this agreement to be free from defective workmanship for a period of two years following date of shipment. This Limited New Product Warranty Agreement only applies to covered repairs to the product occurring within the United States and Canada. -
Page 24: Specifications
All other brand names and trademarks are the property of their respective owners. The information and specifications stated in this document are subject to change without notice. Falcon Electric, Inc. - 5116 Azusa Canyon Rd. - Irwindale, CA91706 - 800.842.6940 Fax 626.962.7720 www.falconups.com - email: sales@falconups.com ®...
