Basic Description; Features - Alpha Technologies PDP – 00 Installation And Operating Instructions Manual

1

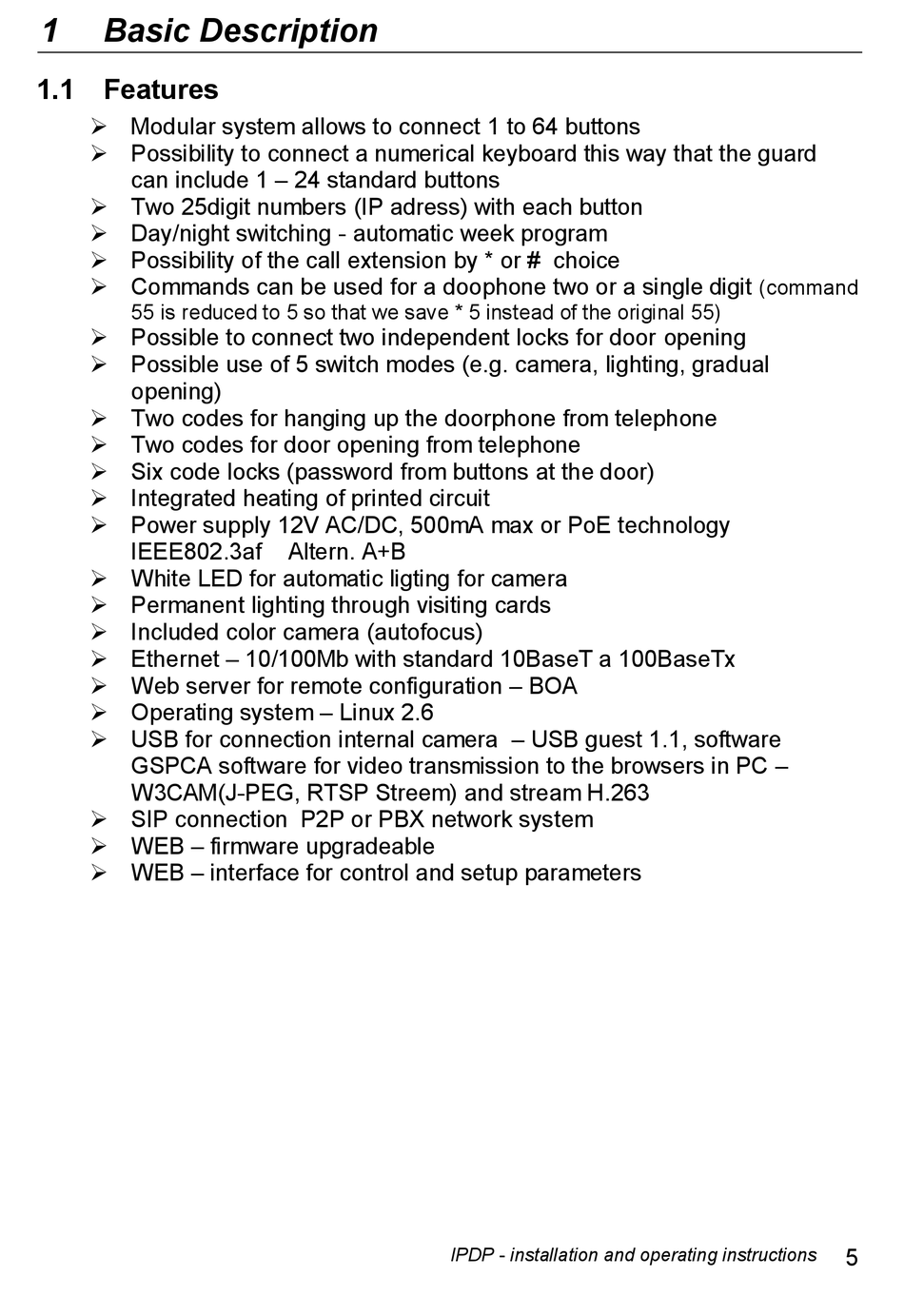

Basic Description

1.1 Features

 Modular system allows to connect 1 to 64 buttons
 Possibility to connect a numerical keyboard this way that the guard
can include 1 – 24 standard buttons
 Two 25digit numbers (IP adress) with each button
 Day/night switching - automatic week program
 Possibility of the call extension by * or # choice
 Commands can be used for a doophone two or a single digit
55 is reduced to 5 so that we save * 5 instead of the original 55)
 Possible to connect two independent locks for door opening
 Possible use of 5 switch modes (e.g. camera, lighting, gradual
opening)
 Two codes for hanging up the doorphone from telephone
 Two codes for door opening from telephone
 Six code locks (password from buttons at the door)
 Integrated heating of printed circuit
 Power supply 12V AC/DC, 500mA max or PoE technology
IEEE802.3af
 White LED for automatic ligting for camera
 Permanent lighting through visiting cards
 Included color camera (autofocus)
 Ethernet – 10/100Mb with standard 10BaseT a 100BaseTx
 Web server for remote configuration – BOA
 Operating system – Linux 2.6
 USB for connection internal camera – USB guest 1.1, software
GSPCA software for video transmission to the browsers in PC –
W3CAM(J-PEG, RTSP Streem) and stream H.263
 SIP connection P2P or PBX network system
 WEB – firmware upgradeable
 WEB – interface for control and setup parameters
Altern. A+B
IPDP - installation and operating instructions
(command
5
