3.4 BAGGER INSTALLATION FOR BAGGING

3.4.1 Stop engine, remove key, and wait for all moving parts to stop. Engage parking
brake.
3.4.2 Remove hairpin and chute pivot pin. Remove discharge chute. Pivot pin and
hairpin may be stored in the deck pivot holes of the discharge chute during
bagging operation.

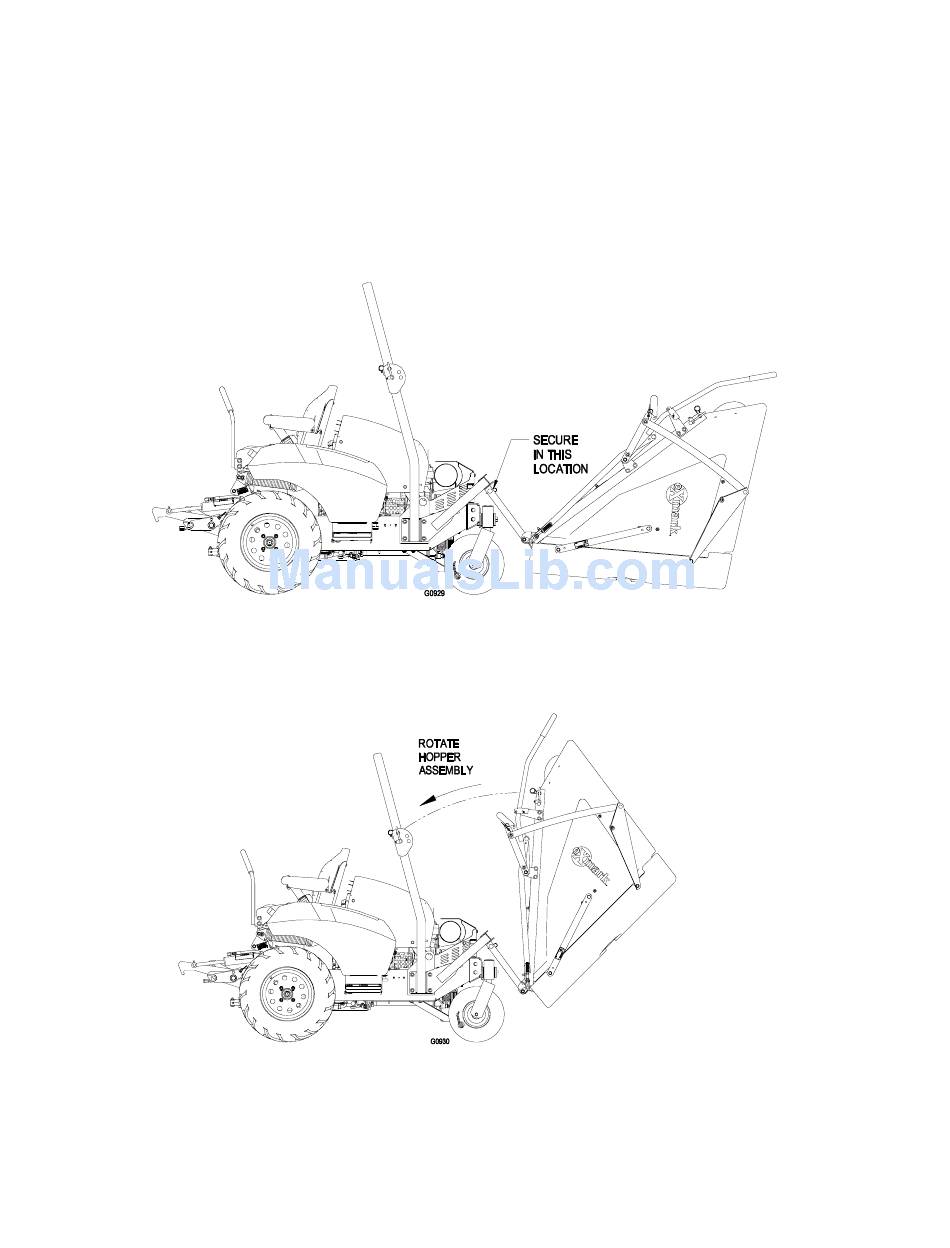

3.4.3 Lay the hopper assembly on the door as shown in Figure 4.
3.4.4 Install the hopper assembly onto the mount by rotating the lower hopper links
forward and slipping them over the pins of the lower mount weldment. Secure the
lower links to the mount using the hairpins.
3.4.5 Lift and rotate the hopper assembly up and align the upper pin holes with the
holes in the ROPS mount. Install the upper pins through the ROPS plates and
hopper frame tubes. Secure the upper pins with the attached hairpins.
3.4.6 Mount the blower on the deck by sliding the mounting pin into the tube at the rear
right corner of the deck. Swing the blower closed. Adjust the position of the front
pin to engage the slot in the front of the deck. Use the latch to lock the blower in
this position. Adjust the tension on the latch to hold the blower up to the deck, yet
allow for release by hand.
FIGURE 4
FIGURE 5
10
