3.3 BAGGER REMOVAL FOR SIDE DISCHARGE:

3.3.1 Shut off the deck drive, stop engine, wait for all moving parts to stop, and remove
key. Engage parking brake.
3.3.2 Remove the discharge tube by releasing the lock pin at the blower. Rotate and
pull the tube away from the blower outlet adapter.
3.3.3 Remove the belt cover by loosening the rear knob and removing the front knob.
The rear knob does not need to be removed completely to remove the belt cover.
3.3.4 Pull the idler release handle and remove the belt from the upper groove of the
deck sheave.
3.3.5 Unlatch the front end of the blower. Pivot the blower back and lift it off the deck.
3.3.6 Install the discharge chute using the chute pivot pin and hairpin (see Figure 3).

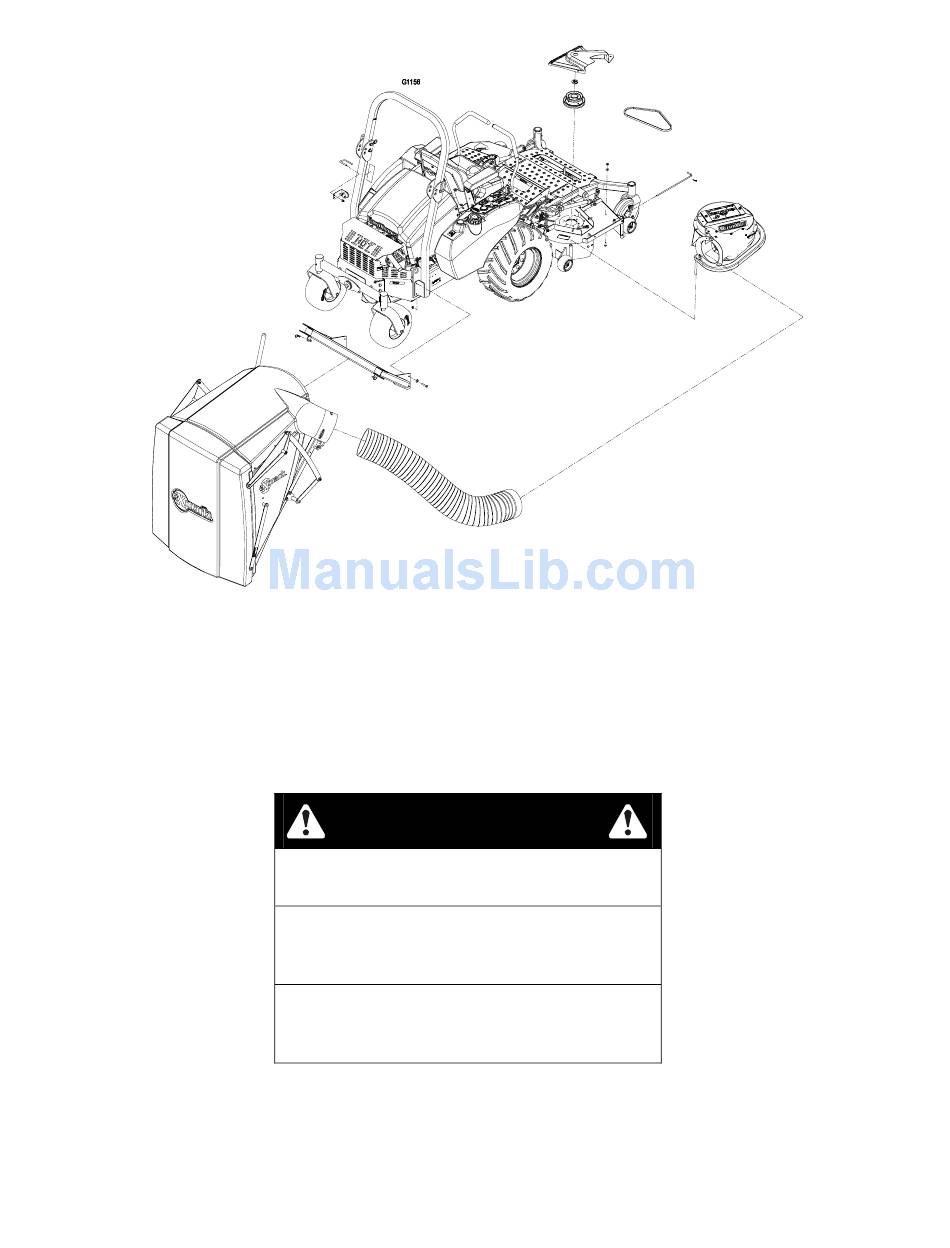

FIGURE 2
CAUTION
POTENTIAL HAZARD
♦ The deck sheave will become very hot.
WHAT CAN HAPPEN
♦ Touching a hot deck sheave can cause
severe burns.
HOW TO AVOID THE HAZARD
♦ Allow the deck sheave to cool completely
before removing the belt.
8
