- Page 1 ULTRAVAC ® COLLECTION SYSTEM 126-8680 For UltraVac Serial Nos. 411,294,212 & Higher (To fit Lazer Z Diesel Models 402,082,300 & Higher) Part No. 4505-880 Rev. A...
- Page 2 State of California to cause cancer, birth defects, or other reproductive harm. Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously.
-
Page 3: Introduction

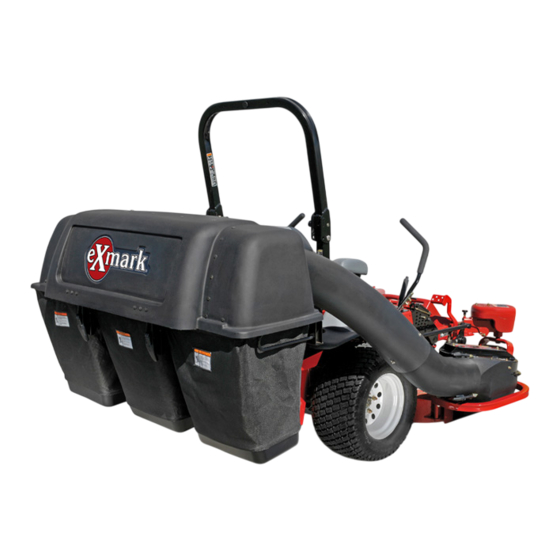

Introduction CONGRATULATIONS on the purchase of your Exmark UltraVac. This product has been carefully designed and manufactured to give you a maximum amount of dependability and years of trouble-free operation. This manual contains operating, maintenance, adjustment, and safety instructions for your Exmark UltraVac. -
Page 4: Table Of Contents
Contents Introduction ............3 Safety ..............5 Safety Alert Symbol ......... 5 General Safety Information ......5 Safety and Instructional Decals ....... 6 Specifications ............8 Systems ............8 Dimensions............. 8 Torque Requirements ........8 Product Overview ..........8 Operation ............... 9 Before Operation .......... -
Page 5: Safety
Always follow all safety instructions to avoid serious personal injury or death. • Read, understand, and follow all instructions and warnings in the mower and UltraVac Operator’s Manuals and on the machine, engine, and attachments. All operators and mechanics should be trained. -
Page 6: Safety And Instructional Decals
2. Loss of traction and steering or reduced stability hazard-UltraVac counterbalance weight(s) installed without UltraVac may cause loss of traction and steering control. UltraVac installed without UltraVac counterbalance weight(s) will cause reduced stability. Install weight(s) only when UltraVac is installed. - Page 7 Safety decal133-8061 133-8061 decal126-4584 126-4584 1. Impeller/Rotating Blades hazard-Keep hands away from moving parts. Keep all safety devices in place and working. Do Not reach into blower unless rotation indicator has stopped. Disengage PTO, stop engine, remove key, WAIT FOR MOVING PARTS TO STOP.
-
Page 8: Specifications
Lazer Z Diesel w/60 inch Deck 124.0 inches (315.0 cm) Lazer Z Diesel w/72 inch Deck Curb Weight: UltraVac Weight (W/Completing Kit): 430 lb (195 kg) Torque Requirements Bolt Location Torque Impeller Spindle Bottom 55-60 ft-lb (75-81 N-m) Impeller Spindle Top Nut... -
Page 9: Operation
• The machine that the UltraVac attaches to was Uneven terrain could overturn the machine. designed for one operator only. Do Not carry •... - Page 10 Mowing • Do Not operate the machine without The UltraVac blower operates when the PTO is guards, shields, and safety devices in place engaged. Be sure that all persons are clear of the and working properly.
- Page 11 Operation productivity and best quality of cut. Bogging the engine RPM down by going too fast will cause plugging and quality of cut issues. • When the bags get full, the sound of the blower will change and there will be slight blowout from the front right corner of the deck.
- Page 12 Operation Install the discharge deflector using the chute pivot pin and hairpin (see Figure 7). g009319 Figure 7 1. Hairpin 3. Discharge deflector 2. Chute pivot pin WARNING An uncovered discharge opening will allow objects to be thrown in operator's or bystander's direction.
- Page 13 Collection System Installation Important: Due to the added weight of the UltraVac, it is important to ensure the parking brake on your mower is adjusted properly. Before installing the UltraVac, make sure to re-adjust the parking brake on your mower as outlined in the “Adjusting the Parking Brake”...
- Page 14 Operation Pull the spring loaded idler back and slip the belt in the upper groove of the deck sheave. g009311 Figure 12 View from Top of Blower g242046 Figure 10 1. Impeller sheave 3. Spring loaded idler Right side shown 2.
- Page 15 Operation washers, and three #10-24 nyloc nuts. The screw head should be installed to the inside of the tube to provide minimum obstruction to flow. Make sure that the upper and the lower ends are oriented properly as the tubes are assembled. g009341 Figure 14 1.
-
Page 16: After Operation
Important: For correct traction and stability, install the required quantity of counterbalance weight(s) as specified in the UltraVac Operator’s manual, setup instructions, and/or completing kit. Note: The removable weights are heavy. Use care when lifting them. make sure that you can hold them securely before lifting them. -
Page 17: Maintenance
Wait for all moving parts to stop before leaving original Exmark parts could lead to serious the operator’s position. Allow the machine to cool injury or death. Unauthorized changes to the... -
Page 18: Periodic Maintenance
Objects could exit through worn bag at high speeds. Thrown objects can cause serious injury or kill you or bystanders. Check bags frequently for tears and holes. Replace worn bags only with Exmark replacement bags. Lubricate Grease Fittings Note: See chart for service intervals. -
Page 19: Cleaning
Maintenance Cleaning Stop engine, wait for all moving parts to stop, and remove key. Engage parking brake. Open hood and remove clippings that are stuck Cleaning and Storing Safety to the screen. • Park machine on level ground, disengage drives, set parking brake, stop engine, and remove key. -
Page 20: Troubleshooting
Troubleshooting Troubleshooting Important: It is essential that all operator safety mechanisms be connected and in proper operating condition prior to mower use. When a problem occurs, Do Not overlook the simple causes. For example: starting problems could be caused by an empty fuel tank. The following table lists some of the common causes of trouble. -
Page 21: Information
While the exposure from Exmark products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Exmark has elected to provide the Prop 65 warnings. Moreover, if Exmark does not provide these warnings, it could be sued by the State of California or by... - Page 22 Notes:...
- Page 23 Service Record Date: Description of Work Done: Service Done By:...
