RTS BP-319 Specifications

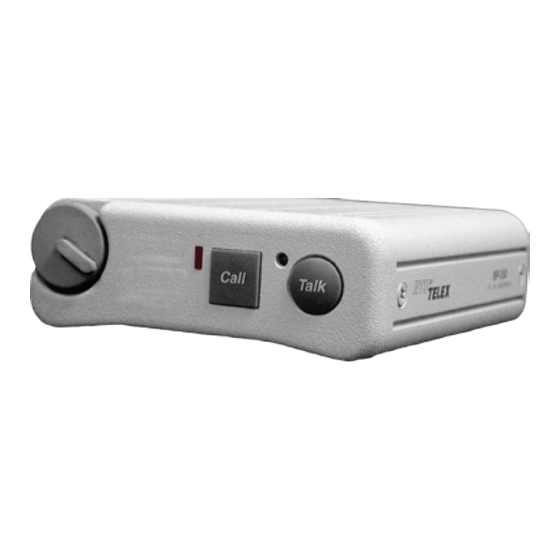

The BP-319, BP-325, and BP-351 are portable user stations for use with RTS Two-Wire intercom systems. The BP-319 is a
microprocessor controlled one-channel intercom where the BP-351 is a microprocessor controlled two-channel select intercom
beltpack. The BP-325 is a binaural (stereo) programmable 2 channel beltpack with PGM-in capability. The BP-319 and BP-351
have connections for headset/earset microphones (Dynamic or Electret), whereas the BP-325 is for use with a dynamic micro-
phone only. The factory setting is for Dynamic.
Features
Call Function
Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible
call alert on the listen side.
Microphone Kill Detect
Microprocessor controlled microphone kill detect.
Powered Externally
Powered externally, via the intercom system power supply on channel one.
Headset
Headset 4 or 5-pin XLR connection is available. (The BP-325 has both standard.)
Auto-Sensing Headset Connector
The BP-319 and BP-351 have a built-in auto-sensing headset connector that will determine automatically whether a dynamic
or electret headset is connected to the system. (BP-319 and BP-351 only)
Line Drawing
BP-319
BP-319, BP-325, BP-351
Beltpack User Stations
BP-325 BP-351
