Chauvet Well Quad-M User Manual

Wireless event led luminaire
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Chauvet Well Quad-M

Summary of Contents for Chauvet Well Quad-M

  • Page 1 User Manual...
  • Page 2 Copyright Notice CHAUVET® owns the content of this user manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2014 CHAUVET®. All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting and Rigging .................................. 2 Power and Wiring ..................................
  • Page 4 Table of Contents Settings Lock Out ..................................16 Program Upload ..................................17 Resetting Factory Defaults ................................. 17 Resetting Calibration Defaults ..............................17 Setting the ....................................17 White Color ....................................17 Calibrating the .................................... 18 White Color ....................................18 TOUR Notes ................................18 Master Dimmer...................................

  • Page 5: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention...

  • Page 6: Safety Notes

    · Do not close the flight case/charger lid when during charging. · In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. Expected LED LEDs gradually decline in brightness over time, mostly because of heat.

  • Page 7: Introduction

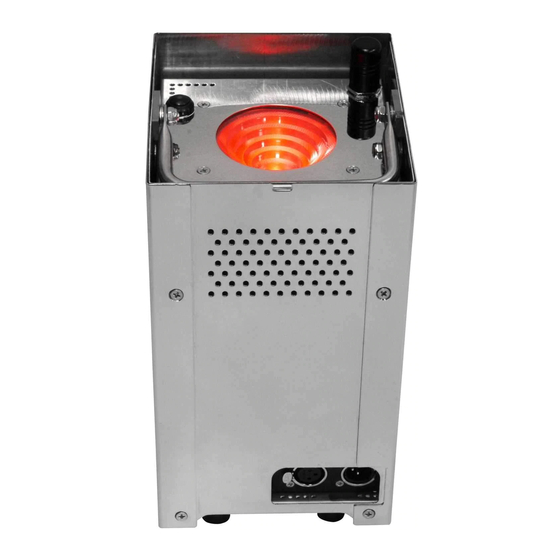

    Introduction 2. Introduction Description The WELL™ Quad-M (Wireless Event Light Luminaire) is a battery powered, portable upward wash light. It consists of a single product that contains the lithium ion battery, the LEDs, the LED drivers, and the main control. The battery provides up to 10 hours of runtime.

  • Page 8: Overview

    Introduction Overview Power Switch W-DMX™ Antenna Handle DMX In/Out Back View Control Panel Battery Charging Port Battery Storage Power Switch Foot Release Adjustable Foot Bottom View WELL™ Quad-M User Manual...

  • Page 9: Overview

    Introduction Overview Green +/- Blue +/- Static Play On/Off Amber +/- Red +/- Color Key Effect Key Control Control Speed Intensity Control Control · To access the static colors on the remote, press and hold the static play button for 3–5 seconds before pressing the button for the desired color. ·...

  • Page 10: Dimensions

    Introduction Dimensions WELL™ Quad-M User Manual...

  • Page 11: Setup

    Technical Specifications section. The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the CHAUVET® website: www.chauvetpro.com. Always connect this product’s battery charger to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.

  • Page 12: Battery Charge Notes

    Setup · Make sure to turn the battery storage switch on before connecting the product to the Battery Charge Notes charger. · Always use the supplied charger to recharge the built-in battery. · Recharge the battery within three days of last use. ·...

  • Page 13: Dmx Linking

    · If you need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed in order to link the product to a DMX controller, you can download the DMX Primer from the CHAUVET® website: www.chauvetpro.com. · Verify the DIMX and CURV settings are set to OFF for optimal control of the TR16 personality.

  • Page 14: W-Dmx™ Operation

    Setup W-DMX™ Operation The product can operate in W-DMX™ mode up to 300 m (900 ft) from the W-DMX™ transmitter. For wireless operation, the W-DMX™ receiver inside the product must be paired with a W-DMX™ transmitter. Initial Setup 1. Turn the W-DMX™ transmitter on. 2.

  • Page 15: Lens Angle Adjustment

    Setup Lens Angle The product contains a single LED lens platform, that which allows the unit to be tilted from 55º up to 105º from the center. Adjustment The WELL™ Quad-M stands on the support legs and positioned on a hard, steady Positioning surface that can support its weight.
  • Page 16 Setup Tilt Angle Procedure The WELL™ Quad-M stands on a hard, steady surface that can support its weight. Using the installed retractable foot, the product is adjustable by using the foot release lever up to10º. Mounting Diagram Correct Floor Mounting -12- WELL™...

  • Page 17: Operation

    Operation 4. Operation Control Panel Button Function Description <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently <ENTER> selected value in to the current function Navigates upward through the menu options or increases the <UP>...

  • Page 18: Loss Of Signal Setting

    Operation Loss of Signal Setting This setting controls how the product will respond when the DMX signal is lost. 1. Go to the SET main level, and select DERR. a. Select SAVE to make the product use the last command used when the signal is lost.

  • Page 19: Master/Slave

    Operation Master/Slave The Master/Slave mode allows a group of WELL™ Quad-Ms (slave products) to simultaneously duplicate the output of another WELL™ Quad-M (master product) without a DMX controller. 1. Set each of the slave products: a. Go to RUN. b. Select SLAVE. 2.

  • Page 20: Dimmer Curves

    Operation Dimmer Curves This setting provides you with four options to simulate the dimming curve of an incandescent light product. 1. Go to the SET main level. 2. Select DIMX. 3. Select the desired dimmer curve (OFF, DIM1, DIM2, DIM3, or DIM4). The output is proportional (linear) to the dimmer and RGBA channel values.

  • Page 21: Program Upload

    · Green indicates that the upload process completed successfully. · Red indicates that the upload process failed due to an error. Recheck all cable connections and restart the process. If the issue persists, contact CHAUVET® Technical Support. Do not upload the data from a WELL™ Quad-M to a different product, as the other product may become inoperative.

  • Page 22: Calibrating The

    Operation Calibrating the This setting allows you to calibrate the white color when RGBW and the DMX controller’s White Color red, green, and blue faders are set to “255”. 1. Go to the CAL main level. 2. Enter the master access password (Control Panel Lock).

  • Page 23: Menu Map

    Operation Menu Map Main Level Programming Levels Description GREN Combine Red, Green, Blue, and Amber to make 000~255 a custom color BLUE STAT AMBR Selects the strobe frequency STRB 00~20 (0~20 Hz) 10 automatic programs AUTO 01~10 000~255 10 customizable programs DMX mode SLAV Master/Slave mode...
  • Page 24 Operation Menu Map (Cont.) Main Level Programming Levels Description Turns the password on or off PASS SEND/ Uploads custom programs to other WELL™ UPLD (Enter Quad-Ms Passcode) PASS SEND/ REST (Enter Defaults product to factory settings Passcode) RGB set to “255” = max. output COLR RGBW RGB set to “255”...

  • Page 25: Dmx Values

    Operation DMX Values TOUR Channel Function Value Percent/Setting 000 ó 255 Dimmer 0~100% 000 ó 255 0~100% (Step Time if Custom 1~10 active) 000 ó 255 Green 0~100% (Fade Time if Custom 1~10 active) 000 ó 255 Blue 0~100% 000 ó 255 Amber 0~100% 000 ó...
  • Page 26 Operation DMX Values (Cont.) TOUR Channel Function Value Percent/Setting (Cont.) 000 ó 040 No Function 041 ó 050 Auto 1 051 ó 060 Auto 2 061 ó 070 Auto 3 071 ó 080 Auto 4 081 ó 090 Auto 5 091 ó...
  • Page 27 Operation DMX Values (Cont.) TR16 Channel Function Value Percent/Setting 000 ó 255 Dimmer 0~100% 000 ó 255 Fine Dimmer 0~100% 000 ó 255 0~100% 000 ó 255 Fine Red 0~100% 000 ó 255 Green 0~100% 000 ó 255 Fine Green 0~100% 000 ó...
  • Page 28 Operation DMX Values (Cont.) TR16 Channel Function Value Percent/Setting (Cont.) 000 ó 009 No Function 010 ó 099 Slow to Fast 100 ó 109 No Function Special Strobe 110 ó 179 Lighting Effect Slow to Fast 180 ó 189 No Function 190 ó...
  • Page 29 Operation DMX Values (Cont.) TR16 Channel Function Value Percent/Setting (Cont.) 000 ó 255 Auto Speed 0~100% 000 ó 009 Preset dimmer speed from display menu 010 ó 029 Linear dimmer 030 ó 069 Nonlinear dimming curve 1 (fastest) Dimmer Speed 070 ó...
  • Page 30 Operation DMX Values (Cont.) AR2.S Channel Function Value Percent/Setting 000 ó 255 Dimmer 0~100% 000 ó 255 0~100% 000 ó 255 Green 0~100% 000 ó 255 Blue 0~100% 000 ó 255 Amber 0~100% 000 ó 009 No Function 010 ó 019 1 Hz 020 ó...

  • Page 31: Technical Information

    Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number.

  • Page 32: Technical Specifications

    Technical Information Technical Specifications Dimensions and Length Width Height Weight Weight 6.06 in (154 mm) 6.06 in (154 mm) 11.32 in (287 mm) 12.2 lb (5.53 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (External)

  • Page 33: Contact Us

    (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 World Wide Web Toll free: (800) 762-1084 www.chauvetlighting.com UNITED KINGDOM AND IRELAND - CHAUVET® Europe Ltd. General Information Technical Support Address:Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate World Wide Web Pinxton, Nottingham, UK NG16 6NT www.chauvetlighting.co.uk...
