Summary of Contents for Chauvet WELL Fit

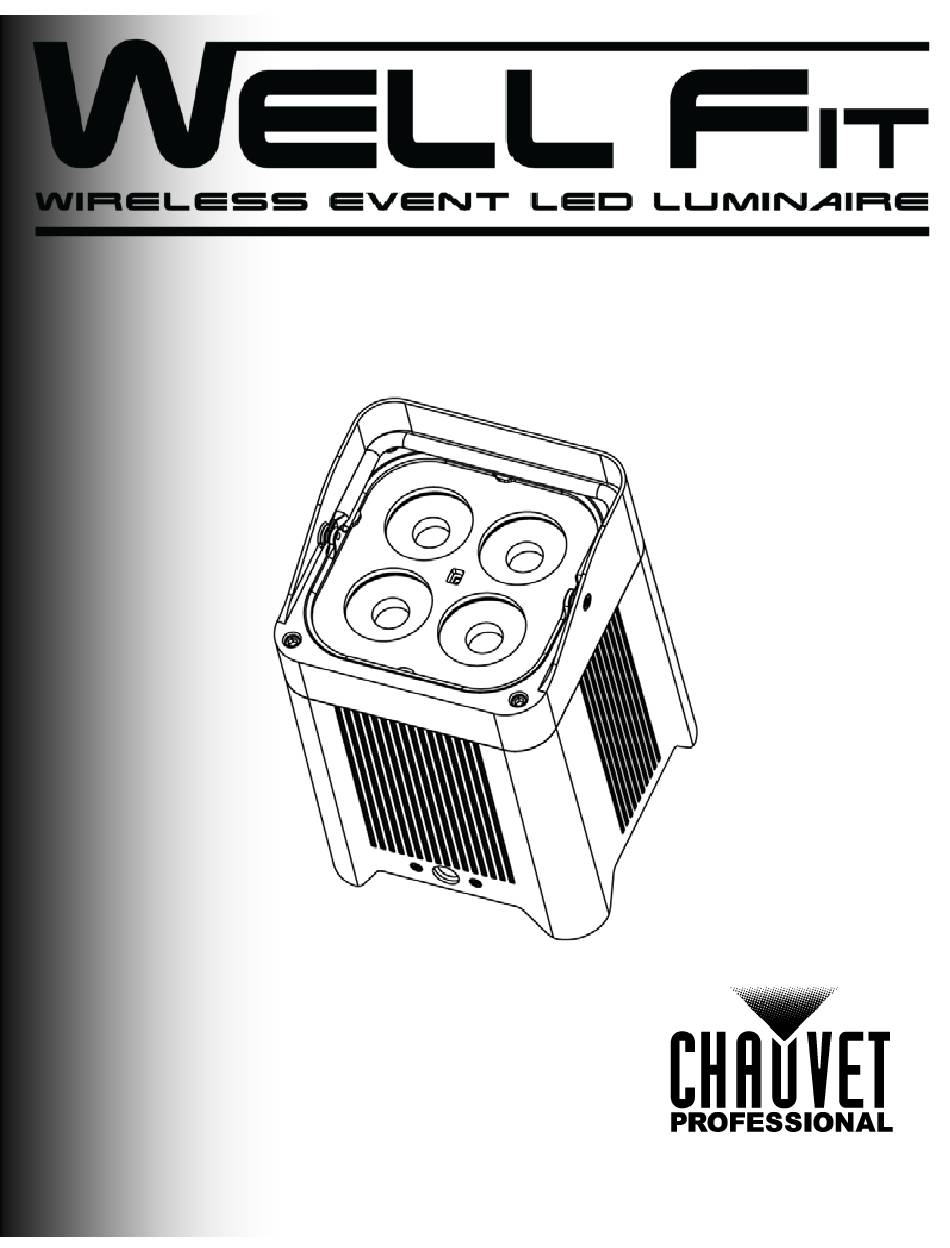

- Page 1 User Manual...
- Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions.. The WELL Fit User Manual Rev. 5 is the revised edition of this manual. Go to Document www.chauvetprofessional.com...
-
Page 3: Table Of Contents
Menu Map (Cont.) ..............................12 Configuration (Standalone)............................13 Automatic Programs ................................13 Fixed Static Color ................................13 Manual Static Color................................13 Dimmer Profiles .................................. 13 White Calibration ................................13 Backlight .................................... 14 Software Information ................................14 WELL Fit User Manual Rev. 5... - Page 4 IR Setting ................................... 14 DMX Values ................................15 DMX Values (Cont.) ..............................16 5. Technical Information ..........................17 Product Maintenance ............................17 6. Technical Specifications ......................... 18 Photometric Charts ...............................19 Returns ................................ 20 Contact Us ..............................21 -ii- WELL Fit User Manual Rev. 5...
-
Page 5: Before You Begin
If the charging case or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Introduction

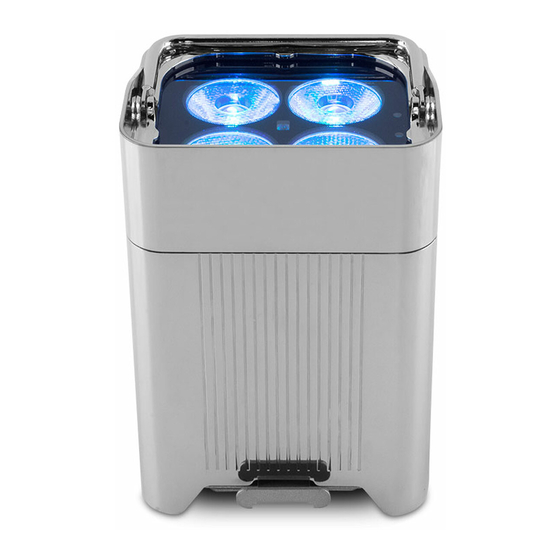

The WELL Fit is a quick setup, high-powered LED up-lighter. This small battery powered accent Description wash light comes in a reflective chrome housing designed to blend into any décor. WELL Fit can be controlled wirelessly either by W-DMX or by the included IR remote. Alternatively, it can be controlled manually from the OLED display on the product. -
Page 8: Well Fit Overview
Introduction Well Fit Overview Power Switch Handle Charging Socket Quad Color LED Retractable Foot Bottom View Top View Control Panel Retractable Foot Release Side View Threaded Mounting Hole Front View Rear View WELL Fit User Manual Rev. 5... -
Page 9: Product Dimensions
Introduction Product Dimensions 5.43 in 138 mm 5.43 in 138 mm 7.95 in 7.01 in 202 mm 178 mm 5.71 in 145 mm WELL Fit User Manual Rev. 5... -
Page 10: Charging Case Dimensions (Not Sold With The Single Fixture)
555 mm 14.33 in 364 mm 18.58 in 472 mm 4.02 in 102 mm 6.69 in 170 mm 10.28 in 261 mm 5.75 in 146 mm 18.03 in 458 mm 18.54 in 471 mm WELL Fit User Manual Rev. 5... -
Page 11: Setup
3. Remove blown fuse and replace with a good fuse of the same type and rating. 4. Screw the fuse holder cap back in place and reconnect power. The WELL Fit charging case supports power linking. You can power link up to 3 products at Power Linking 120 V, or up to 5 products at 208 V and 230 V. -
Page 12: Dmx Linking
DMX Linking DMX-compatible products with the WELL Fit, you can control each individually with a single DMX controller. The WELL Fit uses a wireless DMX data connection for the 4 Ch, 6 Ch, 10Ch, HSI and HSV DMX personalities. Personalities ·... -
Page 13: W-Dmx Setup
IR remote can remotely set the product to various modes; adjust the color, speed and Remote Control sensitivity; and set the strobe. The WELL Fit is compatible with the included IR remote from Chauvet. To enable use with the IR remote, follow the instructions below: 1. Go to IR Setting in the main level. -
Page 14: Mounting
When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET Professional line of safety cables, go to http://trusst.com/products/. The WELL Fit comes with an M12 threaded mounting hole to which you can attach mounting Procedure clamps for hanging. -
Page 15: Operation
Navigates downward through the menu list or decreases the numeric value when in a function Control Set the WELL Fit starting address in the 001–512 DMX range. This enables control of up to 51 products in the 10-channel 10Ch personality. Options... -
Page 16: Menu Map (Cont.)
Sets blue LED maximum value Turns wireless DMX function off Wireless Setting Receive Reset Resets the wireless setting IR Setting Activates/deactivates IR receiver Key Lock Turns the passcode on or off Factory Reset Resets to factory defaults -12- WELL Fit User Manual Rev. 5... -
Page 17: Configuration (Standalone)
Dimmer 1 being the fastest and Dimmer 3 the slowest. This setting allows you to select the white color shown by the WELL Fit when the DMX White Calibration controller’s red, green, and blue faders are set to 255. -
Page 18: Backlight
1. Go to the Information main level. 2. Select Fixture Hours and the total number of hours will show on the display. This option runs a check of the LEDs on the WELL Fit by turning on all the LEDs in sequence. LED Test 1. -
Page 19: Dmx Values
Preset dimmer speed from display menu 052 ó 101 Linear dimmer 102 ó 152 Dimmer Speed Nonlinear dimming curve 1 (fastest) 153 ó 203 Nonlinear dimming curve 2 204 ó 255 Nonlinear dimming curve 3 (slowest) WELL Fit User Manual Rev. 5 -15-... -
Page 20: Dmx Values (Cont.)
Percent/Setting 000 ó 255 0–100% 000 ó 255 0–100% Saturation 000 ó 255 0–100% Value Channel Function Value Percent/Setting 000 ó 255 0–100% 000 ó 255 0–100% Saturation 000 ó 255 0–100% Intensity -16- WELL Fit User Manual Rev. 5... -
Page 21: Technical Information
6. Wipe any dirt or grime to the outside edges of the lens surface. 7. Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. WELL Fit User Manual Rev. 5 -17-... -
Page 22: Technical Specifications
I/O Connectors Connector Type Channel Range Wireless DMX Wireless 3, 4, 6, or 10 Ordering Product Name Item Name Item Code UPC Number WELL Fit WELLFITX6 03031152 781462215002 WELL Fit (Single) WELLFIT 03031151 781462214999 -18- WELL Fit User Manual Rev. 5... -
Page 23: Photometric Charts
2.53 m 10 m 1.93 m 3.17 m 15 m 2.89 m 4.75 m 20 m 3.50 m 6.34 m 25 m 4.81 m 7.92 m 30 m 5.78 m 9.50 m Field Beam WELL Fit User Manual Rev. 5 -19-... -
Page 24: Returns
To submit a service request online, go to www.chauvetprofessional.com/service-request. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label. -
Page 25: Contact Us
Voice: +52 (728) 690-2010 Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. WELL Fit User Manual Rev. 5...
