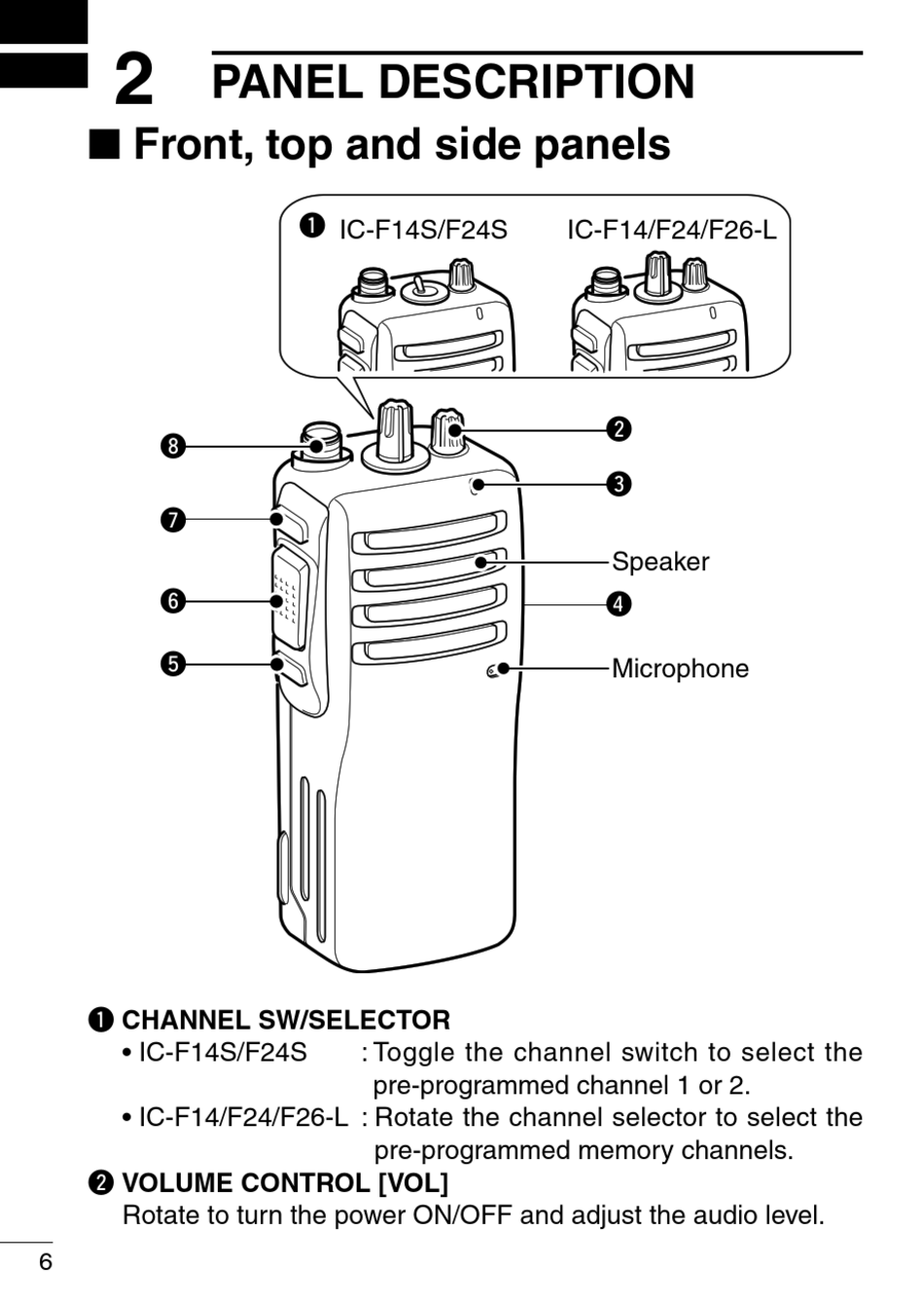

PANEL DESCRIPTION

■ Front, top and side panels

i
u
y
t
q CHANNEL SW/SELECTOR
• IC-F14S/F24S
• IC-F14/F24/F26-L : Rotate the channel selector to select the
w VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjust the audio level.
6
q
IC-F14S/F24S
: Toggle the channel switch to select the
pre-programmed channel 1 or 2.
pre-programmed memory channels.
IC-F14/F24/F26-L
w
e
Speaker
r
Microphone
