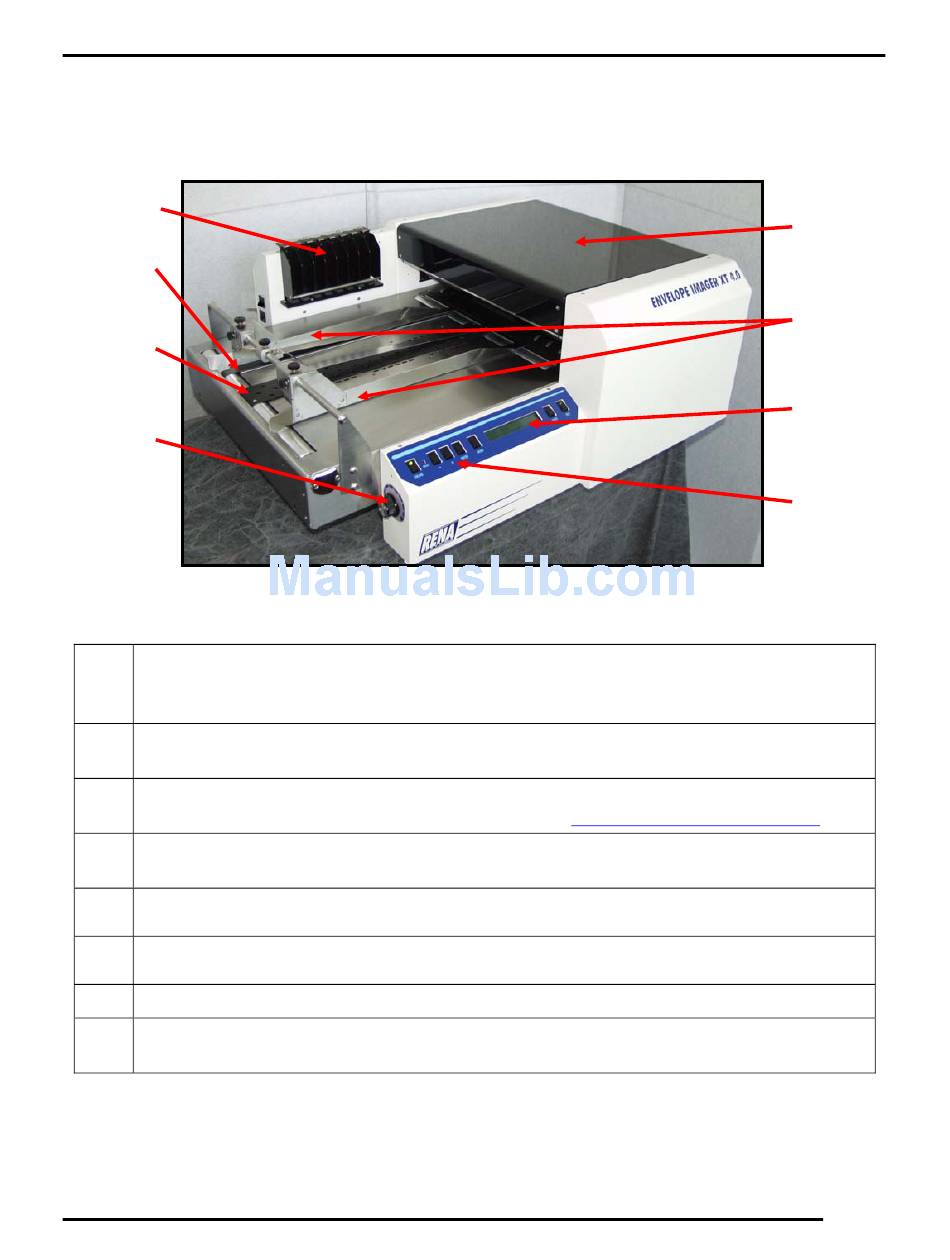

Operator View

4
3
2
1
MEDIA THICKNESS ADJUSTMENT DIAL– The dial on the left side of the control panel
1.
is used to adjust the height of the print heads to compensate for different media thickness.
VACUUM TRANSPOT BELT – Transports the media to the printheads. This belt position is
2.
stationary.
OUTER TRANSPORT BELTS – Supports and outside edges of the media for proper
3.
transport. These belts are repositionable. See Section 2
CARTRIDGE DOCKING STATION – The ink cartridges can be stored here when not in
4.
use.
PRINT-CARRIAGE COVER – Encloses the printhead carriage and media transport
5
rollers/belts.
MEDIA SIDE GUIDES – Used to center the media in the printer and provide straight feeding
6.
of media.
LCD DISPLAY – Displays information about the status of the printer.
7.
PRINTER CONTROL PANEL – The keys on the printer control panel are used to operate
8.
the printer.
Envelope Imager XT3.0/XT4.0 Operations Rev. 6/15/2007
Figure 2
"Setting Up the Transport
SECTION 1
GETTING ACQUAINTED
5
6
7
8
System".
