Setting Up the Transport System

Media Side Guide and Transport Belt Adjustment

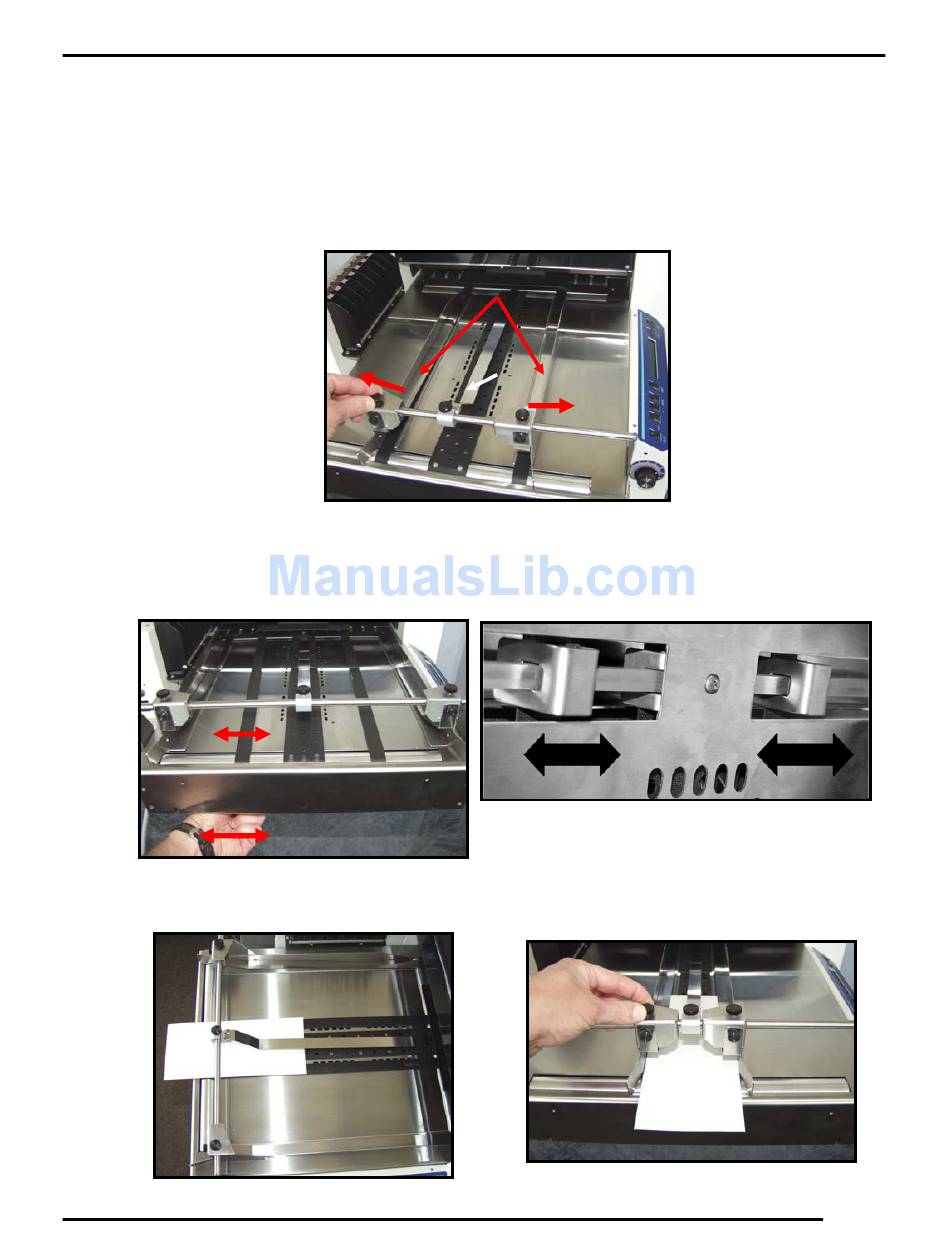

1. Loosen the Side Guide Securing Knobs and slide the Media Side Guides [1] apart, as shown in
It is not necessary to move the Media Hold Down Strap [2].
Reposition the Outer Transport Belts as shown in
2.
The Outer Transport Belts can be moved by running the printer (putting the printer in Paper Feed mode)
then sliding the belt guide adjusters, located under the entrance end of the printer, as shown in
3. Slide one piece of media, centered, in the entrance end of the printer, as shown in
Media Side Guides to the width of the media, plus 1/32", as shown in
Envelope Imager XT3.0/XT4.0 Operations Rev. 6/15/2007
Figure 13
Figure 15
1
2
Figure 12
Figure
13, so they accommodate the width of your media.
Belt Guide Adjusters
(as viewed from under printer)
Figure 14
Figure
SECTION 2
INSTALLING THE PRINTER
Figure 12
Figure
Figure
15, and adjust the
16.
Figure 16
15
14.
