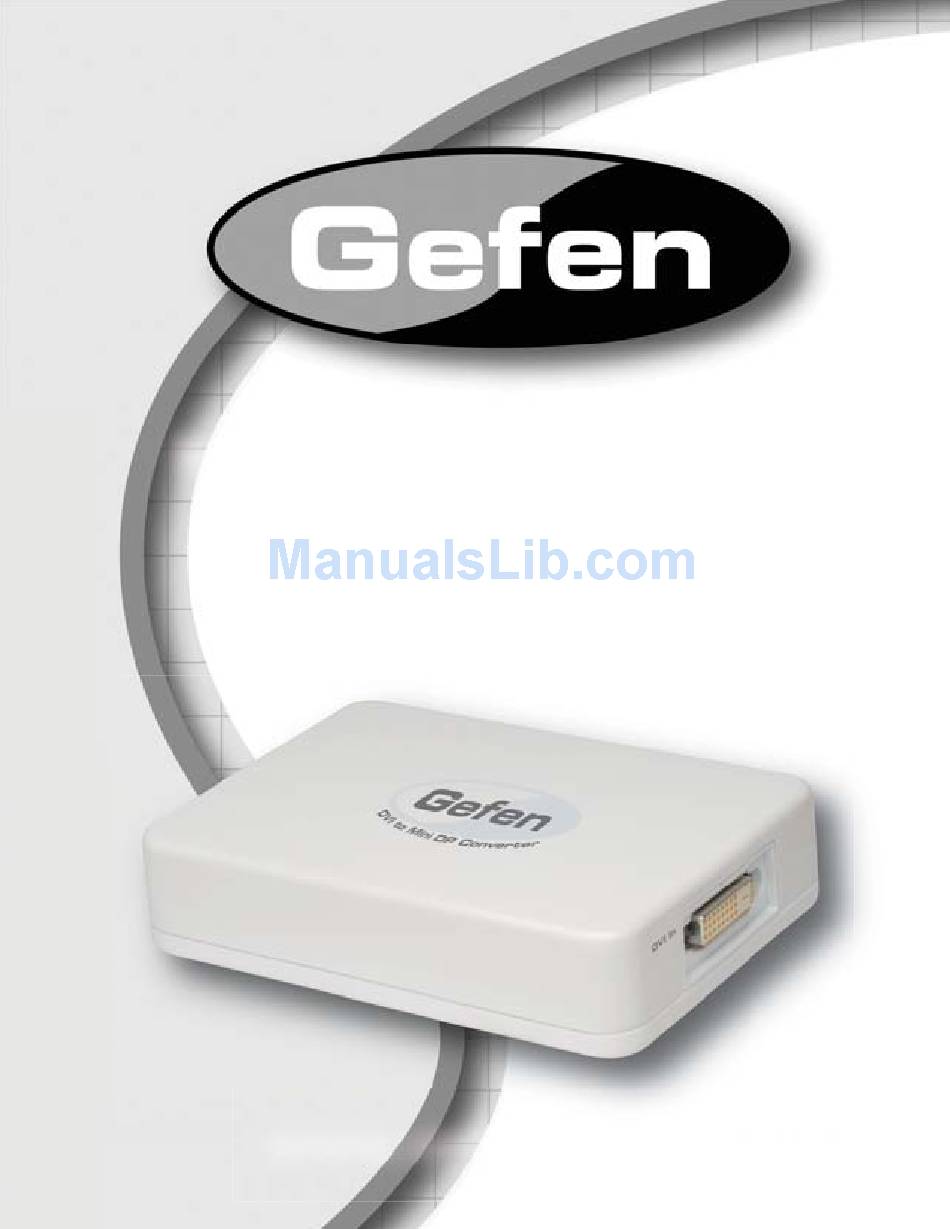

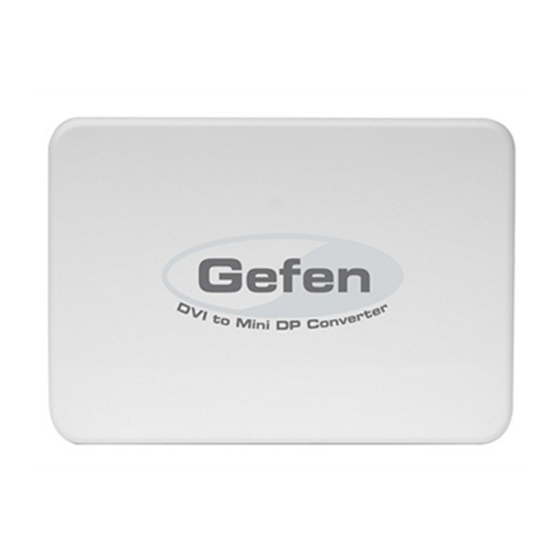

- Page 1 ® DVI to Mini DisplayPort Converter EXT-DVI-2-MDP User Manual www.gefen.com www gefen com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI to Mini DP Converter is a trademark of Gefen LLC © 2010 Gefen LLC, All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting The DVI To Mini DP Converter Specifi cations Warranty... -
Page 4: Introduction
Unlike the video signal relationship between DVI and HDMI, which is interchangeable, DisplayPort cannot natively support the transmission of these signal types without active electronics to modify the signal. Gefen’s DVI to Mini DisplayPort ensures compatibility with all current and legacy DVI devices. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI TO MINI DP CONVERTER • The DVI to Mini DP Converter contains a pre-loaded EDID which will be used by the source to determine the available output resolutions. • Maximum supported input/output resolution is 1920 x 1200 60Hz. -
Page 6: Features
FEATURES Features • Converts DVI to DisplayPort using the Mini DisplayPort connector interface • Supports video at 1920 x 1200 @ 60Hz resolution • True pixel-to-pixel signal conversion without scaling • Built-in EDID support • Durable and simple design aesthetically pairs well with many displays Package Includes (1) DVI to Mini DisplayPort Converter (1) 3-Foot DVI-D Cable (M-M) -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS DVI-D Input Connector This input will support one DVI-D type source device. The DVI to Mini DP Converter will convert this signal to a DisplayPort compatible signal. Service Port This port is for factory use only. Power LED Status Indicator This LED will be active while power is being supplied to the DVI to Mini DP Converter via the included power supply. -
Page 9: Connecting The Dvi To Mini Dp Converter
CONNECTING THE DVI TO MINI DP CONVERTER How to Connect the DVI to Mini DP Converter Connect a DVI source device to the DVI input connector on the DVI to Mini DP Converter using the supplied DVI cable. Connect a Mini DisplayPort display to the Mini DisplayPort output connector on the DVI to Mini DP Converter using a user/device supplied Mini DisplayPort cable. -
Page 10: Specifi Cations
SPECIFICATIONS Input Connector .................. (1) DVI-D Output Connector ............... (1) Mini DisplayPort Power Indicator ................(1) LED (Blue) Power supply ..............100-240VAC, 50/60Hz (Uses special AC adaptor , type 3A-154WP05 of ENG Electric Co., Ltd.) Power Consumption ............2.6 A (13 Watts Max.) Input Resolution ........
