Summary of Contents for Gefen EXT-DVI-2-VGAN
- Page 1 DVI to VGA Converter EXT-DVI-2-VGAN User Manual www.gefen.com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI to VGA Converter is a trademark of Gefen, LLC © 2010 Gefen LLC, All Rights Reserved.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting and Operating the DVI to VGA Converter Wiring Diagram EDID Management EDID Mode Selection Internal EDID Specifi cations Specifi cations 10 Warranty... -
Page 4: Introduction

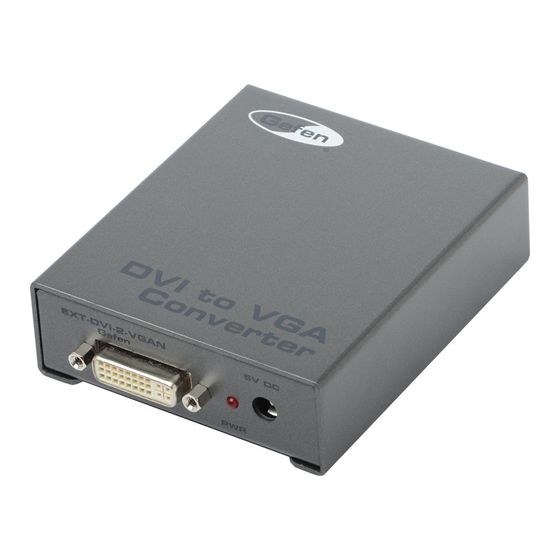

Standard Time for assistance with your A/V needs. We’ll be happy to assist you. The Gefen DVI to VGA Converter The Gefen DVI to VGA Converter is a small box solution that converts DVI-D to VGA Analog PC/RGB, enabling digital sources to connect with any display, pro- jector or TV using VGA. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFEN DVI TO VGA CONVERTER • The DVI to VGA Converter supports a DVI-D signal using a DVI-I connector. • The DVI to VGA Converter detect the presence of a connected monitor to determine which EDID will be used. -
Page 6: Features
Supports VESA resolutions up to 1920x1200 @ 60 Hz. • EDID Management for rapid integration of sources and display devices. Package Includes (1) Gefen DVI to VGA Converter (1) 6 ft DVI cable (M-M) (1) 5V DC Power Supply (1) User Manual... -
Page 7: Panel Layout
PANEL LAYOUT Front Back... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS DVI In Connect a digital DVI (DVI-D) source to this port. Power Indicator This LED will turn bright red once the included 5V DC power supply has been properly connected to the unit and the locking power supply has been connected to an available electrical outlet. -
Page 9: Connecting And Operating The Dvi To Vga Converter
CONNECTING AND OPERATING THE DVI TO VGA CONVERTER How to Connect the DVI to VGA Converter Connect a DVI source to the DVI In connector using the provided DVI cable. NOTE: The DVI to VGA Converter only supports DVI-D sources. Connect a VGA cable between the VGA monitor and the DVI to VGA Converter. -
Page 10: Edid Management
EDID MANAGEMENT EDID Modes EXTERNAL MODE: In order to use the external (display) EDID, the DVI to VGA Converter must be powered after it has been connected to the display. If the Converter is powered before it is connected to the display, then the internal EDID will be used. -
Page 11: Internal Edid Specifi Cations
EDID MANAGEMENT Internal EDID Specifi cations The table below lists the resolutions and timings within the Internal EDID: Video Data Block Video Data Block 1920x1080p @ 59.94/60 Hz (native) 1920 x 1200 @ 60 Hz 1920 x 1080i @ 59.94/60 Hz (native) 1600 x 1200 1920 x 1080i @ 50 Hz 1280 x 1024 @ 60/75 Hz... -
Page 12: Specifi Cations
SPECIFICATIONS Video Bandwidth..................165 MHz Input Video Signal................1.2 Volts p-p Input DDC Signal................5 Volts p-p (TTL) DVI Connector.............DVI-I 29-pin, female (digital only) VGA Connector.................HD-15, female Power Supply....................5V DC Power Consumption...............2.5 Watts (max.) Operating Temperature................0 ~ 40 ° Dimensions................3” W x 3.75” H x 1” D Shipping Weight....................2 lbs. -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 15 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
