SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

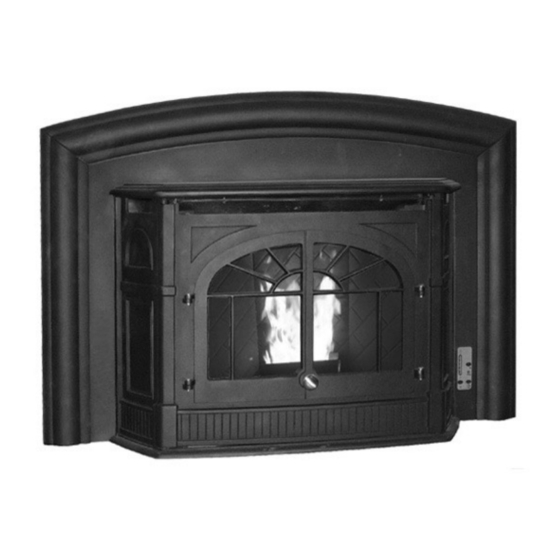

PELLET STOVE
Empress

Fireplace Insert

OWNER'S MANUAL
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND
USE OF THIS PELLET BURNING ROOM HEATER. FAILURE TO FOLLOW
THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE,
BODILY INJURY, OR EVEN DEATH.
50-1385

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-10969 and is the answer not in the manual?

Questions and answers

Related Manuals for Enviro C-10969

Summary of Contents for Enviro C-10969

  • Page 1: Fireplace Insert

    SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE Empress Fireplace Insert OWNER’S MANUAL Contact your building or fire officials about restrictions and installation inspection requirements in your area.

  • Page 2: Table Of Contents

    Table of Contents Introduction...3 Rating Label Location...3 Pellet Quality...3 Automatic Safety Features...3 Important Safety Data...4 Safety Warnings And Recommendations...4 Operating Instructions...6 Slider/Damper Setting...6 Stove Controls...6 Operating Your Pellet Stove...7 Turning Your Pellet Stove Off...7 Routine Cleaning and Maintenance...8 Warranty...11 Installation Data Sheet...12...

  • Page 3: Introduction

    UALITY Pellet quality is important, please read the following: Your enviro pellet stove has been designed to burn wood pellets only. Do not use any other type of fuel, as this will void any warranties stated in this manual. The performance of your pellet stove is greatly affected by the type and quality of wood pellets being burned.

  • Page 4: Important Safety Data

    CLEANING: There will be some build up of fly ash and small amounts of soot in the exhaust. This will vary due to the ash content of the fuel used and the operation of the stove. It is advisable to inspect and clean the exhaust vent semi-annually or every two tons of pellets.
  • Page 5 If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified ENVIRO dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is (4.1 Amps) 500 watts.

  • Page 6: Operating Instructions

    SPECIAL NOTES: Pellet quality is a major factor in how the pellet stove will operate. If the pellets have a high moisture content or ash content the fire will be less efficient and has a higher possibility of the fire building up and creating clinkers (hard ash build-up).

  • Page 7: Operating Your Pellet Stove

    MANUAL MODE: To START: Press the ON / OFF button. The stove will turn on, it may take fifteen (15) seconds for the lights on the control board to come on. The Auger Light will flash with each pulse of the auger (the Auger Feed Rate is pre-programmed during start-up).

  • Page 8: Routine Cleaning And Maintenance

    To remove the burn pot and burn pot liner, open the door located on the right-hand side of the stove. Swing the door open. Lift the liner from the burn pot. Lift the burn pot from the firebox by gently lifting up the front of the burn pot, then sliding the assembly from the air intake tube and the ignitor cartridge.
  • Page 9 ASH PAN AND DOOR GASKETS (weekly) After extended use the gasketing may come loose. To repair this, glue the gasketing on using high- temperature fiberglass gasket glue available from your local ENVIRO dealer. This is important to maintain an airtight assembly.

  • Page 10: Post Season Clean-Up

    Open the bottom of the “T” to dump the ash, then vacuum as much of the ash out of the vent pipe as possible. BLOWER MECHANISMS (season) Unplug the stove and pull out the unit to access the two blowers. Vacuum all dust from motors and lubricate the convection motor. Check gaskets and replace if needed. ALL HINGES (season) Check all the hinges on the unit to ensure proper movement.

  • Page 11: Warranty

    Warranty Sherwood Industries Ltd. gives a five year limited warranty on all steel manufactured parts. A one-year warranty is provided on all electrical components. The above limited warranties are extended only to the original purchaser. There is no warranty on the following parts: ●...

  • Page 12: Installation Data Sheet

    INSTALLER’S SIGNATURE: _________________________________________ NAME OF DEALER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ NAME OF INSTALLER: _________________________________________ (dd/mm/yyyy) ADDRESS: (dd/mm/yyyy) _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.envirofire.biz February 2, 2006 C-10969...
