Middle frame
Description
Middle frame (includes antenna transceivers, power/volume button actuator, rear-facing
webcamera lens, and speaker gaskets)
Before removing the middle frame, follow these steps:
1.
Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2.
Disconnect the power from the tablet by unplugging the power cord from the tablet.
3.
Disconnect all external devices from the tablet.
4.
Remove the back cover (see

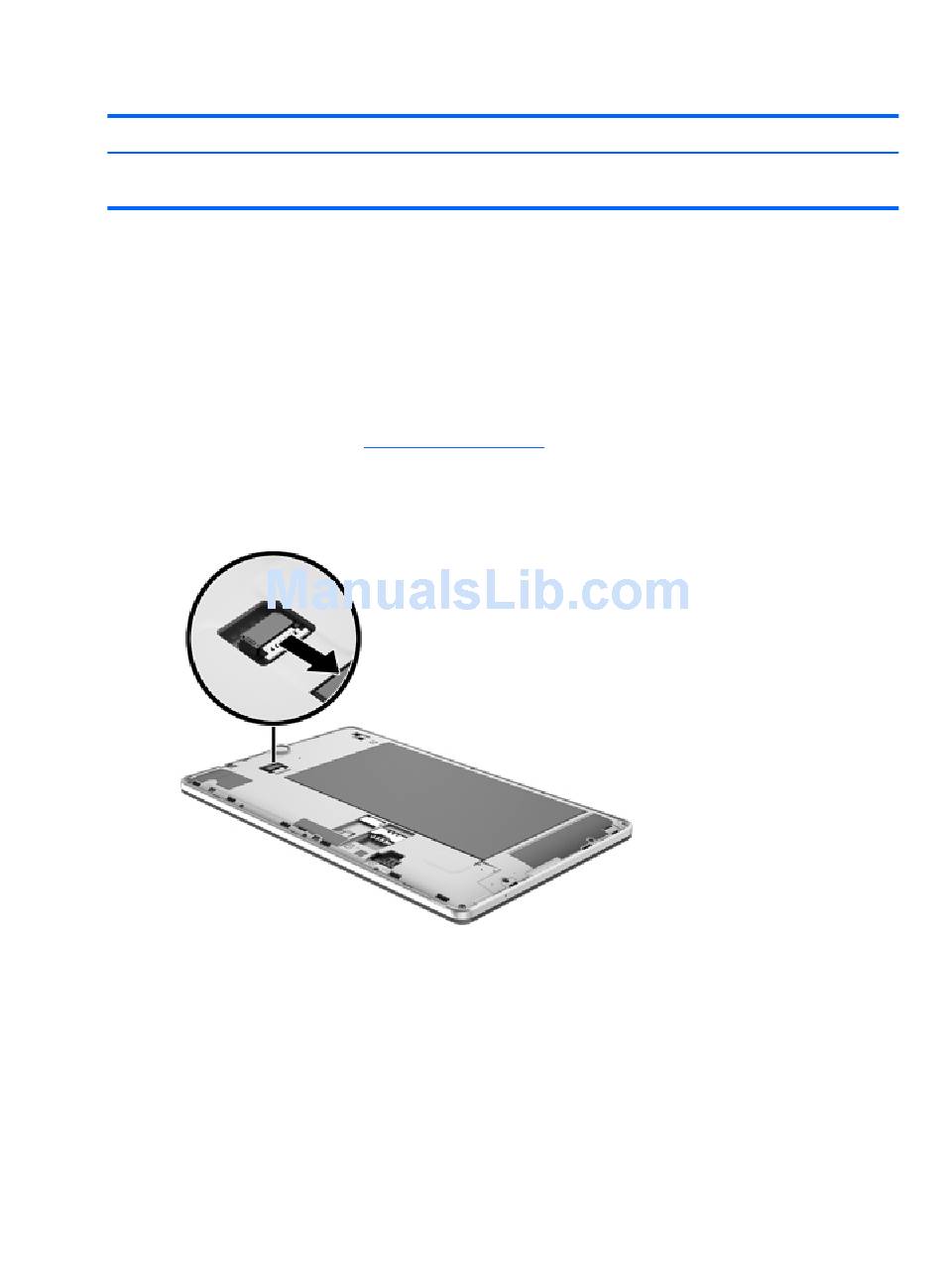

Remove the middle frame:
1.
Disconnect the battery cable from the system board.
2.
Remove the warranty sticker (1) that covers the system board retention screw.
3.
Remove the 14 Phillips PM1.35×3.75 screws (2) that secure the middle frame to the
display panel assembly.
14
Chapter 5 Removal and replacement procedures
Back cover on page
12).
Spare part number
751304-001
