Tablet Major Components - HP Slate7 VoiceTab Maintenance And Service Manual

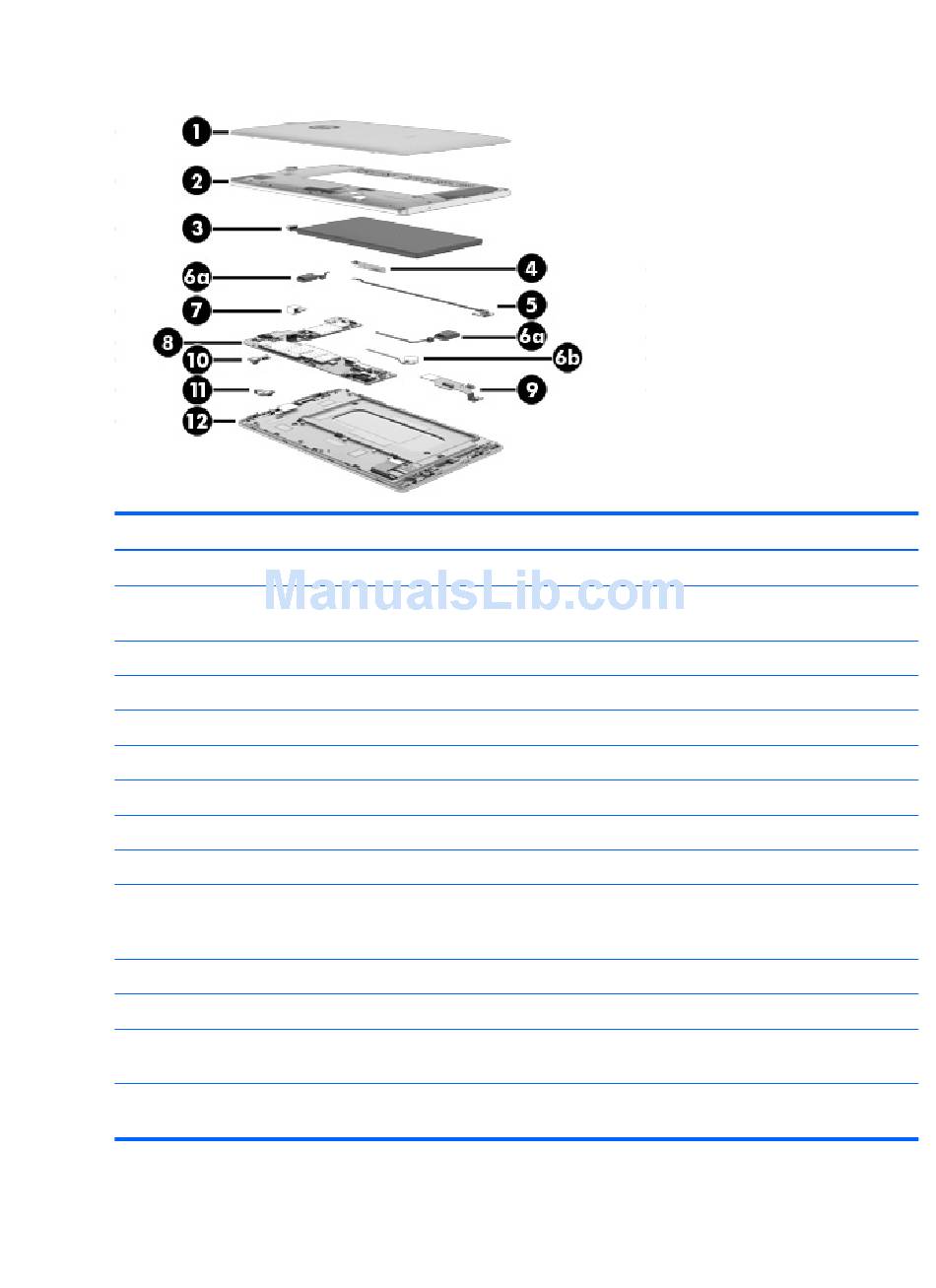

Tablet major components

Item Component
(1) Back cover
(2) Middle frame (includes antenna transceivers, power/volume button actuator, rear-
facing webcamera lens, and speaker gaskets)
(3) Battery, 4100-mAh, Li-ion (includes cable and double-sided adhesive)
(4) Power/volume button board (includes cable and double-sided adhesive)
(5) WiFi antenna board (includes RF antenna cable and double-sided adhesive)
Speaker/Vibrator Module Kit, includes:
(6a) Left and right speakers, cables, and grommets
(6b)
Vibrator module and cable
(7) 5.0-MP rear-facing webcamera (includes cable)
(8) System board equipped with a Marvel PXA1088 1.20-GHz quad core processor,
1.0-GB LP-DDR2 system memory, and a 16.0-GB eMMC solid state drive (includes left
and right speakers and vibrator module)
(9) FPC cable (includes double-sided adhesive)
(10) 2.0-MP front-facing webcamera (includes cable and double-sided adhesive)
(11) Proximity/ambient light sensor board (includes cable and double-
sided adhesive)
(12) Display panel assembly, 7-in., IPS, LCD, TouchScreen (includes display panel
cable and TouchScreen cable)
Spare part number
751302-001
751304-001
751312-001
751305-001
751315-001
751307-001
751309-001
751300-001
751310-001
751308-001
751314-001
751301-001
