IP Address:
192.168.0.101
IN
12V DC
REG
OUT
DIGITAL
6A MAX I II PERIPH PC
AUDIO
VN-Matrix
Encoder
IP Address:
192.168.0.102
IN
12V DC
REG OUT
DIGITAL
6A MAX I II PERIPH PC
AUDIO
VN-Matrix
Decoder

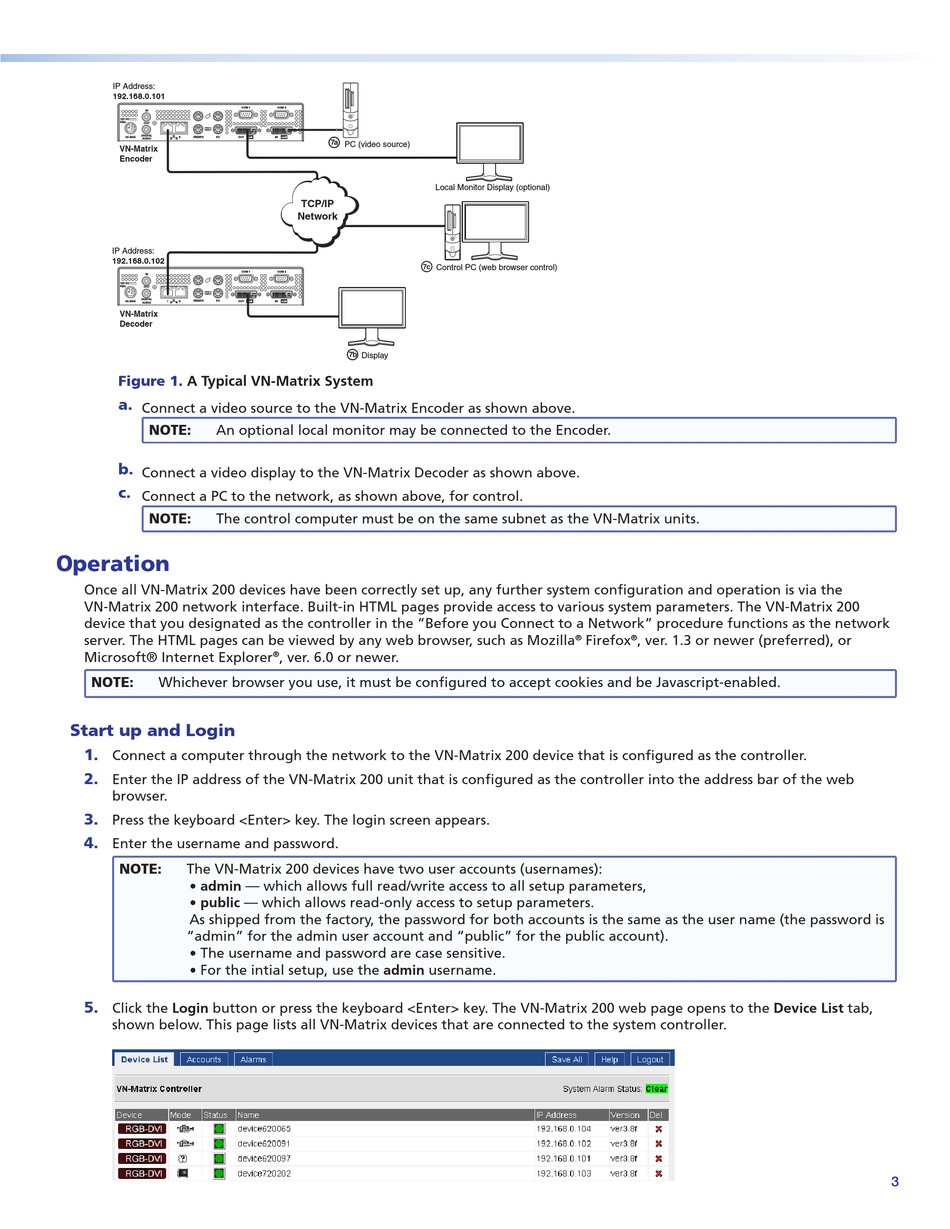

Figure 1. A Typical VN-Matrix System
a.
Connect a video source to the VN-Matrix Encoder as shown above.
NOTE: An optional local monitor may be connected to the Encoder.
b.
Connect a video display to the VN-Matrix Decoder as shown above.
c.
Connect a PC to the network, as shown above, for control.
NOTE: The control computer must be on the same subnet as the VN-Matrix units.
Operation
Once all VN-Matrix 200 devices have been correctly set up, any further system configuration and operation is via the
VN-Matrix 200 network interface. Built-in HTML pages provide access to various system parameters. The VN-Matrix 200
device that you designated as the controller in the "Before you Connect to a Network" procedure functions as the network
server. The HTML pages can be viewed by any web browser, such as Mozilla
Microsoft® Internet Explorer
NOTE: Whichever browser you use, it must be configured to accept cookies and be Javascript-enabled.
Start up and Login
1.
Connect a computer through the network to the VN-Matrix 200 device that is configured as the controller.
2.
Enter the IP address of the VN-Matrix 200 unit that is configured as the controller into the address bar of the web
browser.
3.
Press the keyboard <Enter> key. The login screen appears.
4.
Enter the username and password.
NOTE: The VN-Matrix 200 devices have two user accounts (usernames):
• admin — which allows full read/write access to all setup parameters,
• public — which allows read-only access to setup parameters.
As shipped from the factory, the password for both accounts is the same as the user name (the password is
"admin" for the admin user account and "public" for the public account).
• The username and password are case sensitive.
• For the intial setup, use the admin username.
5.
Click the Login button or press the keyboard <Enter> key. The VN-Matrix 200 web page opens to the Device List tab,
shown below. This page lists all VN-Matrix devices that are connected to the system controller.
COM 1 COM 2
å
OUT DVI-I IN DVI-I
PC (video source)
TCP/IP
Network
COM 1 COM 2
OUT DVI-I IN DVI-I
ç
Display
® , ver. 6.0 or newer.
Local Monitor Display (optional)
K
Control PC (web browser control)
Firefox
®
, ver. 1.3 or newer (preferred), or
®
3
