- Page 1 1230 South Lewis Street, Anaheim, CA 92805 +31.33.453.4040 FAX +31.33.453.4050 +65.226.0015 FAX +65.226.0019 800.633.9876 714.491.1500 F AX 714.491.1517 The Netherlands Singapore User’s Manual EXTRON ELECTRONIC INFORMATION WEB™: www.extron.com XTRON FAX™: 714.491.0192 XTRON 24-hour access — worldwide! RGB 400 Series Mountable Interfaces 68-364-01 Printed in the USA...
-
Page 2: Fcc Class A Notice
Precautions Safety Instructions • English Warning This symbol is intended to alert the user of important Power sources • This equipment should be operated only from the power source indicated on the product. This equipment is intended to be used with a main operating and maintenance (servicing) instructions power system with a grounded (neutral) conductor. -
Page 3: Table Of Contents
Table of Contents Chapter 1 • Introduction ... 1-1 About this Manual ... 1-2 About the RGB 400 Series Interfaces Features ... 1-2 RGB 400 Series features ... 1-2 Additional RGB 402 and RGB 404 features ... 1-2 Additional RGB 406 and RGB 408 features ... 1-2 Chapter 2 •... -
Page 4: Chapter 1 • Introduction
Interfaces and Included Parts ... D-2 Accessories and Connectors ... D-2 Cables ... D-3 Optional Adapter Plates ... D-4 RGB 400 Series Table of Contents ... C-7 ... D-1 68-364-01 C Printed in the USA 10 99 RGB 400 Series Chapter One... -
Page 5: About This Manual

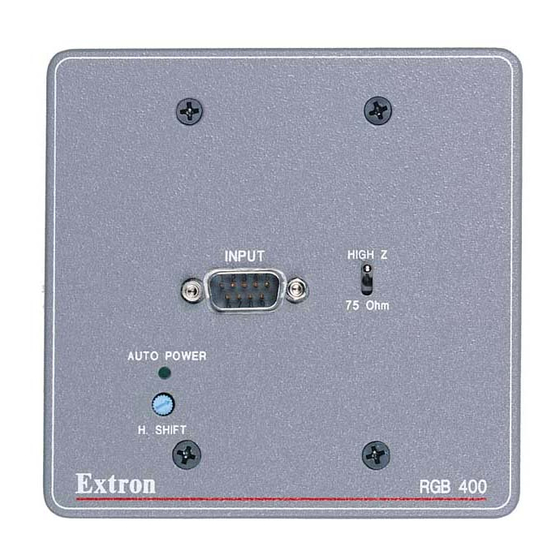

About The RGB 400 Series Interfaces The RGB 400 Series are 300 MHz (-3dB) bandwidth, analog computer-video interfaces that can be mounted in walls or furniture. The RGB 400 and RGB 406 are two-gang wall plate size, the RGB 402 and RGB 404 are three-gang size, and the RGB 408 is four-gang size. -
Page 6: Installation Overview
Installation and Operation Installation and Operation, cont’d Installation Overview To install and set up an RGB 400 Series interface, follow these basic steps: Determine the installation location. Prepare the site for installation. Use the supplied template to mark the rough-in cutout, then cut out the wallboard or wood. -
Page 7: Preparing The Installation Site, Installing The Wall Box
Attach the wall box to the wall stud (2 x 4) with nails or screws, leaving the front edge flush with the wall surface, as shown in the following illustration. RGB 400 Series Installation and Operation Wall Stud Wall Box... -
Page 8: Front And Rear Panel (Circuit Board) Features
J8 red gain/peaking jumper Circuit board — Only key components are shown here. Twisted-pair wires — Splice these wires to a 12 to 24VAC or VDC power source. RGB 400 Series Installation and Operation 3 2 1 .8V .9V RGB 406/... -
Page 9: Rgb 402 Front And Rear Features
Sleeve ( ) If you remove these connectors, replace them with the 0.31 inch diameter plastic plugs supplied with the RGB 402. Network pass-through RJ-45 connector RGB 400 Series Installation and Operation S-VIDEO VIDEO AUDIO NETWORK RGB 402... -
Page 10: Rgb 404 Front And Rear Features
Left and right audio channel RCA connectors — These connectors are for unbalanced input to audio channel 1. Wire the input plugs as shown below. Sleeve ( ) Network pass-through RJ-45 connector RGB 400 Series Installation and Operation 2-10 S-VIDEO VIDEO NETWORK... -
Page 11: Rgb 408 Front And Rear Features
See the “Attaching adapter plates” section in this chapter for installation instructions. RGB 400 Series Installation and Operation 2-12 RGB 408 FRONT 1 = +5V 20 mA max. -
Page 12: Setting Dip Switches And Jumpers
Make sure the interface is disconnected from the power source before configuring jumpers. Changing jumper settings RGB 400 Series Installation and Operation 2-14 Each red (J8), green (J9) and blue (J10) jumper can be set to one of three positions to provide unity gain (0.7 volts p-p), 0.8 volts p-p, or 0.9 volts p-p output. -
Page 13: Cabling And Connections
Shield tab Luminance Chrominance ground ground S-video connector wiring diagram RGB 400 Series Installation and Operation 2-16 Adapter Plate #4-40 Nut w/Captive Washer RGB 408 (Up to 4 Plates) four wires from this connector to user-supplied coaxial cables. Insulate the soldered connections to prevent shorts. -
Page 14: Connecting Audio Cables - Rgb 404
The audio signals are converted from unbalanced to balanced signals as they pass through the RGB 404. As a result, two output signals are produced for each input RGB 400 Series Installation and Operation 2-18 signal. For example, the input signals from the left side of channel one (CH1L) are output as CH1L+ and CH1L-. -
Page 15: Connecting Audio Cables - Rgb 406, Rgb 408
Attaching power cables Each RGB 400 Series interface requires an external voltage source of 12 to 24 volts AC or DC (250 mA maximum, 5 W). The interfaces are supplied with a power cord of twisted- pair wire soldered to the circuit board. -
Page 16: Mounting The Interface To The Wall Box
(SOG), and the display device may not be configured to handle SOG signals. The RGB 400 Series interfaces do not strip sync from the video input signals. If the picture bends or flags at the top of the screen, set the serration pulse DIP switch (SW1-1) to Off. -
Page 17: Application Diagrams
RGB 404 Application diagrams Below are examples of typical system installations that incorporate RGB 400 series interfaces. Many other configurations are possible. Extron offers a variety of laptop and monitor breakout cables for easy connection of PCs, Macintosh, Sun or SGI computers. -
Page 18: Appendix A • Specifications
Installation and Operation, cont’d RGB 400 Series A ppendix A Specifications Specifications RGB 400 Series Installation and Operation 2-26... - Page 19 Output impedance ... 75 ohms Max propagation delay ... 50 nS Max rise/fall time ... 2.5 nS Polarity ... Positive or negative RGB 400 Series Specifications Audio input — RGB 402 Number/type ... 1 stereo, unbalanced (pass-through) Connectors ... 2 RCA female jacks Audio input —...
- Page 20 (7.1 cm H x 8.9 cm W x 6.4 cm D) (depth is given for the circuit board with an HR cable attached) RGB 400 Series Specifications Enclosure dimensions (RGB 402 and RGB 404) Plate ... 4.50” H x 6.40” W (11.43 cm H x 16.26 cm W)
-
Page 21: Appendix B • Templates
Specifications, cont’d RGB 400 Series Specifications RGB 400 Series A ppendix B RGB 400 and RGB 406 Cut-out Template RGB 402 and RGB 404 Cut-out Template RGB 408 Cut-out Template Templates... -
Page 22: Rgb 400 And Rgb 406 Cut-Out Template
2-gang size electrical box in order to install an RGB 400 or RGB 406. RGB 400 Series Templates RGB 402 and RGB 404 Cut-out Template Use this template for cutting a hole in a wall or furniture for the 3-gang size electrical box for an RGB 402 or RGB 404. -
Page 23: Appendix C • Dimensions
Templates, cont’d RGB 400 Series Templates RGB 400 Series A ppendix C Dimensions RGB 400 Panel Dimensions RGB 402 Panel Dimensions RGB 404 Panel Dimensions RGB 406 Panel Dimensions RGB 408 Panel Dimensions RGB 408 Panel Dimension Details... -
Page 24: Rgb 400 Panel Dimensions
The diagrams in this appendix have been reduced to fit on the pages. All dimensions are given in inches. The symbol “ø” indicates a diameter. RGB 400 Panel Dimensions RGB 400 Series Dimensions RGB 402 Panel Dimensions RGB 400 Series Dimensions... -
Page 25: Rgb 404 Panel Dimensions
Dimensions, cont’d RGB 404 Panel Dimensions RGB 400 Series Dimensions RGB 406 Panel Dimensions RGB 400 Series Dimensions THRU ø.240 ø.400... -
Page 26: Rgb 408 Panel Dimensions
Dimensions, cont’d RGB 408 Panel Dimensions RGB 400 Series Dimensions RGB 408 Panel Dimension Details 8.325 6.881 6.025 3.844 3.104 2.174 1.929 1.444 1.154 0.744 0.000 THRU ø.240 ø.400 RGB 400 Series Dimensions... -
Page 27: Appendix D • Accessories And Part Numbers
Dimensions, cont’d RGB 400 Series A ppendix D Accessories and Part Numbers Interfaces and Included Parts Accessories and Connectors Cables Optional Adapter Plates RGB 400 Series Dimensions... -
Page 28: Part Numbers And Accessories
MBC SGI/13W3 HR Below is a listing of some of the laptop breakout cables and other cables available for use with RGB 400 Series interfaces. A variety of lengths is available for each type of cable. See the Extron product catalog or call Extron’s support hotline for details. -
Page 29: Optional Adapter Plates
2 - RCA to Solder Cups 2 - RJ-11 3 - RCA to Solder Cups 2 - S-video 1 - D-9 Pass Through Connector Architectural adapter plates RGB 400 Series Part Numbers and Accessories Part number 26-210-04 26-210-53 26-260-03 26-260-14... - Page 30 Part Numbers and Accessories, cont’d RGB 400 Series Part Numbers and Accessories RGB 400 Series Part Numbers and Accessories...
- Page 31 Part Numbers and Accessories, cont’d RGB 400 Series Part Numbers and Accessories...
