IR1: Infrared Header
The infrared port allows the wireless exchange of information
between your computer and similarly equipped devices such as
printers, laptops, Personal Digital Assistants (PDAs), and other
computers.
Pin

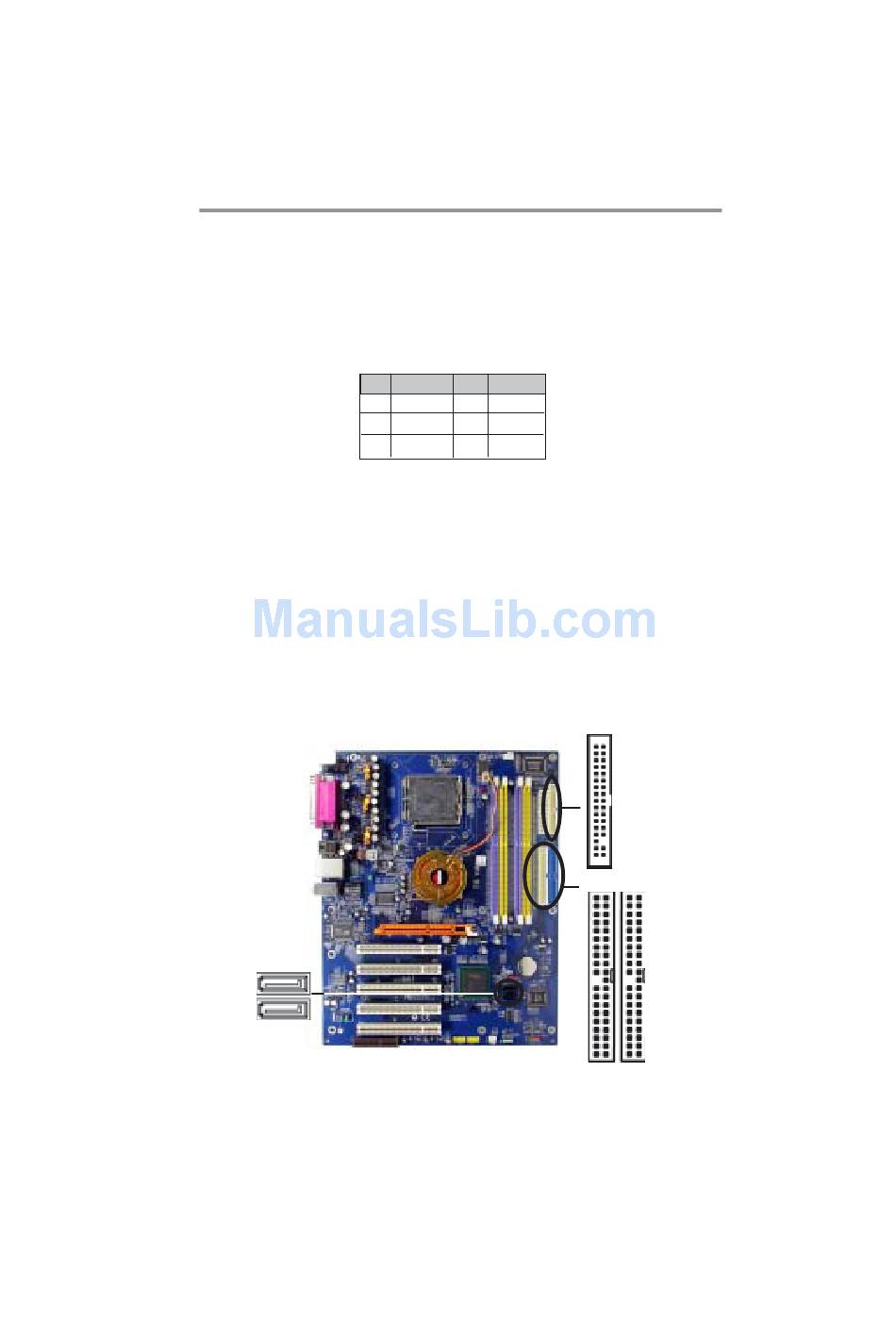

1. Locate the infrared port-IR1 header on the motherboard.
2. If you are adding an infrared port, connect the ribbon
cable from the port to the IR1 header and then secure the
port to an appropriate place in your system chassis.

Install Other Devices

Install and connect any other devices in the system following the
steps below.
SATA2
SATA1
Chapter 2: Motherboard Installation
Signal Pin Signal
1 NC 2 KEY
3 +5V 4 GND
5 IRTX 6 IRRX
17
FLOPPY
1
IDE1
IDE2
1 1
