Removal/installation of wire wheel

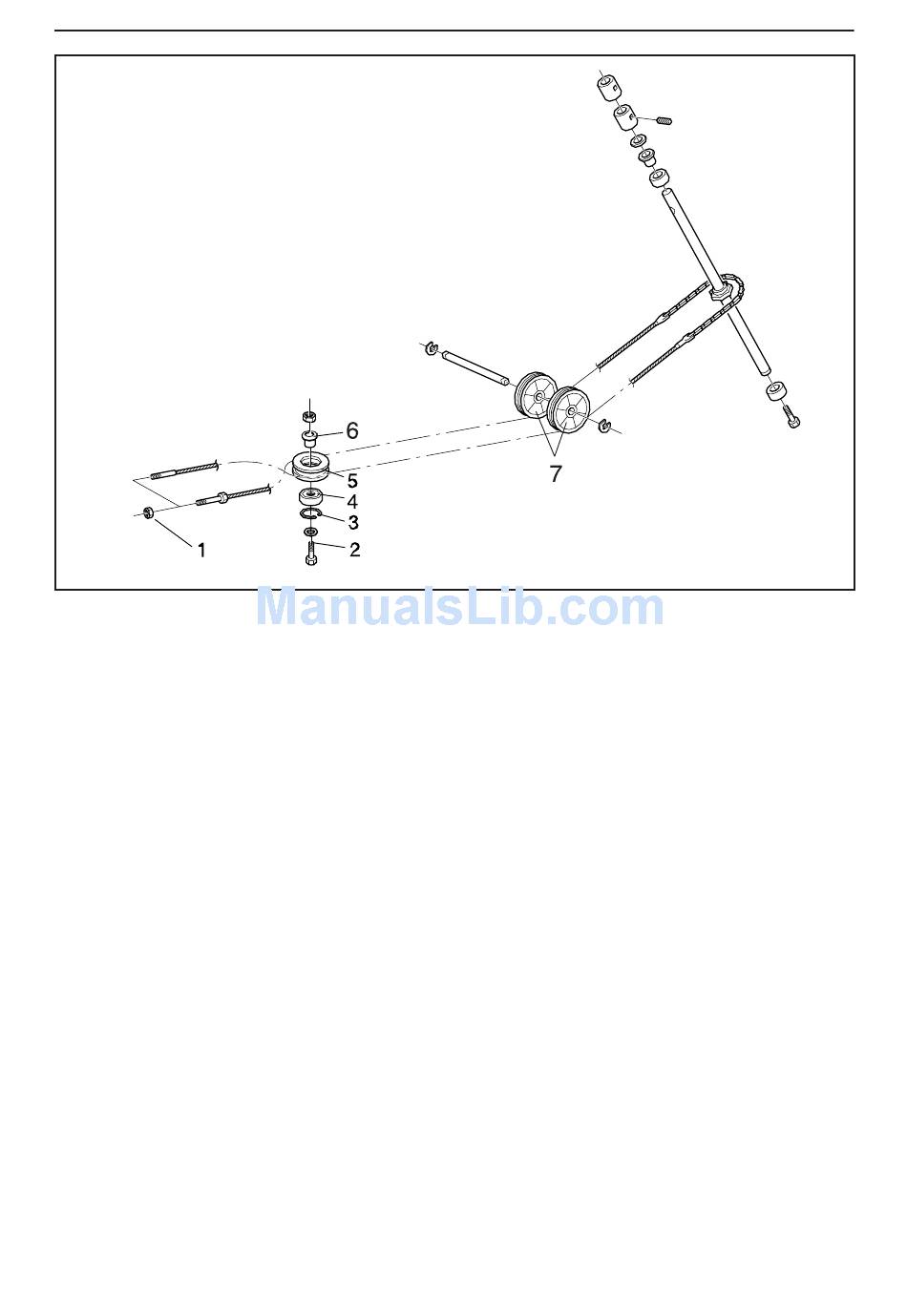

1. Remove the frame plate.
2. Detach the steering wires' rear attachment (1) .
3. Remove the screw (2) and detach the wire
wheel (5).
4. Remove the bearing's circlip (3) and knock out
the bearing (4).
5. To install the wire wheel, the reverse order is
applied.
The screw (2) is to be mounted in the rear hole
on the frame. The bushing (6) is to be placed
between the frame and the cable pulley.
Ensure that the cables are properly situated
under the steering cable rollers (7) in the frame
tunnel.
Ensure that the steering wheel is in the centre
position when the rear wheels are centred. Re-
set the chain on the steering column's sprocket
or adjust the rear fixture (1) for the steering
cables as needed.
Hold the cables with, for example, a wrench
when mounting so that they do not twist.
After installation, check the wire tension (see
"Checking and adjusting steering wires").
