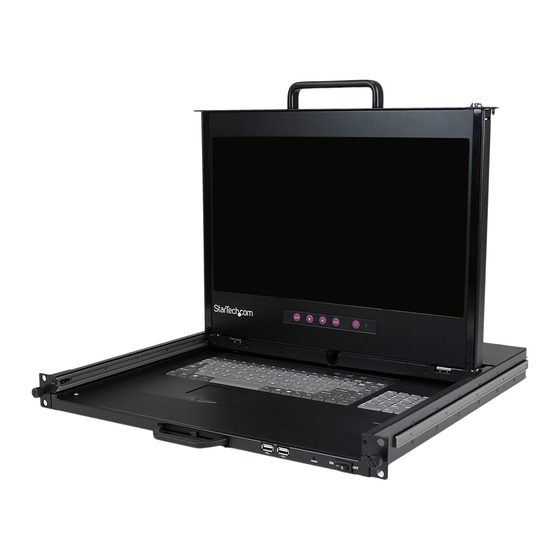

1U 17in 1080p Dual Rail LCD Rack Console
with Front USB Hub
RACKCOND17HD
RKCOND17HDxx
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/09/2015
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com RACKCOND17HD
Summary of Contents for StarTech.com RACKCOND17HD

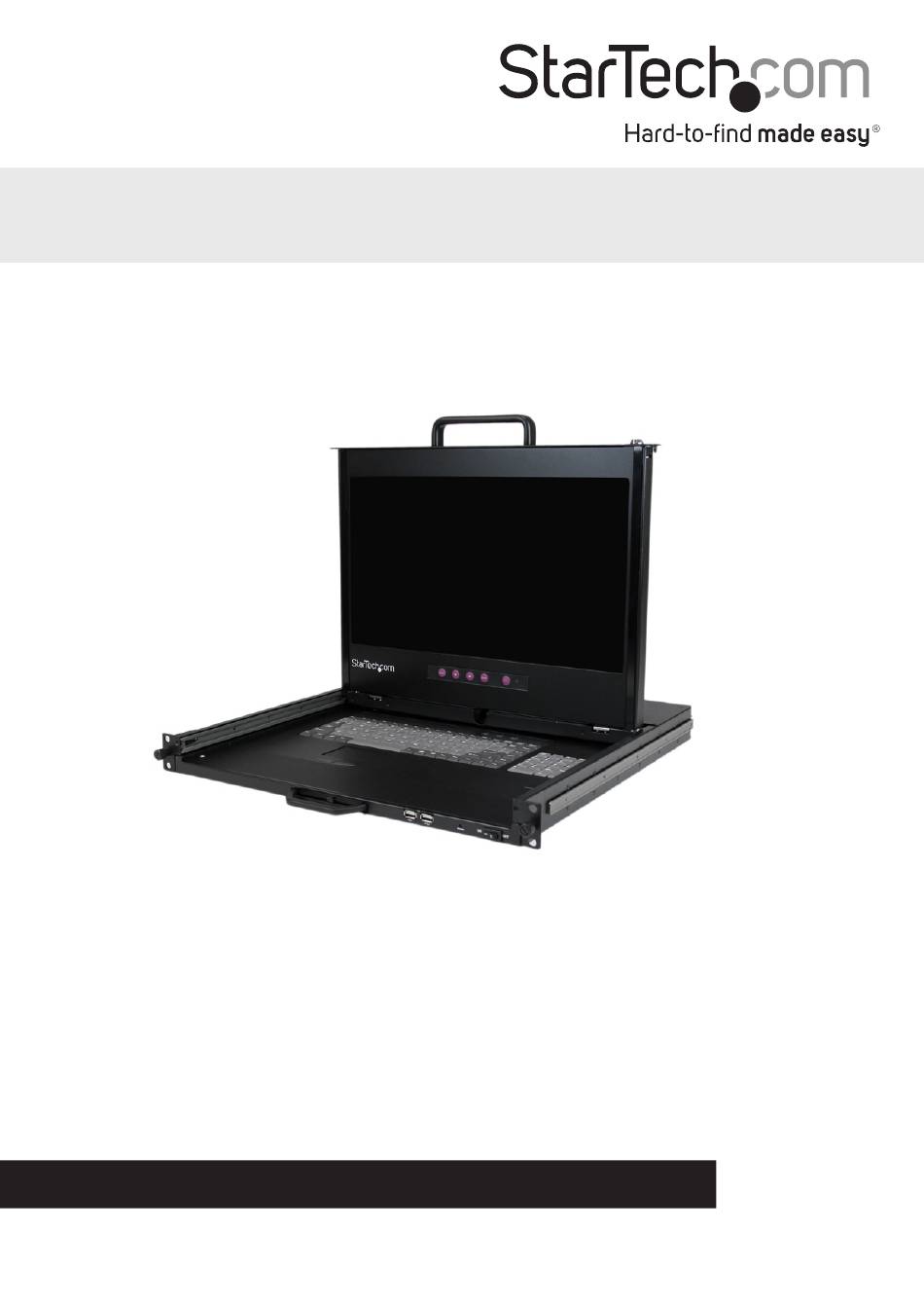

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/09/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 Front Panel Controls ................2 Installation ....................3 Rack Installation............................3 PC / Server Connection ........................... 5 Connecting to a KVM Switch ........................ 5 Operation ....................5 Dual Rail Slide ............................. -
Page 4: Product Diagram
Product Diagram Front View Top Handle Key Lock Menu Buttons Fingerprint Reader Keyboard Tray Handle Power Switch USB 2.0 Hub Ports Top Handle Hidden Keyboard Tray Handle Power Switch USB 2.0 Hub Ports Rear View PS/2 - USB USB Hub PC Selector Switch Connection Modular KVM... -
Page 5: Introduction
Introduction Packaging Contents • 1 x Dual Rail Rack Console • 1 x Set, Mounting Rails • 2 x USB A to A Cables • 1 x DVI Cable • 1 x VGA PS/2 KVM Cable • 6 x 6mm Flat Screws •... -
Page 6: Installation
Installation Rack Installation NOTE: The cabinet depth must be within 22.4 – 34.2” (570 - 870 mm). 1. Adjust rail with rear bracket to fit your rack. 2. Secure the front and rear brackets onto the rack using screws and cage nuts appropriate to your rack (not included). - Page 7 4. Slide the console into the rails and leave about 5-10cm of space to install the blockers. 5. Install one of the Blockers onto the back of the console as shown, and use the included screw to secure it. Repeat on the other side. Instruction Manual...
-
Page 8: Pc / Server Connection
6. Install three of the included 6mm Flat Screws to secure the console to the bracket. Repeat on the other side to complete the installation. PC / Server Connection 1. Turn off the PC / Server you are connecting to the console. 2. -
Page 9: Operation
Operation 1. Once all cables are securely connected and all mounting screws are properly tightened, loosen the thumbscrews on the front of the console. 2. Grasp the Top Handle and pull the console outward and then lift upward to open. 3. -
Page 10: Dual Rail Slide
Dual Rail Slide The dual-rail console design allows the LCD display and keyboard/mouse to slide independently from the keyboard/touchpad tray. 1. With the console lid open (keyboard tray can be in the rack or pulled out), grab both sides of the LCD panel at the bottom and pull towards you to slide the LCD forward. 2. -
Page 11: Fingerprint Reader
Fingerprint Reader Once installed, the fingerprint reader software offers several options to configure biometric access, application / file launching and virtual secure storage drives. Windows 1. Insert the included CD and navigate to your CD/DVD drive to install the included fingerprint reader application. - Page 12 Password Bank Management – Manages passwords for both websites and applications. Finger Launch Management – Configures application or file launch at the swipe of a finger. Data Protection: Change Default Password – Create or change a default password for data encryption. Yo-Safe Management –...
- Page 13 Advance Settings: BioExcess™ Functions Settings – Enable or disable Fast User Switching for all accounts. Data Backup – Backup enrolled fingerprints and Password Bank items. Data Restore – Restore backed up data from a file. Information: About – Display software version information Help –...
-
Page 14: Specifications
Specifications Display Size 17.3” Panel Type Active Matrix TFT LED Maximum Screen Resolution 1920x1080 (Full HD) Supported Platforms USB or PS/2 Server / KVM Video Type DVI or VGA Response Time Contrast Ratio 650:1 Brightness 300cd/m² Viewing Angle 140° (H), 120° (V) Pixel Pitch 0.264 x 0.264 mm Keyboard/Mouse... -
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 16 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
