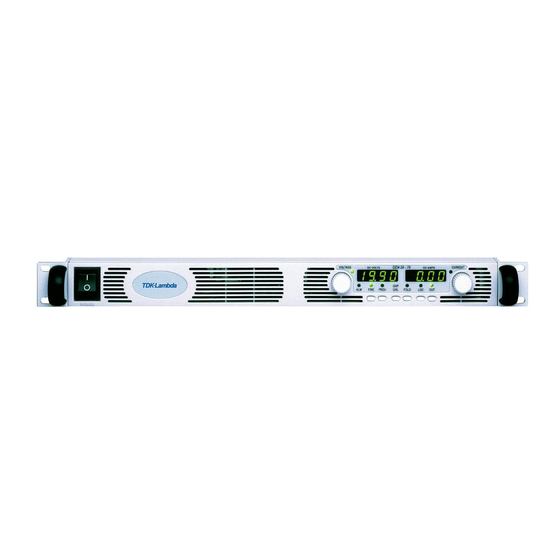

TDK-Lambda GENESYS 750W User Manual

Programmable dc power supplies
Hide thumbs Also See for GENESYS 750W:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual
USER MANUAL FOR
GENESYS
Programmable DC Power Supplies
Document: 83-507-013 Rev G
TDK-Lambda Americas Inc.
405 Essex Road, Neptune, NJ 07753
Tel:
Fax:
Web: www.us.tdk-lambda.com/hp
750W/1500W
TM
(732) 922-9300
(732) 922-9334

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GENESYS 750W and is the answer not in the manual?

Questions and answers

Related Manuals for TDK-Lambda GENESYS 750W

Summary of Contents for TDK-Lambda GENESYS 750W

  • Page 1 USER MANUAL FOR GENESYS 750W/1500W Programmable DC Power Supplies Document: 83-507-013 Rev G TDK-Lambda Americas Inc. 405 Essex Road, Neptune, NJ 07753 Tel: (732) 922-9300 Fax: (732) 922-9334 Web: www.us.tdk-lambda.com/hp...
  • Page 4 Genesys Manual Supplement For units equipped with the “IEMD” option, for IEEE-488 with Multi-drop, also refer to IEMD manual 83030200 For units equipped with the “LAN” option for Local Area Network with Multi-drop, also refer to LAN manual 83034100 For units equipped with “MD” option, for Multi-drop, also refer to the respective IEMD or LAN manuals.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS WARRANTY_________________________________________________________________ 7 ENGLISH SAFETY INSTRUCTIONS______________________________________________ 8 FRANCAIS (FRENCH) SAFETY INSTRUCTIONS___________________________________ 11 DEUTSCH (GERMAN) SAFETY INSTRUCTIONS___________________________________ 14 ITALIANO (ITALIAN) SAFETY INSTRUCTIONS_____________________________________17 PORTUGUES (PORTUGESE) SAFETY INSTRUCTIONS_____________________________ 20 ESPAÑOL (SPANISH) SAFETY INSTRUCTIONS___________________________________ 23 1 GENERAL INFORMATION ___________________________________________________ 26 1.1 User Manual Content _______________________________________________________ 26 1.2 Introduction ______________________________________________________________ 26 1.2.1 General Description _________________________________________________ 26 1.2.2 Models Covered by this Manual _______________________________________ 26...
  • Page 6 2.12 Supplemental Characteristics ________________________________________________ 32 2.13 Genesys ™ Outline Drawings _______________________________________________ 33 3 INSTALLATION ____________________________________________________________ 34 3.1 General ______________________________________________________________ 34 3.2 Preparation for Use ________________________________________________________ 34 3.3 Initial Inspections __________________________________________________________ 34 3.4 Rack Mounting ____________________________________________________________ 35 3.4.1 To install the Power Supply in a Rack: __________________________________ 35 3.4.2 Rack Mount Slides (optional): _________________________________________ 35 3.5 Location, Mounting and Cooling _______________________________________________ 35 3.6 AC Source Requirements ___________________________________________________ 35...
  • Page 7 3.10.3 Remote sensing __________________________________________________ 47 3.10.4 J2 sense connector technical information _______________________________ 48 3.11 Repackaging for Shipment __________________________________________________ 48 4 FRONT AND REAR PANEL CONTROLS AND CONNECTORS _______________________ 49 4.1 Introduction ______________________________________________________________ 49 4.2 Front Panel Controls and Indicators ____________________________________________ 49 4.3 Rear Panel Connections and Controls __________________________________________ 51 4.4 Rear Panel SW1 Setup Switch ________________________________________________ 52 4.4.1 SW1 Position Function ______________________________________________ 53...
  • Page 8 5.15.1 Basic Parallel Operation ____________________________________________ 64 1. Setting Up the Master Unit __________________________________________ 64 2. Setting up the Slave Units __________________________________________ 64 3. Daisy Chain Connection: (See Fig. 5-6) ________________________________ 65 4. Setting Over Voltage protection ______________________________________ 65 5. Setting Foldback Protection _________________________________________ 65 6.
  • Page 9 7.5.3 End of Message ___________________________________________________ 79 7.5.4 Command Repeat __________________________________________________ 79 7.5.5 Checksum ________________________________________________________ 79 7.5.6 Acknowledge ______________________________________________________ 79 7.5.7 Error message _____________________________________________________ 79 7.5.8 Backspace ________________________________________________________ 79 7.6 Error Messages ___________________________________________________________ 80 7.7 Command Set Description ___________________________________________________ 81 7.7.1 General Guide _____________________________________________________ 81 7.7.2 Command Set Categories ____________________________________________ 81 7.7.3 Initialization Control Commands _______________________________________ 81 7.7.4 ID Control Commands _______________________________________________ 81...
  • Page 10 9.5 Parts Replacement and Repairs ______________________________________________ 95 9.6 Troubleshooting ___________________________________________________________ 95 9.7 Fuse Rating ______________________________________________________________ 97 83507013 Rev G...

  • Page 11: Warranty

    QA seal has been removed or altered by anyone other than TDK-Lambda Americas Inc. authorized personnel. TDK-Lambda Americas Inc. does not warrant the buyer’s circuitry or malfunctions of TDK-Lambda Americas Inc.

  • Page 12: English Safety Instructions

    Failure to comply with the safety precautions or warnings in this document violates safety standards of design, manufacture and intended use of this equipment and may impair the built-in protections within. TDK-Lambda Americas Inc. shall not be liable for user’s failure to comply with these requirements. INSTALLATION CATEGORY The Genesys power supply series has been evaluated to INSTALLATION CATEGORY II.

  • Page 13: Safety Instructions

    PARTS SUBSTITUTIONS & MODIFICATIONS Parts substitutions and modifications are allowed by authorized TDK-Lambda Americas Inc. service personnel only. For repairs or modifications, the instrument must be returned to an authorized TDK- Lambda Americas Inc. service facility. SAFETY INSTRUCTIONS ENVIRONMENTAL CONDITIONS...
  • Page 14 FCC COMPLIANCE NOTICE: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 15: Francais (French) Safety Instructions

    équipement et peut compromettre les protections incorporées en lui. TDK-Lambda Americas Inc. ne sera pas responsable des conséquences si l'utilisateur ne respecte pas ces consignes.
  • Page 16 SUBSTITUTIONS ET MODIFICATIONS DE PIECES Les substitutions et modifications de pièces ne peuvent être effectuées que par les techniciens d'entretien agréés TDK-Lambda Americas Inc. Pour les réparations ou les modifications, l'instrument doit être renvoyé à un centre d'entretien agréé TDK-Lambda Americas Inc.
  • Page 17 NOTE CONCERNANT LA CONFORMITE FCC : Nota : Cet équipement a été testé et s'est avéré conforme aux limites pour un appareil numérique Classe A selon la part 15 des règles FCC. Ces limites sont conçues pour assurer une protection raisonnable contre les interférences dangereuses lorsque l'équipement est utilisé...

  • Page 18: Deutsch (German) Safety Instructions

    Warnhinweise aus diesem Handbuch führt zur Verletzung der bestehenden Sicherheitsstandards für Design, Produktion und der zweckbestimmten Verwendung der Anlage und kann die integrierten Schutzvorrichtungen beschädigen. TDK-Lambda Americas Inc. ist nicht haftbar für Schäden, die durch Missachtung dieser Sicherheitsvorschriften entstehen können. INSTALLATIONSKATEGORIE Die Genesys Reihe der Netzgeräte wurde in die INSTALLATIONSKATEGORIE II eingeteilt.
  • Page 19 SPANNUNGSFÜHRENDE TEILE Die Geräteabdeckung darf nicht durch Betriebspersonal entfernt werden. Interne Modifikationen sowie Bauteileaustausch sind nur durch von TDK-Lambda Americas Inc. qualifiziertes Personal erlaubt. Vor dem Austausch von Komponenten muss immer die Versorgungsspannung getrennt werden. Um Personenschäden zu vermeiden, muss vor dem Kontakt mit dem Gerät immer die Stromversorgung unterbrochen, die Stromkreise entladen und externe Spannungsquellen entfernt werden.
  • Page 20 Ein (Versorgung) Das WARNSYMBOL deutet auf eine Gefahr hin. Die Aufmerksamkeit wird auf ein Verfahren gelenkt. Eine Missachtung der Einhaltung des Verfahrens kann zu Personenschaden führen. Eine WARNUNG darf nicht übergangen werden und alle angezeigten Umstände müssen vollkommen verstanden und eingehalten werden. Das VORSICHTSYMBOL deutet auf eine Gefahr hin.

  • Page 21: Italiano (Italian) Safety Instructions

    TDK-Lambda Americas Inc. non si assume alcuna responsabilità per il mancato rispetto di questi requisiti da parte dell'utente. CATEGORIA DI INSTALLAZIONE La serie di alimentatori Genesys™...
  • Page 22 sicurezza, eventuali fluttuazioni nella tensione di rete non devono superare il campo di potenze nominali suddetto. CIRCUITI SOTTO TENSIONE Nessun addetto deve mai rimuovere il coperchio dello strumento. Le regolazioni interne e la sostituzione dei componenti sono consentite unicamente al personale qualificato di TDK-Lambda Americas Inc.
  • Page 23 Il simbolo di AVVERTIMENTO denota un periodo. È necessario prestare attenzione alla procedura. Il mancato rispetto della procedura può sfociare in un infortunio. Non ignorare alcun simbolo di AVVERTIMENTO. Tutte le condizioni indicate devono essere pienamente comprese e rispettate. Il simbolo di ATTENZIONE denota un pericolo. È necessario prestare attenzione alla procedura.

  • Page 24: Portugues (Portugese) Safety Instructions

    A TDK-Lambda Americas Inc. não poderá ser responsabilizada pelo não cumprimento destes requisitos por parte do utilizador.
  • Page 25 As modificações e substituições de peças apenas são permitidas quando realizadas pelo pessoal de assistência da TDK-Lambda Americas Inc. Para a realização de reparações ou modificações, é necessário devolver o instrumento a uma unidade de serviço autorizada da TDK-Lambda Americas Inc.
  • Page 26 Activado (alimentação) O sinal de AVISO assinala um perigo. Solicita-se atenção para um procedimento. Não seguir correctamente o procedimento pode resultar em ferimentos. Não se deve ignorar um sinal de AVISO, e todas as condições indicadas devem ser compreendidas e respeitadas. O sinal de CUIDADO assinala um perigo.

  • Page 27: Español (Spanish) Safety Instructions

    TDK-Lambda Americas Inc. no asumirá responsabilidad alguna si el usuario no cumple estos requisitos.
  • Page 28 El personal operativo no debe retirar la cubierta del aparato. Los ajustes internos o el reemplazo de componentes sólo pueden ser realizados por el personal cualificado de TDK-Lambda Americas Inc. Desenchufe siempre el cable de alimentación antes de reemplazar los componentes. Para evitar lesiones, desenchufe siempre el cable de alimentación, descargue los circuitos y desconecte la fuente...
  • Page 29 Apagado (fuente de alimentación) Encendido (fuente de alimentación) El símbolo de ADVERTENCIA indica un peligro. Llama la atención ante un procedimiento. Si el procedimiento no se realiza correctamente, podrían producirse lesiones personales. Los símbolos de ADVERTENCIA no se pueden pasar por alto y deben comprenderse y cumplirse todas las condiciones indicadas.

  • Page 30: General Information

    GENERAL INFORMATION 1.1 User Manual Content This User’s Manual contains the operating instructions, installation instructions and specifications of the Genesys™ 750W and 1500W power supply series. The instructions refer to the standard power supplies, including the built-in RS232/RS485 serial communication. 1.2 Introduction 1.2.1 General Description Genesys™...

  • Page 31: Features And Options

    1.2.3 Features and Options  Constant Voltage / Constant Current with automatic crossover.  Active power factor correction.  Universal Input Voltage (85265Vac), continuous operation.  Embedded Microprocessor Controller.  Built-in RS232/RS485 Interface.  Voltage & Current high resolution adjustment by digital encoders. ...

  • Page 32: Analog Voltage Programming And Monitoring

    1.2.6 Analog Voltage Programming and Monitoring Analog inputs and outputs are provided at the rear panel for analog control of the power supply. The Output Voltage and the Current can be programmed by analog voltage or by resistor, and can be monitored by analog voltage. The power supply output can be remotely set to On or Off and analog signals monitor the proper operation of the power supply and the mode of operation (CV/CC).

  • Page 33: Accessories

    1.3 Accessories 1.3.1 Included Accessories The following accessories are delivered with the power supply: 1.3.1.1 Serial Link Cable Serial link cable for linking power supplies by RS485 communication.GEN/RJ45. Cable description: 0.5m Length, shielded, RJ-45 type plugs, eight (8) contacts (P/N 15507201) 1.3.1.2 Hardware (delivered with power supply) ...

  • Page 34: Specifications

    2 SPECIFICATIONS 2.1 OUTPUT RATING – MODEL 6-100 8-90 12.5-60 20-38 30-25 40-19 60-12.5 80-9.5 100-7.5 150-5 300-2.5 600-1.3 – 1.Rated output voltage (*1) 12.5 – 2.Rated output current 750W (*2) 12.5 – 3.Rated output power 750W MODEL 6-200 8-180 12.5-120 20-76 30-50 40-38...

  • Page 35: Programming And Readback

    2.6 PROGRAMMING AND READBACK (RS232/485, Optional IEEE Int – Vout programming accuracy 0.05% of actual output voltage + 0.05% of rated output voltage. – Iout programming accuracy 0.1% of actual output current + 0.1% of rated output current – Vout programming resolution. 0.012% of full scale.

  • Page 36: Supplemental Characteristics

    3. IEC1000 Data: Performance of the power supply under IEC1000 test conditions. 4. EMI Data: Typical EMI (conducted and radiated) performance of the power supply. The supplemental characteristics data is held in each TDK-Lambda Americas Inc. sales and service facility. For further details please contact the TDK-Lambda Americas Inc. office nearest you.

  • Page 37: Genesys ™ Outline Drawings

    2.13 OUTLINE DRAWINGS 83507013 Rev G...

  • Page 38: Installation

    Keep all packing material until the inspection has been completed. If damage is detected, file a claim with carrier immediately and notify the TDK-Lambda Americas Inc. sales or authorized service facility nearest you.

  • Page 39: Rack Mounting

    3.4 Rack Mounting The Genesys™ power supply series is designed to fit in a standard 19” equipment rack. 3.4.1 To install the Power Supply in a Rack: Use the front panel rack-mount brackets to install the power supply in the rack. Use a support bar to provide adequate support for the rear of the power supply.

  • Page 40: Ac Input Power Connection

    3.7 AC Input Power Connection CAUTION Connection of this power supply to an AC power source should be made by an electrician or other qualified personnel. WARNING There is a potential shock hazard if the power supply chassis (with cover in place) is not connected to an electrical safety ground via the safety ground in the AC input connector.

  • Page 41: Ac Input Wire Connection, 1500W Models

    3.7.4 AC Input Wire Connection, 1500W Models a) Strip the outside insulation of the AC cable approx. 10cm (3.94 inches). Trim the wires so that the ground wire is 10mm (0.4 inches) longer than the other wires. Strip 14mm (0.55 inches) at the end of each of the wires. b) Unscrew the base of the strain relief from the helix-shaped body.

  • Page 42: Prior To Operation

    3.8.2 Prior to Operation a) Ensure that the power supply is configured to the default setting:  On/Off switch at Off position.  Dip switch: All positions at Down (“Off”) position.  J2 Sense connector: Configured to Local Sense as shown in Fig. 3-4: Plug P/N: MC1,5/5-ST-3,81 1 Remote (+) sense (Phoenix)

  • Page 43: Uvl Check

    d) Rotate the VOLT encoder CCW to adjust the OVP setting to 50% of the unit voltage rating. e) Wait a few seconds until the VOLT display returns to show the Output Voltage. f) Adjust the Output Voltage toward its maximum and check that the Output Voltage cannot be increased more than the OVP setting.

  • Page 44: Connecting The Load

    Connecting the Load WARNING Turn Off the AC input power before making or changing any rear panel connection. Ensure that all connections are securely tightened before applying power. There is a potential shock hazard when using a power supply with a rated output greater than 40V. 3.9.1 Load Wiring The following considerations should be made to select wiring for connecting the load to the power supply:...

  • Page 45: Wire Termination

    Maximum length in meters to limit Cross sect. area Resistivity voltage drop to 1V or less (mm²) OHM/Km 150A 8.21 24.0 12.0 5.09 39.2 18.6 3.39 59.0 29.4 14.8 1.95 102.6 51.2 25.6 10.2 1.24 160.0 80.0 40.0 16.0 0.795 250.0 125.0 62.0...

  • Page 46: Making The Load Connections

    3.9.6 Making the Load Connections WARNING Hazardous voltages may exist at the outputs and the load connections when using a power supply with a rated output greater than 40V. To protect personnel against accidental contact with hazardous voltages, ensure that the load and its connections have no accessible live parts.
  • Page 47 80V to 600V Models WARNING Hazardous voltages exist at the outputs and the load connections. To protect personnel against accidental contact with hazardous voltages, ensure that the load and its connections have no accessible live parts. Ensure that the load wiring insulation rating is greater than or equal to the maximum output voltage of the power supply.

  • Page 48: Connecting Single Loads, Local Sensing (Default)

    4. Insert the stripped wires into enclosure opening through the shutter and then to the terminals. Tighten the terminals screws securely. (see Fig.3-8). 5. Loosen the two chassis screws marked “A” halfway. 6. Assemble the enclosure top cover to the chassis and tighten screws “A” (tightening torque: 4.8-5.3 Lb-inch).

  • Page 49: Connecting Single Loads, Remote Sensing

    3.9.8 Connecting Single Loads, Remote Sensing Fig.3-11 shows recommended remote sensing connection for single loads. Remote sensing is used when, in Constant Voltage mode, the load regulation is important at the load terminals. Use twisted or shielded wires to minimize noise pick-up. If shielded wires are used, the shield should be connected to the ground at one point, either at the power supply chassis or the load ground.

  • Page 50: Multiple Load Connection With Distribution Terminals

    3.9.10 Multiple Load Connection with Distribution Terminals If remotely located output distribution terminals are used, the power supply output terminals should be connected to the distribution terminals by pair of twisted and/or shielded wires. Each load should be separately connected to the remote distribution terminals (see Fig.3-13).

  • Page 51: Local Sensing

    3.10.2 Local sensing The power supply is shipped with the rear panel J2 sense connector wired for local sensing of the Output Voltage. See Table 3-4 for J2 terminals assignment. With local sensing, the Output Voltage regulation is made at the output terminals. This method does not compensate for voltage drop on the load wires, therefore, it is recommended only for low load current applications or where the load regulation is less critical.

  • Page 52: J2 Sense Connector Technical Information

    Tightening torque: 0.22-0.25Nm (1.95-2.21Lb-Inch.). 3.11 Repackaging for Shipment To ensure safe transportation of the instrument, contact the TDK-Lambda Americas Inc. sales or service facility near you for Return Authorization and shipping information. Please attach a tag to the power supply describing the problem and specifying the owner, model number and serial number of the power supply.

  • Page 53: Front And Rear Panel Controls And Connectors

    FRONT AND REAR PANEL CONTROLS AND CONNECTORS Introduction The Genesys Power Supply series has a full set of controls, indicators and connectors that allow the user to easily setup and operate the unit. Before starting to operate the unit, please read the following Sections for explanation of the functions of the controls and connectors terminals.
  • Page 54 Table 4-1: Front Panel Controls and Indicators Number Control/Indicator Description Section CURRENT display 4 digit, 7 segment LED display. Normally displays the Output Current. When the PREV button is pressed, the display indicates the programmed setting of Output Current. CURRENT indicator Green LED, lights for Constant-Current mode operation CURRENT control High resolution rotary encoder for adjusting the Output Current.

  • Page 55: Rear Panel Connections And Controls

    Number Control/Indicator Description Section Main function: Press PREV to display the Output Voltage and PREV/button 5.17 Current setting. For 5 sec. the display will show the setting and then it will return to show the actual Output Voltage and Current. Auxiliary function: Front Panel Lock.

  • Page 56: Rear Panel Sw1 Setup Switch

    Table 4-2: Rear panel connections and controls Number Item Description Section 3.7.1 AC input Wire clamp connector for 1500W units. 3.7.2 connector IEC connector for 750W units. 3.9.6 DC output Bus-bars for 6V to 60V models. Wire clamp connector for 80V to 600V models. Remote-In RJ-45 type connector, used for connecting power supplies to RS232 or connector...

  • Page 57: Sw1 Position Function

    4.4.1 SW1 Position Function Refer to Table 4-3 for description of SW1 position functions. The factory default setting is Down for all positions. Table 4-3: SW1 Positions Functions Position Function DOWN (Factory default) Output Voltage Output Voltage Output Voltage programmed by remote SW1-1 Remote Analog programmed by Front...

  • Page 58: Making J1 Connections

    4.5.1 Making J1 connections  J1 Connector type: AMP, P/N: 5747461-3  J1 plug description: AMP, 749809-9 or equivalent.  Wire dimension range: AWG26-22  Extraction tool: AMP, 91232-1 or equivalent.  Manual Pistol grip tool: Handle: AMP, P/N: 58074-1 Head: AMP, P/N: 58063-2 Before making any connection, turn the AC on/Off switch to the Off position and wait until the front panel display has turned Off.
  • Page 59 Table 4-4: J1 connector terminals and functions Signal name Function Section contact J1-1 ENA_IN Enable/Disable the power supply output by dry-contact (short/open) with ENA_OUT. J1-2 IF_COM Isolated Interface Common. Return for the SO control, PS_OK signal 5.7, 5.10 J1-3 and for the optional IEEE interface. J1-47 No Connection J1-8...

  • Page 60: Local Operation

    LOCAL OPERATION Introduction This Chapter describes the operating modes that are not involved in programming and monitoring the power supply via its serial communication port (RS232/RS485) or by remote analog signals. Ensure that the REM/LOC LED on the front panel is Off, indicating Local mode.

  • Page 61: Constant Current Mode

    5.2.2 Constant Current Mode  In constant current mode, the power supply regulates the Output Current at the selected value, while the voltage varies with the load requirement.  While the power supply is operating in constant current mode, the CURRENT LED on the front panel illuminates.

  • Page 62: Activated Ovp Protection Indications

    To preview the OVP setting, press the OVP/UVL pushbutton so that the CURRENT display will show “OUP”. At this time, the VOLTAGE display will show the OVP setting. After 5 seconds, the display will return to its previous state. 5.3.2 Activated OVP protection indications When the OVP is activated the power supply output shuts down.

  • Page 63: Output On/Off Control

    armed, therefore, if the load current is higher than the current limit setting, the Foldback protection will be activated again. Press the FOLD button to cancel the Foldback protection. The power supply output will be disabled and the VOLTAGE display will show “OFF”. Press the OUT button to enable the power supply output.

  • Page 64: Enable/Disable Control Via Rear Panel J1 Connector

    Enable/Disable Control via Rear Panel J1 Connector Contacts 1 and 14 of J1 (Fig.4-2, item 5) serve as Output Enable/Disable terminals by switch or relay. This function is Enabled or Disabled by the SW1 Setup switch position 9. Refer to Table 5-3 for Enable/Disable function and SW1 setting. Enable/Disable Power supply SW1-9 setting...

  • Page 65: Safe-Start And Auto-Restart Modes

    5.11 Safe-Start and Auto-Restart Modes When turning On the power supply AC On/Off, it can start to its last setting of Output Voltage and Current with the output Enabled (Auto-restart mode) or start with the output Disabled (Safe-start mode). Press and hold the OUT button to select between Safe-start and Auto-restart modes.

  • Page 66: Series Operation

    5.14 Series Operation Power supplies of the SAME MODEL can be connected in series to obtain increased output voltage. Split connection of the power supplies gives positive and negative output voltage. CAUTION Do not connected power supplies from different manufacturers in series or in parallel.

  • Page 67: Series Connection For Positive And Negative Output Voltage

    Remote programming in series operation for increased output voltage: Programming by external voltage: The analog programming circuits of this power supply are referenced to the negative output potential. Therefore, the circuits used to control each series connected unit must be separated and floated from each other.

  • Page 68: Parallel Operation

    Remote programming in series operation for positive and negative output voltage Programming by external voltage: The analog programming circuits of this power supply are referenced to the negative output potential. Therefore, the circuits used to control each series connected unit must be separated and floated from each other.

  • Page 69: Daisy Chain Connection: (See Fig. 5-6)

    Master unit’s control. The Output Current setting of each unit should be programmed to the desired load current divided by the number of parallel units. 2. Set the rear panel setup switch SW1 position 2 to the up position. 3. Set SW1 position 3 of Slave same as SW1 position 4 of Master (both 5V or 10V).

  • Page 70: Advanced Parallel Configuration

    5.15.2.1 Advanced Parallel Configuration 1. SW1 position 2 - Down in the Master Supply and up in all Slave Supplies. 2. Connect a short between J1-8 and J1-12 in all Slave Supplies. 3. Connect J1-25 of the Master Supply to J1-10 of all Slave Supplies. The following set-up connections are optional but are strongly recommended.

  • Page 71: Current Display Accuracy

    5.15.2.4 CURRENT Display Accuracy In the advanced parallel mode, the Master unit calculates the total current by multiplying the Master output current by the number of Slave units. In this method, the CURRENT display accuracy is 2% +/- 1 count. In cases that higher accuracy is required, it is recommended to use the basic parallel operation mode.

  • Page 72: Daisy-Chain Connection

    Twisted pair To J1-10 As short as possible SLAVE#2 MASTER POWER SUPPLY Twisted POWER SUPPLY pair J1-25 LOAD IPGM J1-8 J1-12 J1-10 SLAVE#1 POWER SUPPLY Fig.5-5: Parallel operation with Remote sensing 5.16 Daisy-Chain Connection It is possible to configure a multiple power supply system to shut down all the units when a fault condition occurs in one of the units.

  • Page 73: Locked Front Panel

    5.17.2 Locked Front Panel In this mode the following front panel controls are Disabled:  VOLTAGE and CURRENT encoders.  FOLD button.  OUT button The power supply will not respond to attempts to use these controls. The VOLT display will show “LFP”...

  • Page 74: Remote Analog Programming

    6 REMOTE ANALOG PROGRAMMING Introduction The rear panel connector J1 allows the user to program the power supply Output Voltage and Current with an analog device. J1 also provides monitoring signals for Output Voltage and Output Current. The programming range and monitoring signals range can be selected between 0-5V or 0-10V using the setup switch SW1.

  • Page 75: Remote Voltage Programming Of Output Voltage And Output Current

    Remote Voltage Programming of Output Voltage and Output Current CAUTION To maintain the power supply isolation and to prevent ground loops, use an isolated programming source when operating the power supply via remote analog programming at the J1 connector. Perform the following procedure to set the power supply to Remote Voltage programming: 1.

  • Page 76: Resistive Programming Of Output Voltage And Current Limit

    Resistive Programming of Output Voltage and Current Limit For resistive programming, internal current sources, for Output Voltage and/or Output Current control, supply 1mA current through external programming resistors connected between J1-9 & 22 and J1-10 & 23. The voltage across the programming resistors is used as a programming voltage for the power supply.

  • Page 77: Remote Monitoring Of Output Voltage And Current

    J1 connector, rear panel view OUTPUT CURRENT OUTPUT VOLTAGE PROGRAMMING PROGRAMMING PROGRAMMING PROGRAMMING RESISTOR RESISTOR OPTIONAL SETS OPTIONAL SETS LOWER LIMIT LOWER LIMIT OPTIONAL SETS OPTIONAL SETS UPPER LIMIT UPPER LIMIT Fig.6-2: Remote resistive programming Remote Monitoring of Output Voltage and Current The J1 connector, located on the rear panel provides analog signals for monitoring the Output Voltage and Output Current.

  • Page 78: Rs232 & Rs485 Remote Control

    7 RS232 & RS485 REMOTE CONTROL Introduction This Chapter describes the operation of the Genesys™ 750W power supplies via the serial communication port. Details of the initial set-up, operation via RS232 or RS485, the command set and the communication protocol are described in this Chapter. Configuration 7.2.1 Default Setting The power supply is shipped with the following settings:...

  • Page 79: Setting The Unit Into Remote Or Local Mode

    7.2.5 Setting the Unit into Remote or Local Mode 1. The unit will be put into Remote mode only via serial communication command. Commands that will put the unit into Remote mode are: PV n OUT n PC n RMT n (for n values see Tables 7-3 and 7-4 and 7-5) 2.

  • Page 80: Rear Panel Rs232/485 Connector

    Rear Panel RS232/RS485 Connector The RS232/RS485 interface is accessible through the rear panel RS232/RS485 IN and RS485 OUT connectors. The connectors are 8 contact RJ-45. The IN and OUT connectors are used to connect power supplies in a RS232 or RS485 chain to a controller. Refer to Fig. 7-1 for IN/OUT connectors.
  • Page 81 L=2m typ. Sockets DB-25 CONNECTOR 8 PIN CONNECTOR REMARKS NAME PIN NO. PIN NO. NAME SHIELD SHIELD TWISTED PAIR Fig.7-2: RS232 cable with DB25 connector (P/N: GEN/232-25) L=2m typ. Sockets DB-9 CONNECTOR 8 PIN CONNECTOR REMARKS NAME PIN NO. PIN NO. NAME HOUSING HOUSING...

  • Page 82: Multi Power Supply Connection To Rs232 Or Rs485 Bus

    7.4.2 Multi Power Supply Connection to RS232 or RS485 Bus Up to 31 units can be connected (daisy chained) to the RS232 or RS485 bus. The first unit connects to the controller via RS232 or RS485 and the other units are connected via the RS485 bus.

  • Page 83: Communication Interface Protocol

    Communication Interface Protocol NOTE The address (“ADR n”) command must return an “OK” response before any other commands are accepted by a power supply. 7.5.1 Data Format Serial data format is 8 bit, one start bit and one stop bit. No parity bit. 7.5.2 Addressing The Address is sent separately from the command.

  • Page 84: Error Messages

    Error Messages The power supply will return error messages for illegal commands and illegal programming parameters. Refer to Table 7-1 for programming error messages and Table 7-2 for command error messages. Table 7-1: Programming error messages Error Code Description Returned when program voltage (PV) is programmed above acceptable range. Example: PV above ‘105% of supply rating’...

  • Page 85: Command Set Description

    Command Set Description 7.7.1 General Guide 1. Any command or argument may be in capital letters or small letters. 2. In commands with an argument, a space must be between the command and the argument. 3. For any command that sets a numeric value, the value may be up to 12 characters long.

  • Page 86: Output Control Commands

    7.7.5 Output Control Commands Command Description Sets the output voltage value in Volts. The range of voltage value is described in Table 7-3. The PV n maximum number of characters is 12. See the following examples for PV n format: PV 12, PV 012, PV 12.0, PV 012.00, etc…...

  • Page 87: Global Output Commands

    Comment Description Returns the setting “n” where “n” is the exact string in the user’s “UVL n”. When in Local mode, UVL? returns the last setting from the front panel in a 4 digit string. Sets the Auto-restart mode to ON or OFF. AST n AST 1 (or AST ON): Auto restart On.

  • Page 88: Fast Queries

    Table 7-3: Voltage Programming Range Table 7-4: Current Programming Range Model Rated Output Minimum Maximum Model Minimum Maximum Voltage (V) 0.000 8.000 GEN6-100 000.00 100.00 90.00 00.000 10.000 GEN8-90 000.00 00.000 15.000 GEN12.5-60 000.00 60.000 00.000 20.000 GEN20-38 00.00 38.000 00.000 30.000 GEN30-25...

  • Page 89: Fast Test For Connection

    7.9.1 Fast Test for Connection This is an addressed query that is good for scanning to see what supplies are “on line”. If no response is returned within 10 mSec, your control program has determined that no power supply is connected at that address. Query Format: Send two bytes of unreadable characters.

  • Page 90: Read Power-On Time

    7.9.3 Read Power-On Time This query allows you to read how many minutes the power supply has been running since it was built. The accuracy, in minutes, is not guaranteed for time critical applications. Query Format: Send two bytes of unreadable characters. First: Byte 1 = 1010 0110 = A6 hex Byte 2 = 000x xxxx (where xxxxx is the address of the supply in binary)

  • Page 91: Status, Error And Srq Registers

    7.11 Status, Error and SRQ Registers 7.11.1 General Description This Section describes the structure and operation of the six status, error, and SRQ registers. The registers can be set or red via RS232/RS485 commands. Refer to Fig. 7-7 for the Status and Error Registers Diagram. NOTE These registers operate in a way that is similar to the IEEE-488 and SCPI registers (as used with the “-IEMD”...

  • Page 92: Conditional Registers (Continued)

    7.11.3 Conditional Registers (continued) Table 7-8: Fault Condition Register (FLT?) Fault name Fault symbol Bit Set condition Bit Reset condition 0 (LSB) Spare bit SPARE Fixed to zero Fixed to zero AC Fail AC fail has occurred. The AC input returns to normal. Over OTP shutdown has The power supply cools down.

  • Page 93: Service Request: Enable And Event Registers

    7.11.4 Service Request: Enable and Event Registers The conditional Registers are continuously monitored. When a change is detected in a register bit which is enabled, the power supply will generate an SRQ message. The SRQ message is: “!nn” terminated by CR, where the nn is the power supply address.
  • Page 94 Status Enable Register (SENA nn, SENA?) The Status Enable Register is set by the user to Enable SRQs for changes in power supply status. Table 7-12: Status Enable Register Status name Status symbol Bit Set condition Bit reset condition 0 (LSB) Constant Voltage User command: “SENA nn”...

  • Page 95: Serial Communication Test Set-Up

    7.12 Serial Communication Test Set-Up Use the following instructions as basic set-up to test the serial communication operation. 1. Equipment: PC with Windows Hyper Terminal, software installed, Genesys Power supply, RS232 cable. 2.1 Open Hyper Terminal……………………. New Connection. 2. PC set-up: 2.2 Enter a name 2.3 Connect to…………………………………...

  • Page 96: Isolated Analog Programming Option

    8 ISOLATED ANALOG PROGRAMMING OPTION Introduction Isolated Analog Programming is an internal Option Card for analog programming of the Genesys™ power supply series. The option is factory installed and cannot be obtained with a GPIB (IEEE-488) Interface. Output Voltage and Output Current can be programmed and readback through optically isolated signals which are isolated from all other ground references in the power supply.

  • Page 97: Isolated Programming & Monitoring Connector

    Isolated Programming & Monitoring Connector Refer to Table 8-1 for detailed description of the rear panel Isolated Programming & Monitoring connector. To provide the lowest noise performance, it is recommended to use shielded-twisted pair wiring. Refer to Fig.8-1 for description of the Isolated Analog Programming & Monitoring connector. Isolated programming plug P/N: MC1.5/8-ST-3.81, Phoenix.

  • Page 98: Setup And Operating Instructions

    Setup and Operating Instructions CAUTION To prevent damage to the unit, do not program the output voltage and current to higher than the power supply rating. 8.4.1 Setting up the Power Supply for 0-5V/0-10V Isolated Programming and Monitoring Perform the following procedure to configure the power supply: 1.

  • Page 99: Maintenance

    In case of failure, unusual or erratic operation of the unit, contact a TDK-Lambda Americas Inc. sales or service facility nearest you. Please refer to the TDK-Lambda Americas Inc. sales offices addresses listing on the back cover of this User’s Manual.
  • Page 100 Table 9-1: Troubleshooting guide SYMPTOM CHECK ACTION Is the AC power cord defective? Check continuity, replace if necessary. No output. All displays and indicators are blank. Is the AC input voltage within Check AC input voltage. Connect range? to appropriate voltage source. Output is present momentarily but Does the AC source voltage sag Check AC input voltage.

  • Page 101: Fuse Rating

    Fuse Rating There are no user replaceable fuses in the power supply. Internal fuses are sized for fault protection and if a fuse was opened, it would indicate that service is required. Fuse replacement should be made by qualified technical personnel. Refer to Table 9-2 for a listing of the fuses.

This manual is also suitable for:
