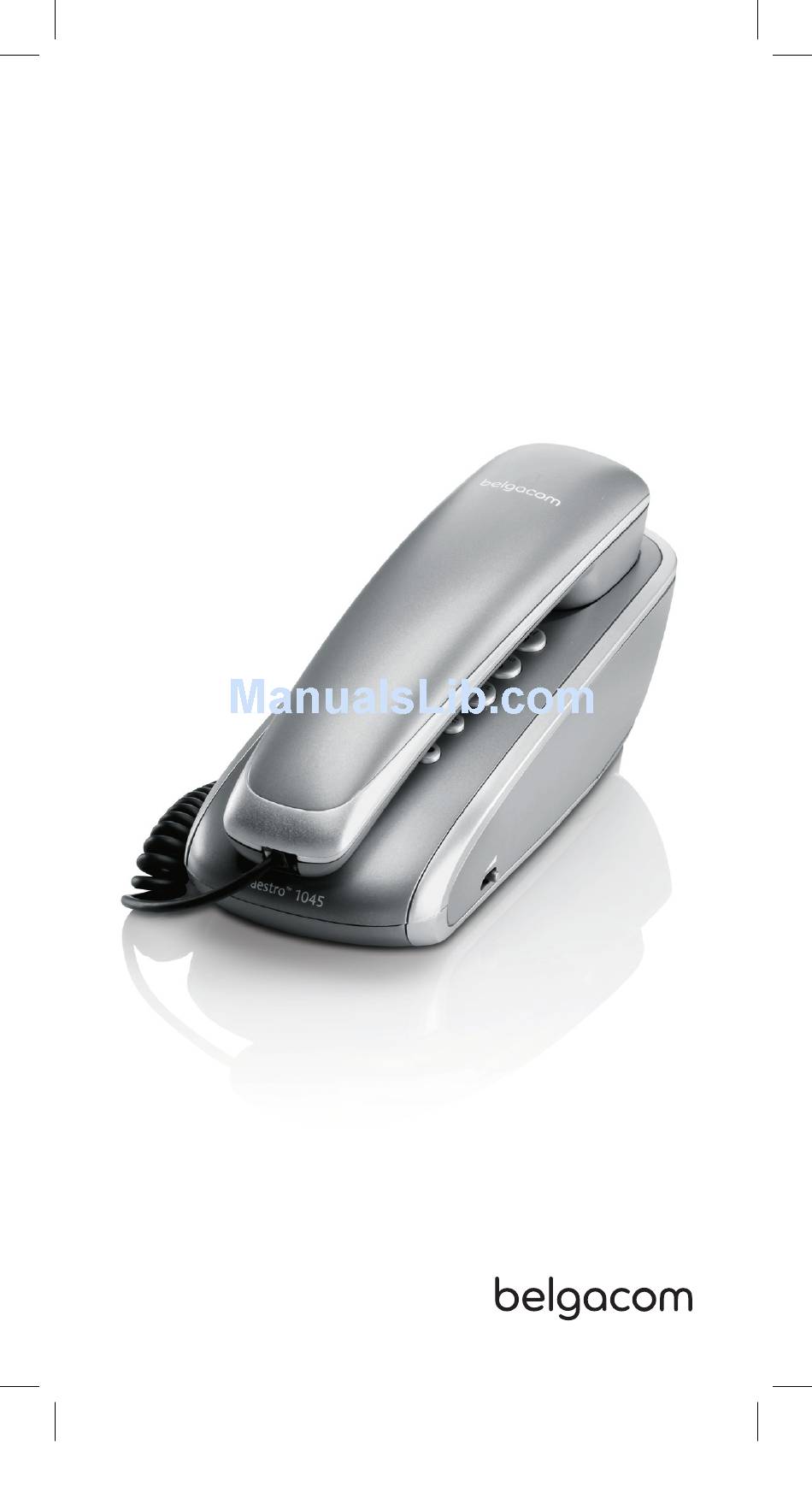

Page 1: User Manual
Belgacom Maestro 1045 User manual 2_Manuel_Maestro1045.indd 4 7/30/08 4:27:55 PM... -
Page 2: Table Of Contents
Overview of the Maestro 1045 . . . . . . . . . . . . . . . . . . -
Page 3: Introduction
Introduction Thank you for choosing the Belgacom Maestro 045, a telephone that can be used at home and in the office . This telephone has been designed for connection to the ana- logue telephone network of Belgacom . -
Page 4: Contents Of The Box
Contents of the box We advise you to check the contents of the box before installing the telephone . These are the contents: Receiver Telephone base Line cord 5-pin plug Coiled cord – 2 screws and 2 plugs – User manual If you find that any of the parts are missing, please return the telephone in its box to the Teleboetiek shop, and show your receipt . -
Page 5: Overview Of The Maestro 1045

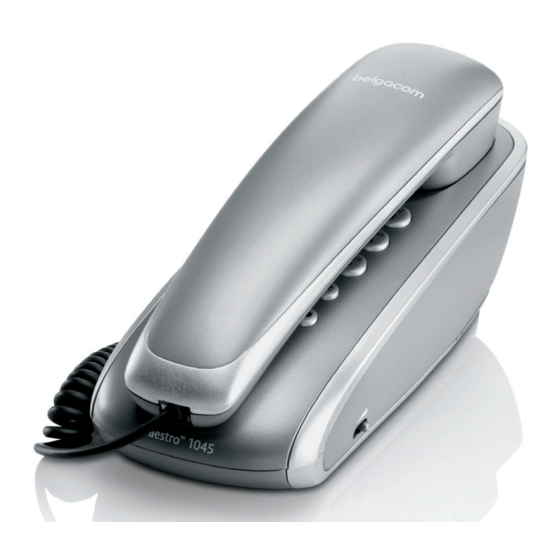

Overview of the Maestro 045 Receiver Earpiece Suspension point on receiver for wall mounting Microphone (mouthpiece) Connection for coiled cord Telephone base, top Receiver contact Suspension clip on receiver for wall mounting Microphone off/on Flash key (switch between conversations, call waiting, put through) Last number redial... - Page 6 Telephone base, side Sound level switch Telephone base, underside Suspension section with suspension points for wall mounting Cord guide for line cord Connection point for line cord Connection point for coiled cord Ring tone volume switch: high/low Cord guide for coiled cord...
-
Page 7: Installing The Telephone
Installing the telephone Safety instructions Do not use the telephone in humid or dusty conditions, a gas-logged environment or an environment in which the telephone would come into contact with water . Do not expose the telephone to sunrays or other heat sources . -
Page 8: Mounting The Telephone On The Wall
Guide the cords through the cord guides at the bottom of the telephone base . Plug the 5-pin plug into the telephone socket . Pick up the receiver and check for a dialling tone . > The telephone is now ready for use . Mounting the telephone on the wall Use a screwdriver to turn the suspension clip in the receiver holder on the telephone base . - Page 9 > You will hear a click to indicate it has come loose . Picture 2: remove suspension section Turn the section over and place it in the slots in the centre of the telephone base (picture ) . > You will hear a click to indicate it is secured . Picture : attach suspension section Now carefully slide the suspension points of the tele- phone base across the 2 screws until the base is prop-...
-
Page 10: Making Calls
Release the key to reactivate the microphone . Flash key (calibrated interruption) Your Maestro 045 supports the Belgacom Comfort Services, such as accepting a second call, call waiting, and a conver- sation between three callers (conference call) . You can make use of these services by means of the key . -
Page 11: Personal Settings
Personal settings Setting the ring tone Use the switch on the bottom of the telephone base to change the ring tone volume to high or low . Setting the volume Use the switch on the right side of the telephone base to change the receiver’s sound level during a call ( settings) . -
Page 12: Troubleshooting
Troubleshooting What to do in the event of malfunctions If there is no dialling tone or if you are unable to make a call, follow the instruction given below: Check whether the telephone has been installed cor- rectly (see page 6) . Check for damage to the line cord . -
Page 13: Repairs
Repairs If you are unable to solve the problem, you can take the entire telephone set to a Teleboetiek shop . Also bring the completed warranty card and your receipt if the telephone is still within its warranty period . You can also call Belga- com customer services . -
Page 14: Technical Details
Weight 45 grams Dialling method Tone dialling Network The Maestro 045 functions on the analogue network (PSTN) of Belgacom . Number redial Last dialled number, subject to a maximum of 2 characters Sound level of receiver Adjustable Flash button/putting Flash signals... -
Page 15: Declaration Of Conformity
Declaration of comformity... -
Page 16: Guarantee Terms
Guarantee terms The Equipment you have bought has been carefully select- ed by Belgacom and is covered by a two-year warranty on spare parts and labor in the event of any material or manu- facturing defect, unless otherwise specified . The warranty shall be valid from the date on which the equipment is collected or delivered . - Page 17 Equipment . Belgacom shall not be liable for any indirect or immaterial loss sustained by the Customer as a result of the malfunc- tioning of the terminal Equipment, such as any loss of production, revenue or contracts .
- Page 18 Please keep in a safe place Device: Serial number: Date of purchase, replacement or repair (*) Name and address of the buyer: Telephone number of the relevant technical department: Stamp: (*) Please delete as appropriate...
-
Page 20: Wall Mounting
Wall mounting...
