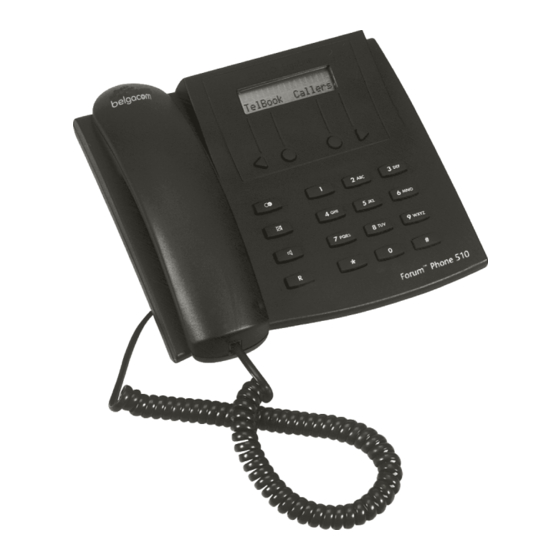

- Page 1 Belgacom Forum™ Forum Phone 510 User Guide...
-
Page 3: Key Functions
Key Functions ≤ ≥ Arrow keys for scrolling through the menu Softkeys for executing the function displayed on the relevant key. Text display: e.g. Keypad for entering digits / telephone num- bers and letters / names. ® Signal Key (Enquiry key) ∑... -
Page 4: Keys And Displays
Signal Key (Enquiry Key) Muting Key Redial Key Your Forum Phone 510 has a two-line display, a numeric keypad, several function keys and four menu control keys. All Forum Phone 510 and ISDN functions and features are controlled using these menu keys, which are explained in the section entitled Menu Con- trol starting on page 5. -
Page 5: Table Of Contents
Using Your Telephone Correct Use / Declaration of Conformity......3 Safety Precautions ............5 Internal Clock..............6 Menu Control ..............7 Making a Call Outgoing Calls Pre-Dialling ..............8 On-Hook Dialling ............9 Last Number Redial............9 Automatic Redial ............10 Automatic Callback............10 Selecting an MSN During Dialling ........12 Telephone Number Restriction.........13 Dialling with a Subaddress ..........14 Enquiry................14... - Page 6 Features Call Filter ..............31 Activating/Deactivating the Call Charge Display ....32 Locking Your Telephone..........33 Direct Call ..............33 Total Lock ..............34 Read Only ..............35 Diverting a Call.............36 Deleting a Call Diversion ..........38 Programming Your Telephone General Terminal Functions MSN Signalling .............40 Deleting the Call Charge Counter ........41 Setting the Call Charge Factor ........42 Setting the PIN .............43 Activating / Deactivating the Function Key Click ....44...
-
Page 7: Using Your Telephone
Using Your Telephone Correct Use / Declaration of Conformity The Forum Phone 510 is a telephone, that gives you easy access to the features of the digital telephone network. The following pages give you a detailed description of all the available fea- tures. - Page 8 Using Your Telephone This product can be operated in all EU member states on an ISDN basic access, which supports the Euro-ISDN protocol DSS1. The CE symbol on the product confirms its conformity to the technical guidelines on user safety and electromagnetic toler- ance, valid at the publication date of the relevant declaration of conformity in accordance with European Directive 99/5/EC.
-
Page 9: Safety Precautions
Using Your Telephone Safety Precautions Please read the user guide and keep it in a safe place. Do not open the terminal. Do not place the terminal in direct sunlight or in the vicinity of other heat sources. Do not install or use the terminal in areas where there is danger of an explosion. -
Page 10: Internal Clock
(especially on new or re-treated furniture) on a non-slip pad. Internal Clock Your Forum Phone 510 has an internal clock. This is necessary to display the date and time in the idle state and to assign the calls entered into the call list with the date and time of their entry. -
Page 11: Menu Control
Using Your Telephone Menu Control Your Forum Phone 510 is operated using interactive menu guid- ance. These menus mean that you can access all the ISDN func- tions using only four keys. The menu control keys are the soft- ≤ ≥... -
Page 12: Making A Call
Making a Call Making a Call Outgoing Calls Pre-Dialling You can enter the telephone number of a desired destination without lifting the handset. The dialling process is prepared and initiated as soon as you lift the handset or press the speaker button. Enter a telephone ≤... -
Page 13: On-Hook Dialling
Last Number Redial You make a call from the Forum Phone 510 in the normal way: Lift the handset and dial a telephone number. You also accept calls in the usual way, by lifting the handset. -
Page 14: Automatic Redial
Your Forum Phone 510 now initiates a redialling attempt every 90 seconds, for a maximum of five attempts. If dialling is suc- cessful (i.e. your call gets through), your Forum Phone 510 rings as it would for an incoming call. To terminate autodial, press... - Page 15 Making a Call NB: If the "Callback" function is unavailable, "Callback" does not appear as a softkey. * For further information about callback calls please contact your network operator.
-
Page 16: Selecting An Msn During Dialling
Making a Call Selecting an MSN During Dialling When you make a call your Forum Phone 510 sends your tele- phone number (one of your MSNs) to the dialled subscriber. You can select which MSN is sent when pre-dialling.* First enter the destination telephone number or select this from the telephone book, redial or call list. -
Page 17: Telephone Number Restriction
Making a Call Telephone Number Restriction When you make a call your Forum Phone 510 sends your tele- phone number (one of your MSNs) to the dialled subscriber. If you do not want this to happen you can restrict this transmis- sion on a given occasion.*... -
Page 18: Dialling With A Subaddress
Making a Call Dialling with a Subaddress In order to use certain services it may be necessary to transmit a subaddress in addition to the telephone number. This subad- dress is transmitted to the opposite terminal during dialling for evaluation by the dialled terminal. SubAddr First enter the telephone number. -
Page 19: Handset Volume
Making a Call Handset Volume Volume Lift the handset and press the softkey to set the vol- ume. Now set the desired volume with the arrow keys. Press the softkey. When you replace the handset the original setting is restored. Please note that the handset volume can only be set when the speaker is deactivated. -
Page 20: Incoming Calls
Incoming Calls Incoming Calls In the case of the Forum Phone 510 you accept incoming calls in the normal way by lifting the handset. You can also reject or deflect calls, as described in the sections entitled "Rejecting a Call" or "Deflecting a Call". As your ISDN connection has more than one user channel, other calls may arrive during an existing call. -
Page 21: Rejecting A Call
Incoming Calls Rejecting a Call You can also reject an incoming call. When you receive a call the caller's telephone number appears in the display.* If this tele- phone number is listed in the telephone book of your Forum Phone 510 you will see the caller's name as it appears in the telephone book instead. - Page 22 Incoming Calls When your telephone rings. The caller's telephone number or name appears in the display. While the telephone is ringing the softkey function is visible. Reroute Press the softkey. Now use the arrow keys to select whether to deflect the call to a standard call deflection tele- phone number or to a telephone number from the telephone book.
-
Page 23: Rejecting / Accepting A Waiting Call
Incoming Calls Rejecting / Accepting a Waiting Call If a call comes in for your telephone number while you are mak- ing another call you hear the call waiting tone in the handset; in addition, call waiting appears in the display. Reject : option not to accept this "waiting call"... -
Page 24: Toggling
Incoming Calls Toggling When you are making a call and another call is being held you can alternate between the lines (toggling). You are making a call. Another call is being held. Press the ® Shuttle softkey or the key. You are now connected with the other subscriber. -
Page 25: Ending A Conference Call And Toggling
Incoming Calls Ending a Conference Call and Toggling From a conference call you can return to alternating between the parties (toggling). You are making a three-party conference call. Shuttle Press the softkey. Use the arrow keys to select the party you wish to continue talking to while the other party is held Back press the... -
Page 26: Telephone Book
Making a Call from the Telephone Book In your Forum Phone 510's idle state you can select any of the following menu items using the arrow keys: Callers (Call List): submenu for selecting list entries... -
Page 27: Post-Dialling From The Telephone Book
Telephone Book Post-dialling from the Telephone Book You can also post-dial parts of telephone numbers manually or from the telephone book. This is advisable if you often call different subscribers on a tele- phone system. You can then save the extension numbers of indi- vidual subscribers in the telephone book. -
Page 28: Call List
Call List Call List If you receive a call but do not answer it, your Forum Phone 510 saves the caller's number in the call list if the telephone number has been transmitted. If the telephone number has not been transmitted "Unknown"... - Page 29 Call List Calls which are answered on another terminal on your ISDN line are not displayed in the call list.
-
Page 30: Calling Back From The Call List
Call List Calling Back from the Call List Callers whose telephone numbers are saved in the call list can easily be called back. Callers Press the softkey. The most recent entry in the call list appears. If the telephone number is listed in the telephone book, the caller's name appears instead. -
Page 31: Notebook
Notebook Notebook Using the notebook function you can note a telephone number during a call. The noted number is entered into the telephone book, to which you can later add a name. You can also save the caller's telephone number in the notebook. Noting a Telephone Number You are making a call and want to note a telephone number. -
Page 32: Special Functions
Special Functions Special Functions Parking a Call You can "park" a call you are currently making if necessary. A parked call is not disconnected and you can continue it later. You can also go to another telephone which is connected to the same ISDN line, and continue the parked call there. -
Page 33: Continuing A Parked Call
Special Functions Continuing a Parked Call You can continue a parked call at any time. Untpark Lift the handset and press the softkey to continue a parked call. If the message "all trunks busy" (both B-channels busy, one by the parked call) appears in the display after lifting the handset, you can also unpark the call on-hook using "Menu –... -
Page 34: Dtmf Post-Dialling / Remote Answerphone Access
Press the digit keys. The relevant DTMF signals are produced. Keypad Protocol If you press the digit keys during a call your Forum Phone 510 produces the standardised DTMF signals used for controlling answerphones or entering messages for paging services. You can, however, also convert the keys to the keypad protocol, e.g. -
Page 35: Features
Features Features Your Forum Phone 510 and your ISDN line offer many functions above and beyond simply making calls. Some of these features are network services, e.g. call forwarding, conference calls, dis- play of caller telephone numbers, etc., which you can use on your terminal. -
Page 36: Activating/Deactivating The Call Charge Display
If you receive call charge information you have the option of deactivating the call charge display on your Forum Phone 510 either during or after a call. Even when the display is deactivat- ed your terminal continues to collect call charge information on its four call charge counters;... -
Page 37: Locking Your Telephone
Lock and Read Only is described on the following pages. Direct Call For the Direct Call option you program in a telephone number. If the lock is active your Forum Phone 510 automatically dials this number when a key is pressed. DirCall Select the softkey with the variant. -
Page 38: Total Lock
Features Direct Call is activated. The idle display now no longer shows the menu: the first line displays the number, which is dialled when a key is pressed. To Release deactivate Direct Call press the softkey. Now enter your PIN. To deactivate Direct Call you must enter your PIN, even if the basic setting "0000"... -
Page 39: Read Only
Features Read Only With Read Only the terminal is also locked telephone numbers to prevent from being dialled. You can, however, enter exceptions from the lock. PartLck Select the softkey with the variant. Now enter up to three exceptions from the locking function. ≥... -
Page 40: Diverting A Call
Features Diverting a Call Calls to each of your MSNs can be diverted to another telephone number if desired. For further details on this ISDN function please contact your network operator. Normally, three call diversion variants are possible: unconditional, on busy, or delayed. NB: Call diversion is an automatic function of your Forum Phone 510 together with the ISDN. - Page 41 ISDN line is busy, i.e. if both user channels are in use. You can set up call diversions for each of the three MSNs which can be assigned to your Forum Phone 510; each of these call diversions can have a different destination telephone number and a different variant (unconditional, delayed, on busy).
-
Page 42: Deleting A Call Diversion
Features Deleting a Call Diversion Menu Press the softkey. ISDN Using the arrow keys, call the function up on the display and then press the corresponding softkey. Continu Select Call Diversion with the softkey. Now use the ≤ ≥ arrow keys to select the MSN you want to delete the call diversion for and press the softkey. -
Page 43: Programming Your Telephone
Your Forum Phone 510 has been preprogrammed to allow you to make calls immediately. To benefit from the full range of ISDN and Forum Phone 510 features, however, you must carry out your own settings where necessary. All settings saved in the terminal are referred to as "Programming". -
Page 44: Terminal Functions
Terminal Functions Terminal Functions MSN Signalling Menu Press the softkey. Trminal Using the arrow keys, call the function up on the dis- play and then press the corresponding softkey. Melody Select the softkey. Use the arrow keys to select the MSN for which you want to carry out settings and then press the softkey. -
Page 45: Deleting The Call Charge Counter
Terminal Functions Deleting the Call Charge Counter Your terminal saves all of the call charge information it receives from the ISDN. The call charges are held on four counters: one for each MSN (where programmed) and one "unknown" counter, which is used if you have not programmed a MSN. Each of these counters can be deleted independently. -
Page 46: Setting The Call Charge Factor
Terminal Functions Setting the Call Charge Factor Your Forum Phone 510 stores the connection charges incurred for the terminal. It also receives details from the network about the call charge units incurred.* The following programming is used to set the cost of a unit:... -
Page 47: Setting The Pin
When the fourth digit is entered your Forum Phone 510 automatically adopts the PIN. If the newly entered PIN and the confirmation of the new PIN do not match you will see an error message. In this case the old PIN remains active. -
Page 48: Activating / Deactivating The Function Key Click
Terminal Functions Activating / Deactivating the Function Key Click You have the option of setting your Forum Phone 510 so that the speaker emits a small clicking sound when a key is pressed, which should make entering information easier. Menu Press the softkey. -
Page 49: Setting The Ringer
Terminal Functions Setting the Ringer You can set the tone and volume of the ringer. Two special tone options are available exclusively on this terminal. Menu Press the softkey. Trminal Using the arrow keys, call the function up on the dis- play and then press the corresponding softkey. -
Page 50: Restoring To Factory Settings
Terminal Functions Restoring to Factory Settings If necessary you can restore the terminal to its factory settings. Menu Press the softkey. Trminal Using the arrow keys, call the function up on the dis- play and then press the corresponding softkey. Reset Select the softkey. -
Page 51: Telephone Book
Telephone Book Telephone Book Your Forum Phone 510 can store up to 35 names and telephone numbers in its telephone book. This collection of telephone numbers has three functions: Firstly it makes dialling numbers listed in the telephone book particularly easy. In addition, the assignment of names to tele- phone numbers means that the Forum Phone 510 can display the caller's name instead of his/her telephone number. -
Page 52: Entering Digits And Text
Telephone Book Entering Digits and Text The names for the telephone book are entered using the digit keys. If you press a digit key (several times), the characters listed in the table opposite appear in order. To switch between the two groups of characters (upper and lower case) hold down the rele- vant key for about 1 second. -
Page 53: Deleting The Entire Telephone Book
Telephone Book Enter your PIN (if required). Entry Press the softkey to delete a telephone book entry. The first telephone book entry appears. Use the arrow keys to scroll down to the entry you want to Delete delete and press the softkey. -
Page 54: Last Number Redial
Last Number Redial Last Number Redial Deleting the Last Number Redial List This procedure deletes the contents of the redial list, deleting all five entries. Menu Press the softkey. TelBook Using the arrow keys, call the function up on the dis- play and then press the corresponding softkey. -
Page 55: Main Menu
Main Menu Main Menu TelBook OK Callers Option Delete TelBook HideID/SendID Back Menu ISDN Unpark CWoff/CWon Continu Reroute ProgMSN MSN1 MSN2 MSN3 Trminal Charge HideCh/ShowCh Query Delete Factor Melody (MSN) Volume Sound Lock DirCall on PartLck FullLck NewPIN Reset ClckOff/ClckOn Lang. -
Page 56: Environmental Information
Environmental information • The equipment that you bought has required the extraction and use of natural resources for its production. It may content hazardous substances for the health and the environment. • In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. - Page 58 For more information: Please dial 0800 55 400 Visit us in the Internet at www.belgacom.be/pabx Contact your Belgacom dealer Subject to changes Status 08.2005...
