Section 4 –

Selecting the Operating Mode

Important: This section is important to the
operation of the Uponor Climate Co ˘ ntrol™
Network System. If the proper mode is not
set by the user, the system will not operate
the respective equipment to maintain the
temperatures set by the user. The system will,
however, maintain predetermined minimum
and maximum default temperatures to keep the
home or building from freezing or over heating.
The user can manually set the thermostat to Heat, Cool,
Auto or Auto with Scheduling Enabled modes depending
on which mechanical systems are installed. Following is a
brief description of these modes.
• Off Mode — This mode indicates the thermostat is
off. Heating and cooling equipment will only operate
if the temperature exceeds the freeze- or heat-
protection limits.
• Heat Mode — When activated, this mode supplies
heat to the zone that the thermostat controls
through the radiant floor, forced air and baseboard.
When the current room temperature falls 0.5° below
the setpoint, heat mode becomes activated. The heat
will shut off when the room temperature rises 0.5°
above the setpoint.
• Cool Mode — When activated, this mode supplies
cooling to the zone the thermostat controls through
radiant floor or forced air. When the current room
temperature rises 1.0° above the setpoint, cool mode
is activated. The cooling will shut off when the room
temperature cools to 1.0° below the setpoint. This
function is only permitted if cooling equipment is installed.
• Auto Mode — The thermostat automatically
operates the cooling and heating systems separately
to maintain the current room temperature setpoint.
• Auto with Scheduling Enabled Mode — The
thermostat automatically operates the cooling and
heating systems according to the schedule selected.

Selecting Modes

Use the (+) and (–) buttons to select heat, cool and auto
modes. To toggle between these modes, use the following
procedure:
• Press the mode button once.
• Press the (+) or (–) button for the desired mode as
shown in Figure 4-1.
Uponor Climate Co ˘ ntrol™ Network System Thermostat User Manual
Heat Mode
Auto Mode All Modes Off
Auto with Scheduling Enabled

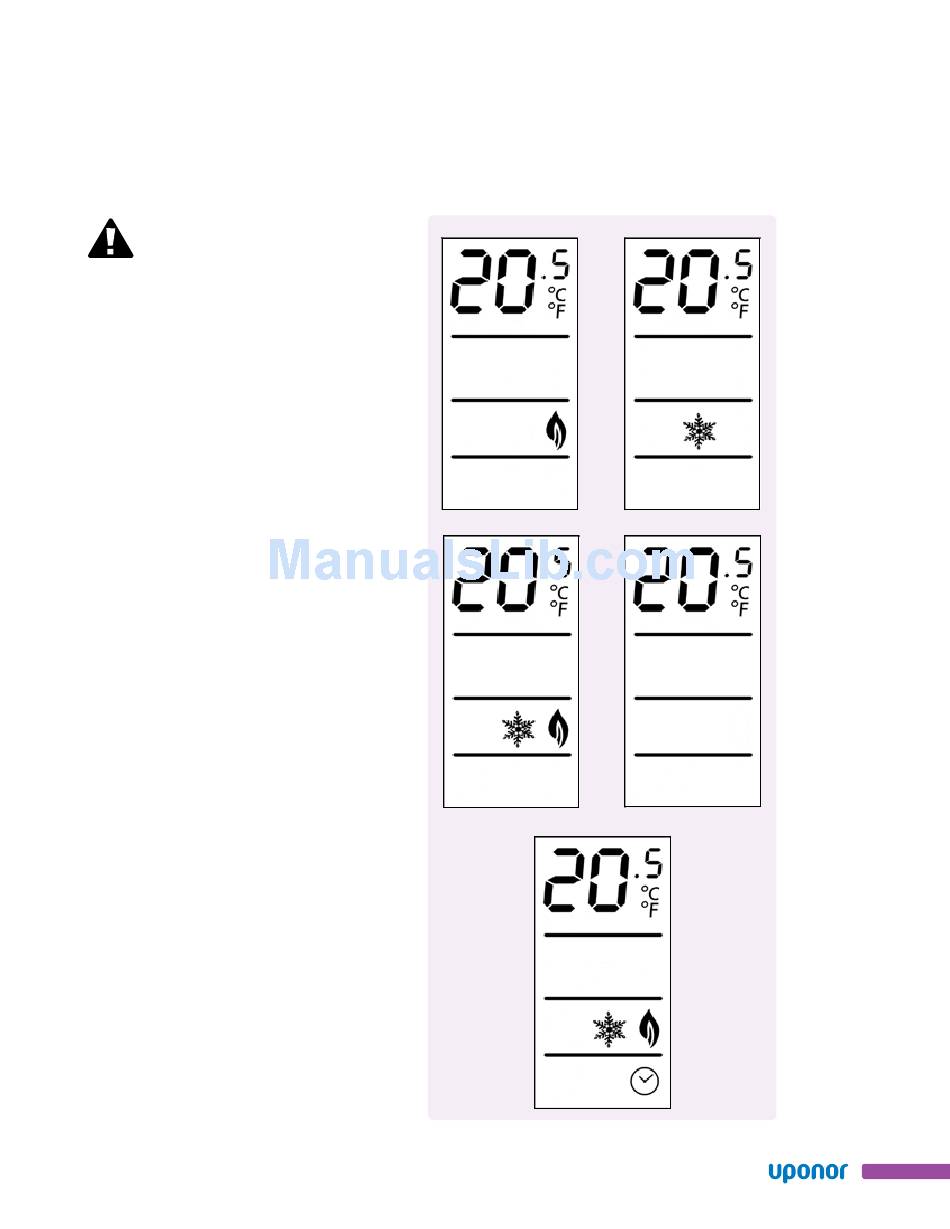

Figure 4-1: Selecting Modes
Cool Mode
9
